Theft-Alarm System

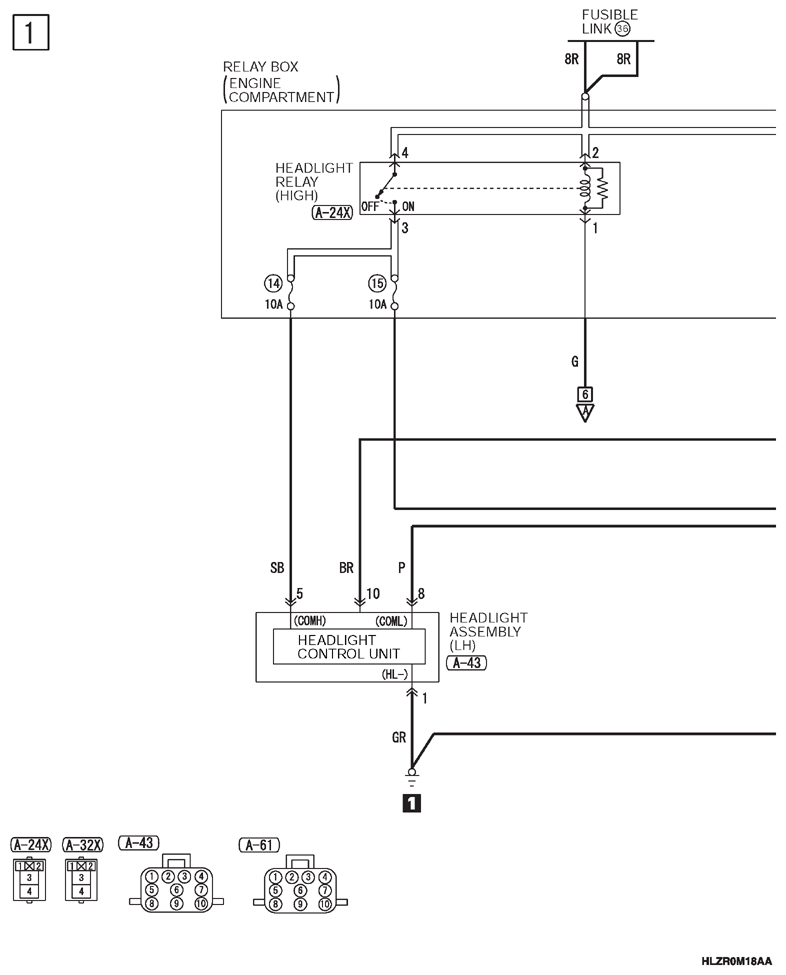

G13346389Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

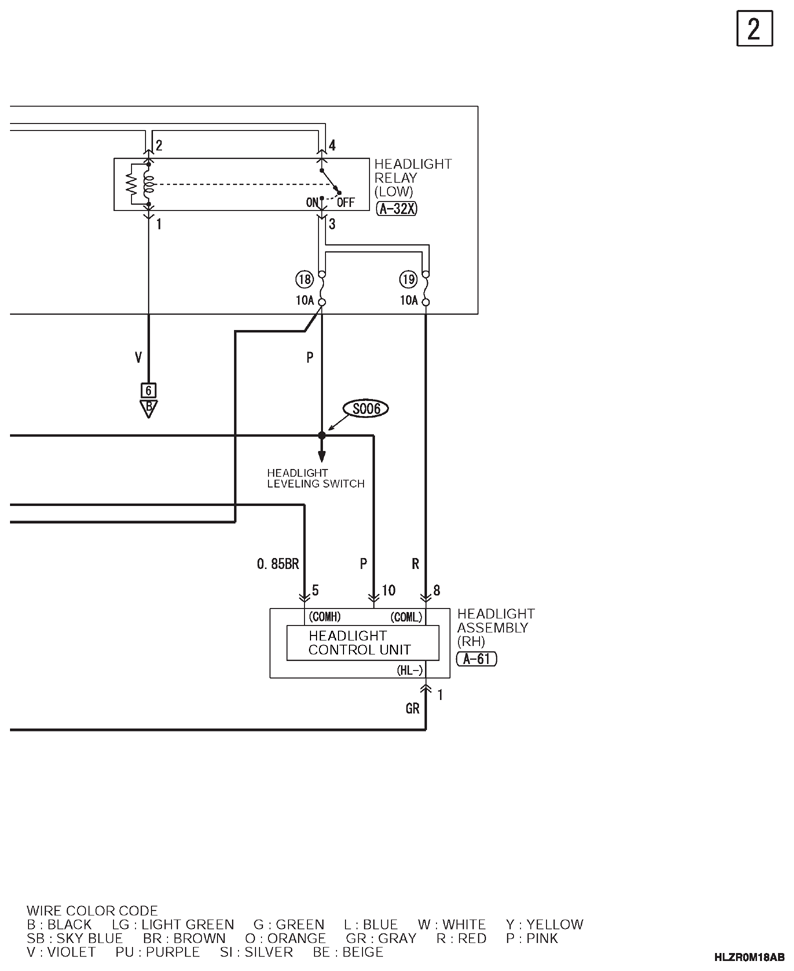

G13346390Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

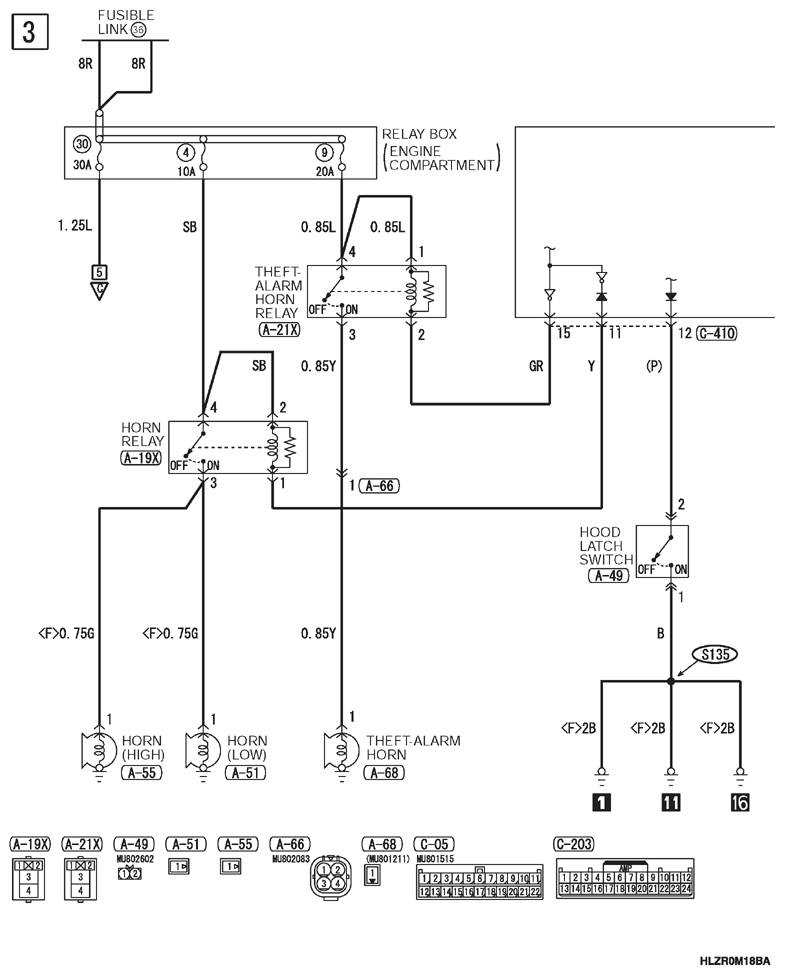

G13346391Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

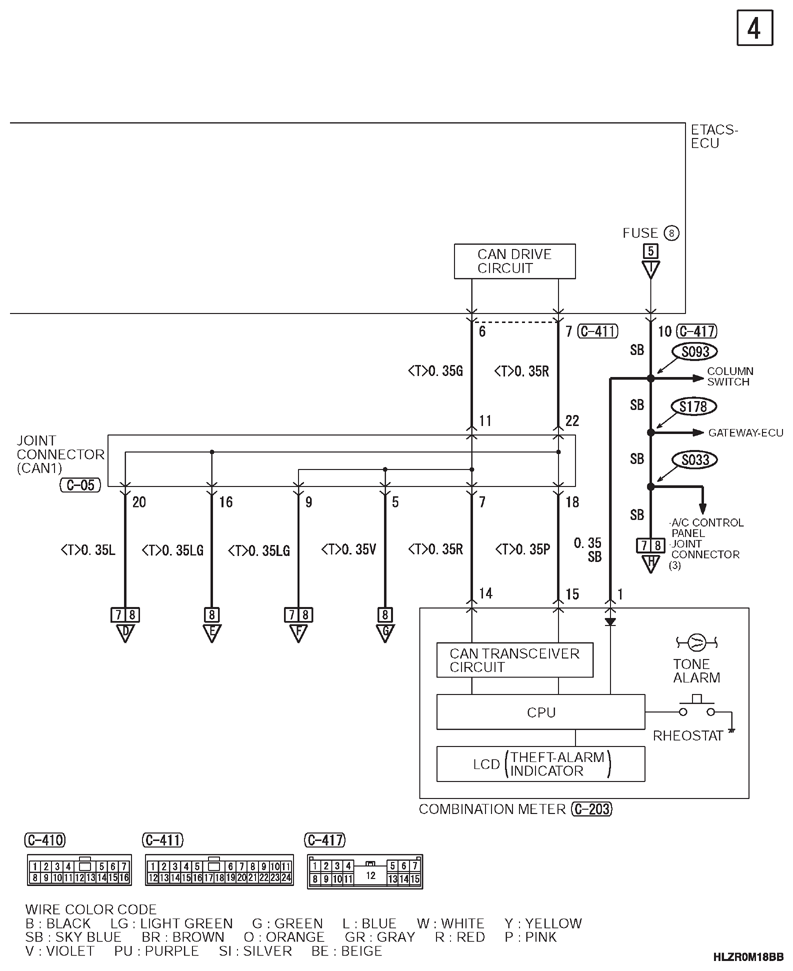

G13346392Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

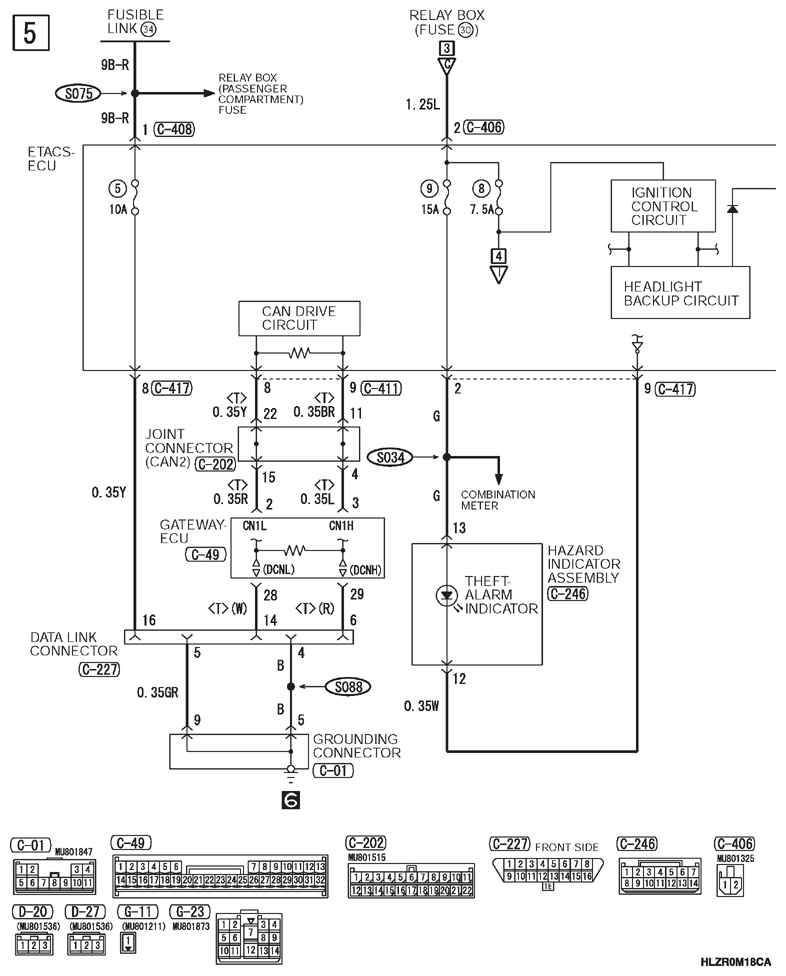

G13346393Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

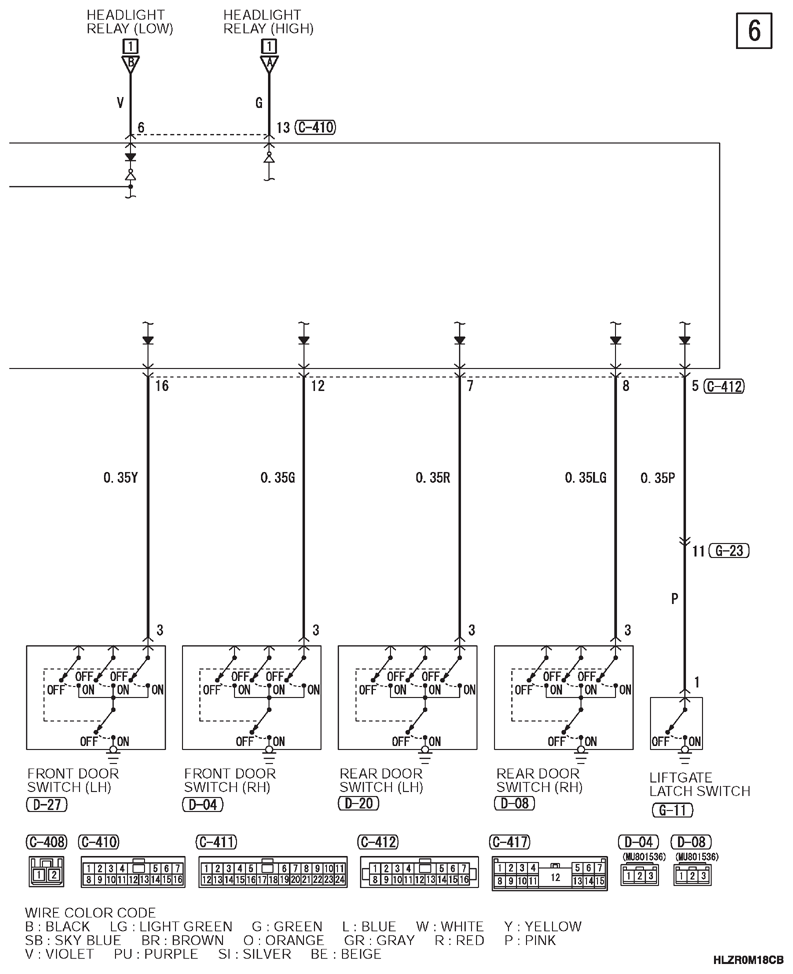

G13346394Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

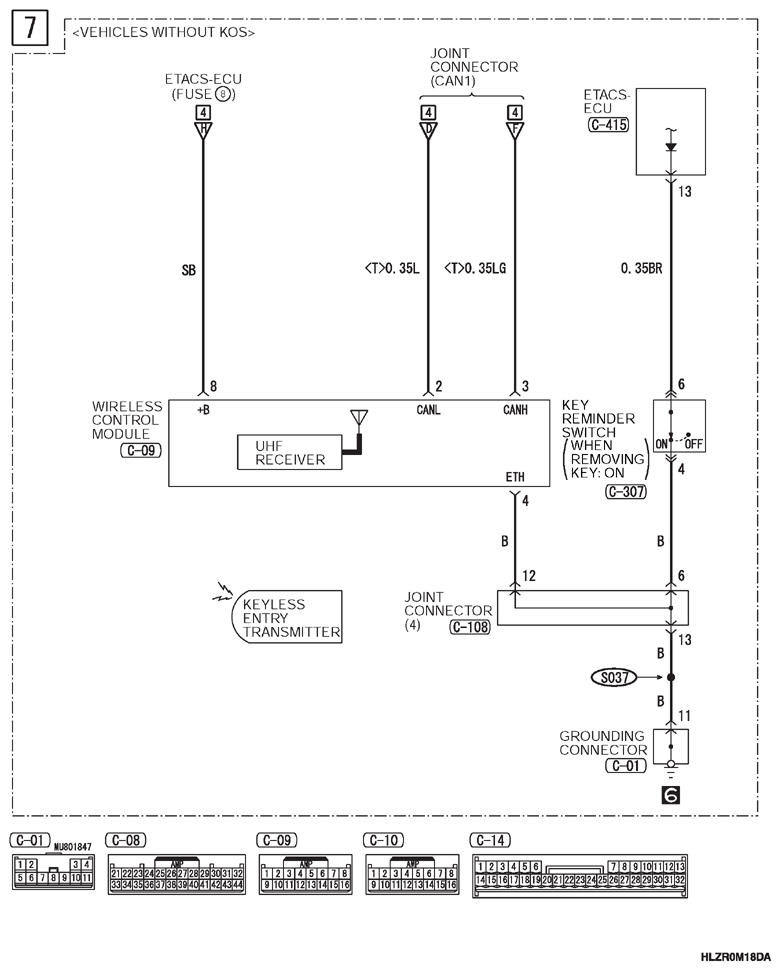

G13346395Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

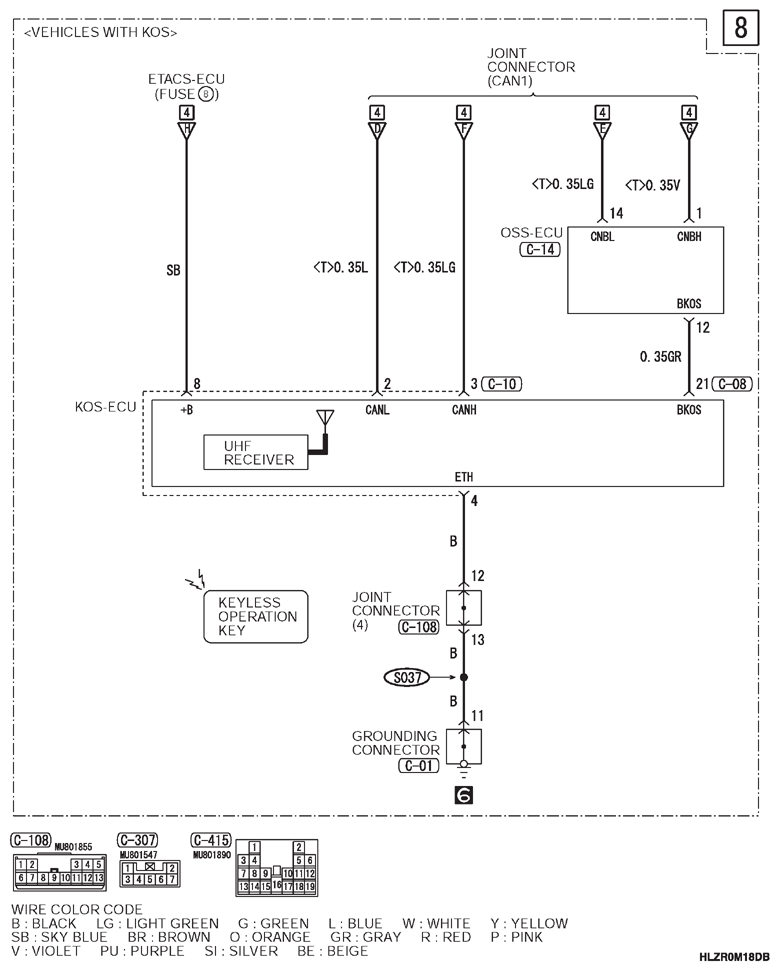

G13346396Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
