Home >> Mitsubishi >> 2021 >> RVR LE >> Repair and Diagnosis >> Engine Performance >> Wiring Diagrams >> Circuit Diagrams >> Stoplight

Circuit Diagrams: Stoplight

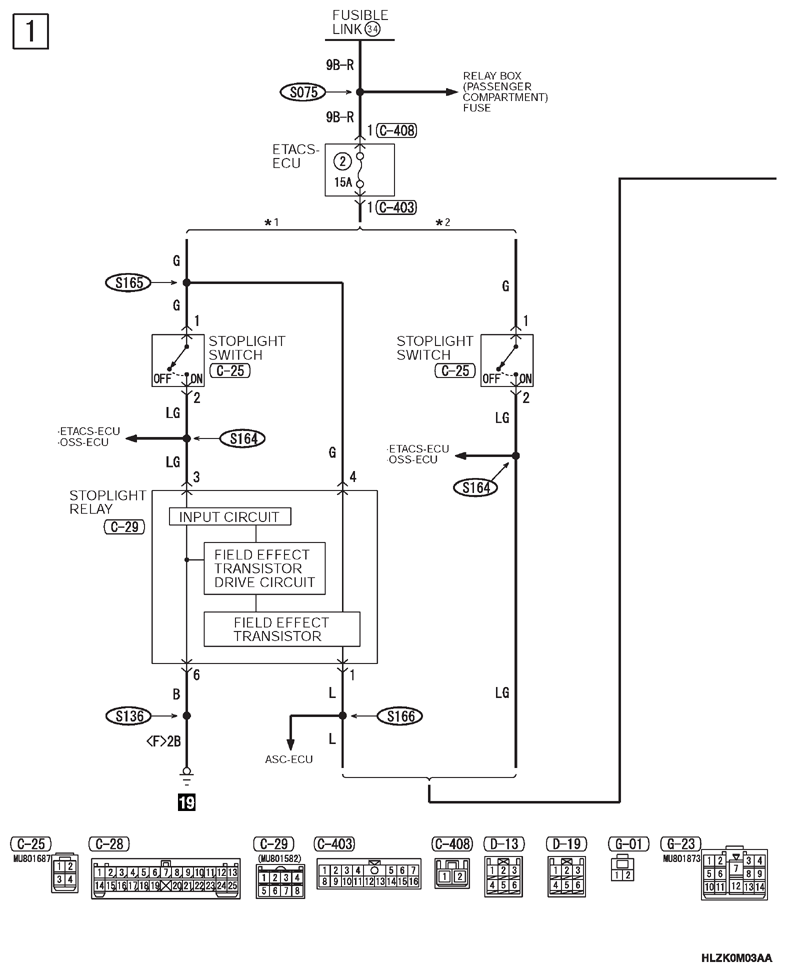

G13346208

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

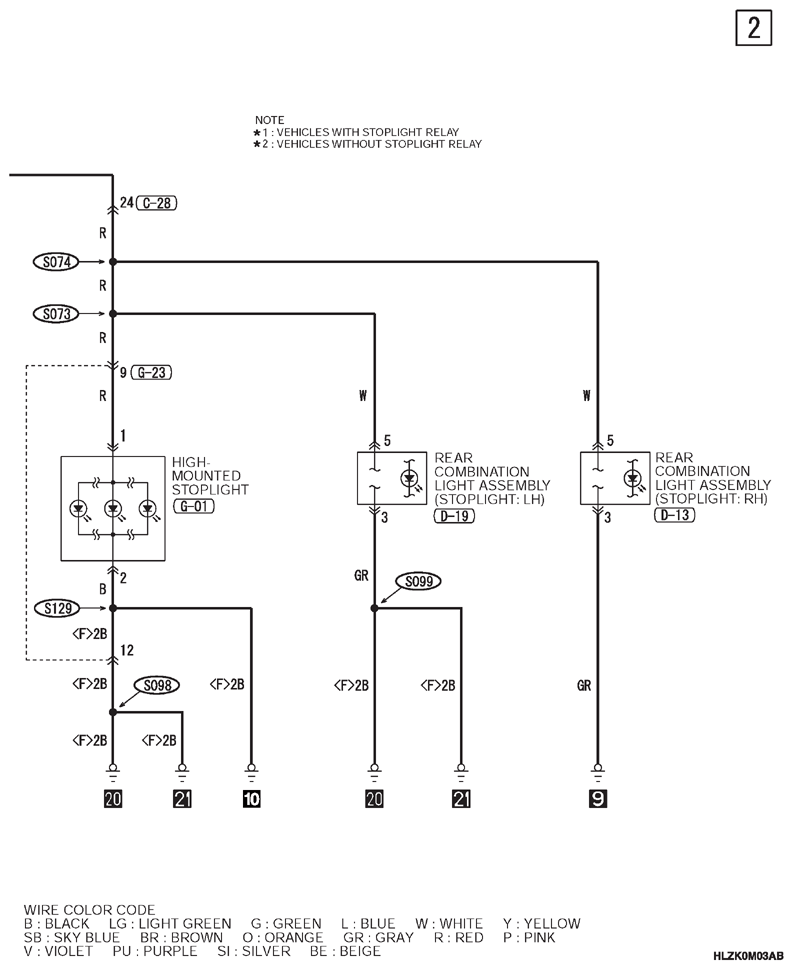

G13346209

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
