Home >> Mitsubishi >> 2021 >> RVR LE >> Repair and Diagnosis >> Engine Performance >> Wiring Diagrams >> Circuit Diagrams >> Shift Lock Mechanism

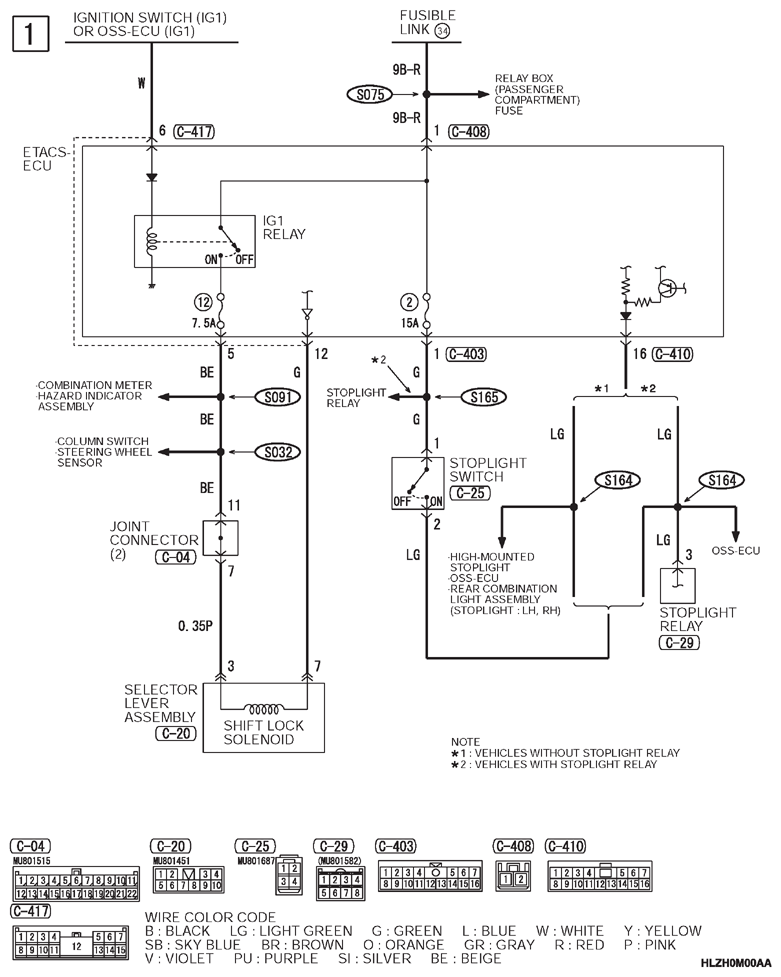

Shift Lock Mechanism

G13346142

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
