Home >> Mitsubishi >> 2021 >> RVR LE >> Repair and Diagnosis >> Engine Performance >> Wiring Diagrams >> Circuit Diagrams >> Rear View Camera

Rear View Camera

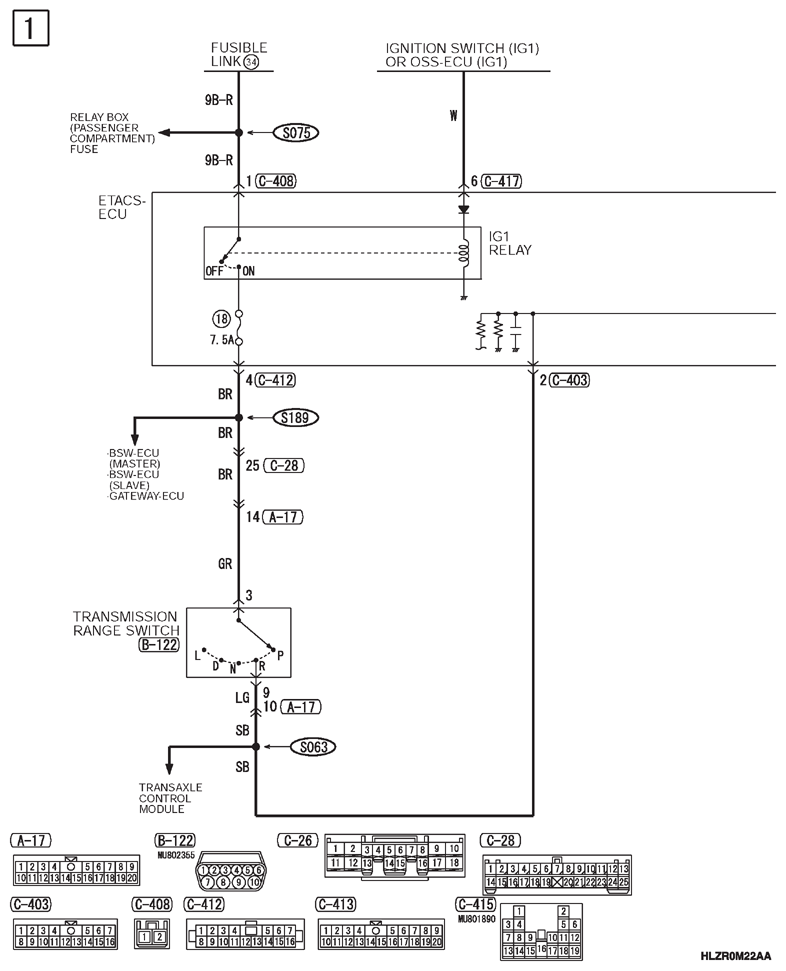

G13346407Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
G13346407Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

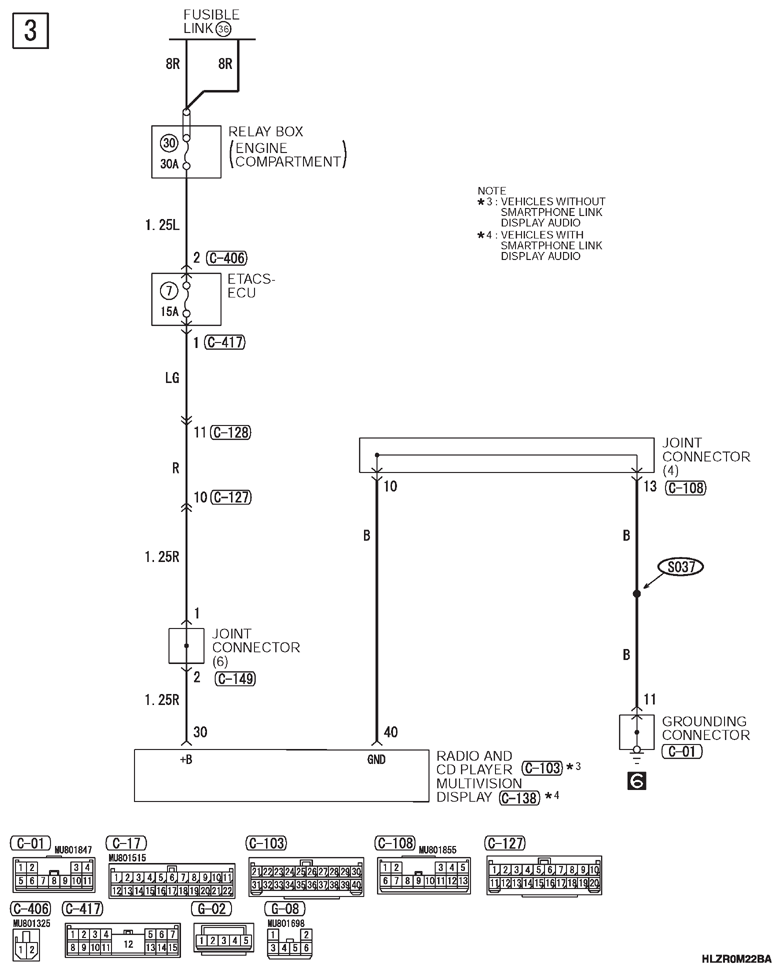

G13346409Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

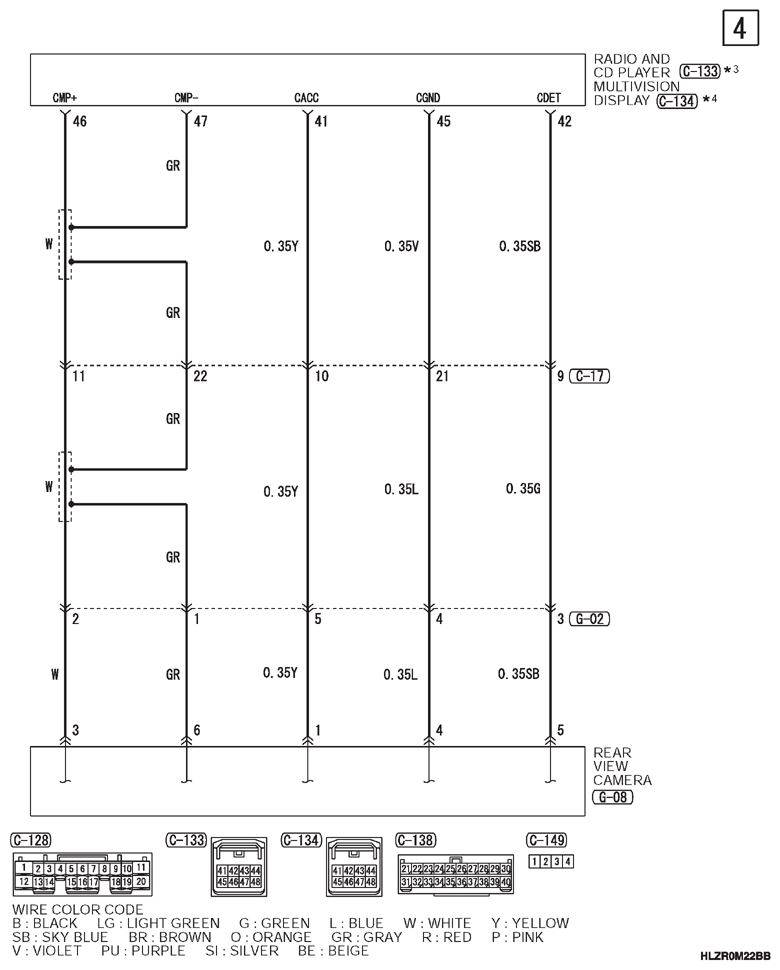

G13346410Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
