Circuit Diagrams: Headlight

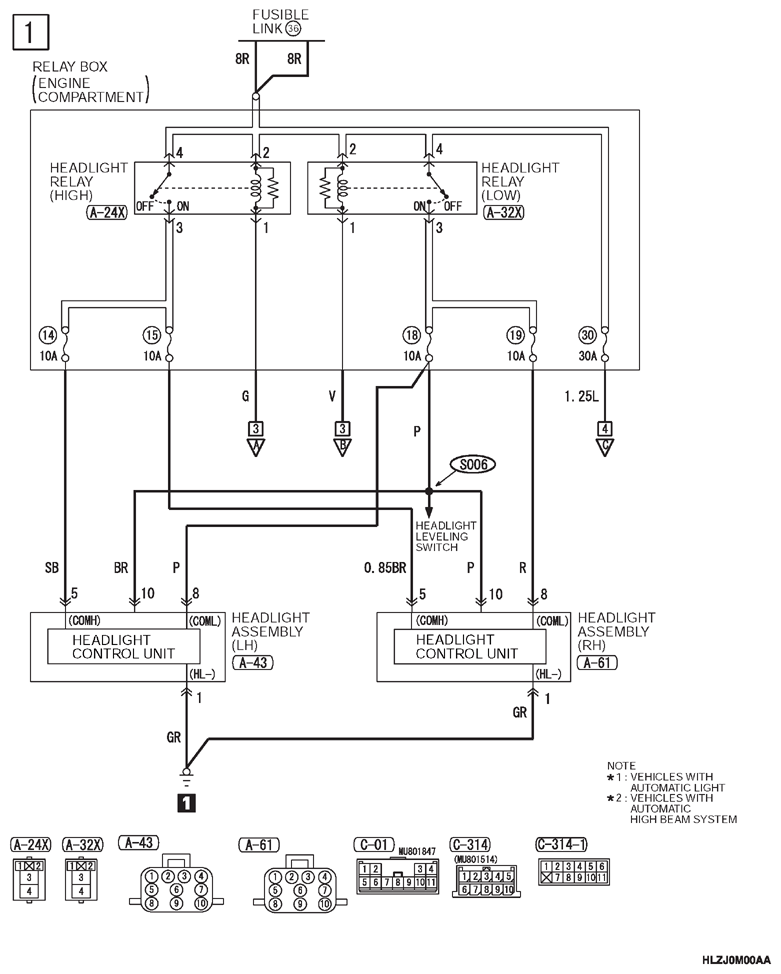

G13346153Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

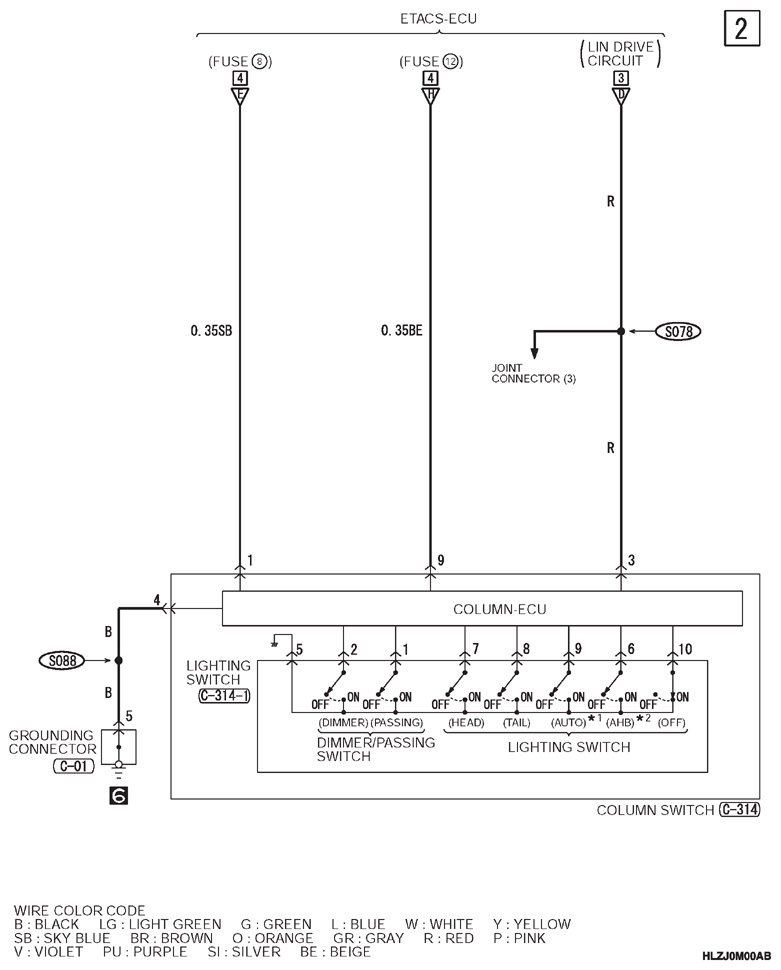

G13346154Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

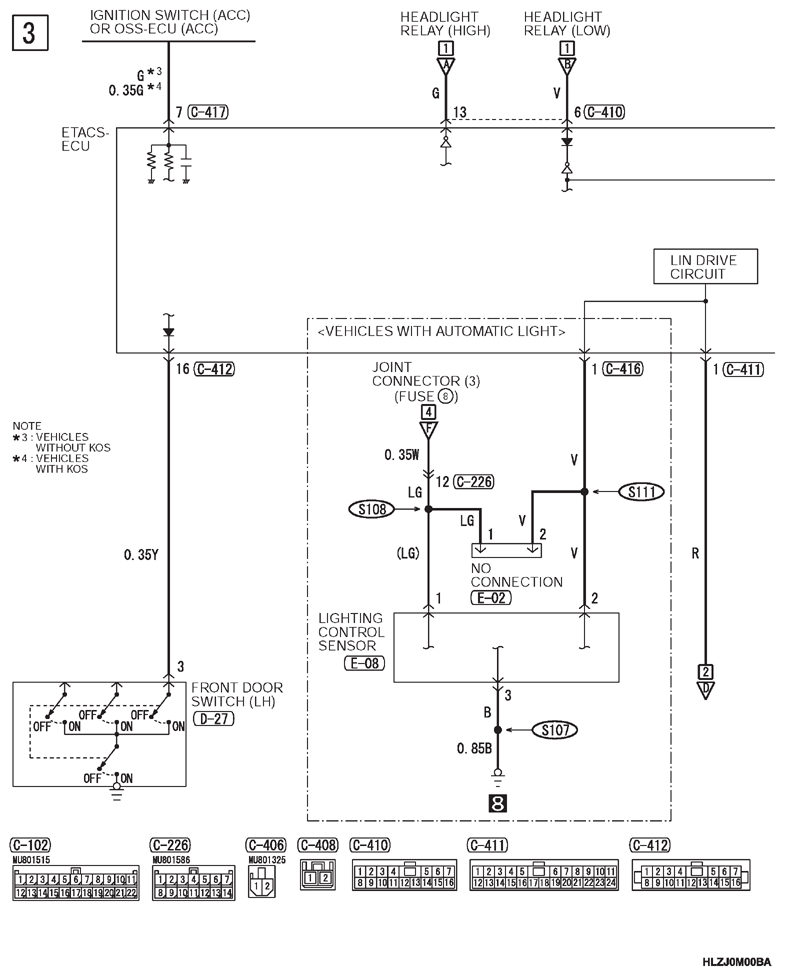

G13346155Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

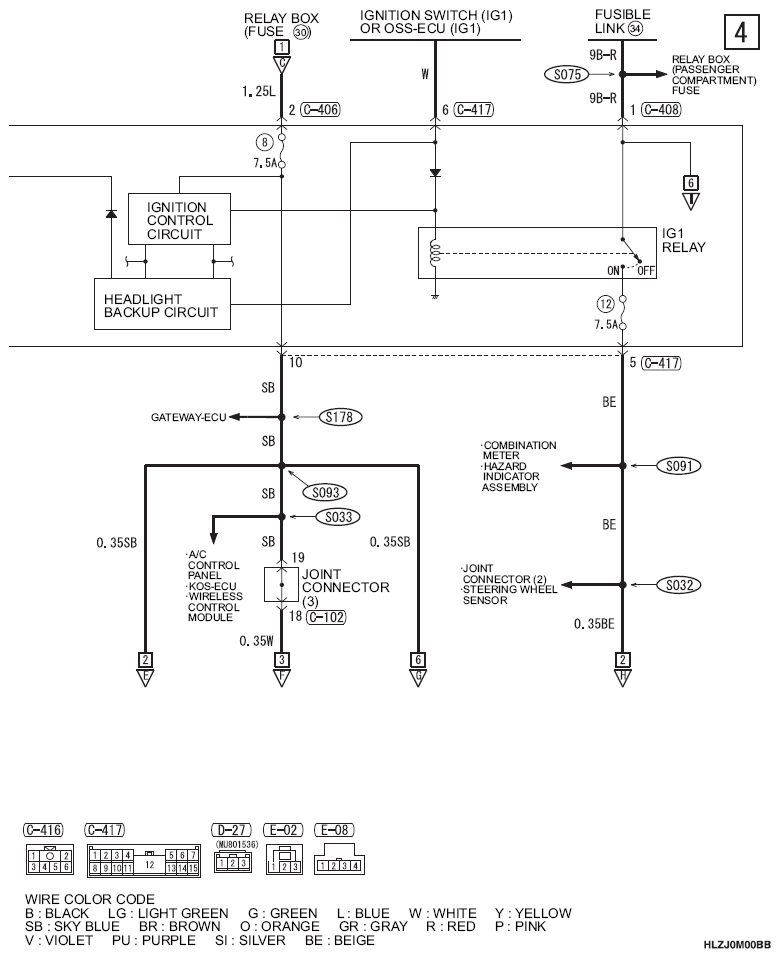

G14220203Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

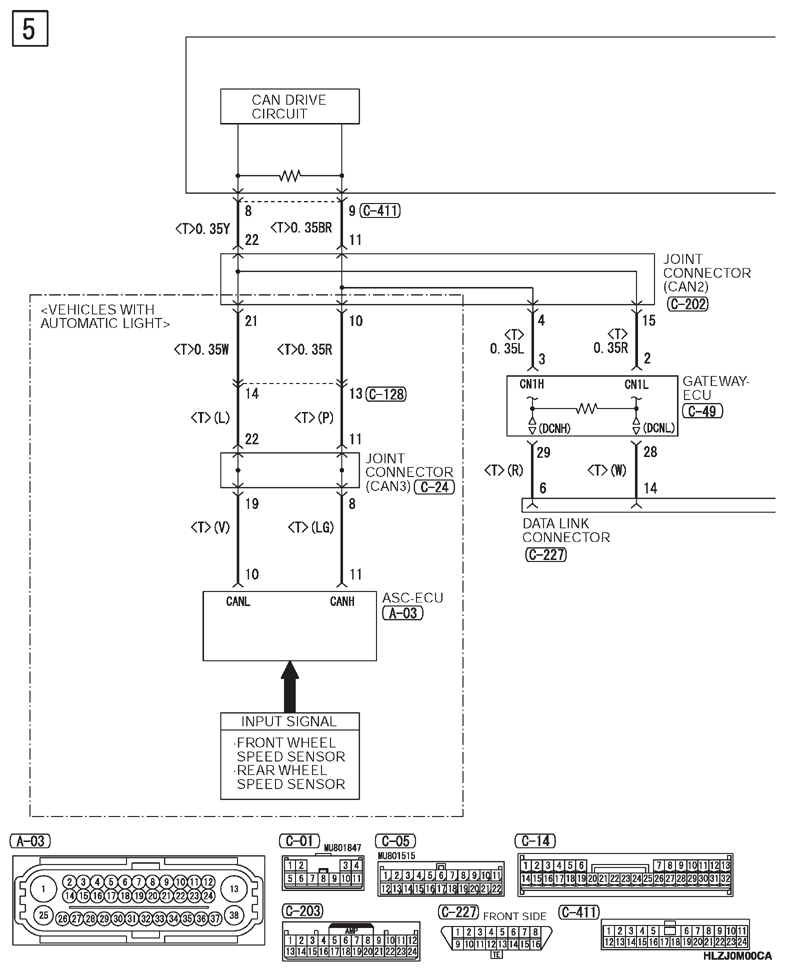

G13346157Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

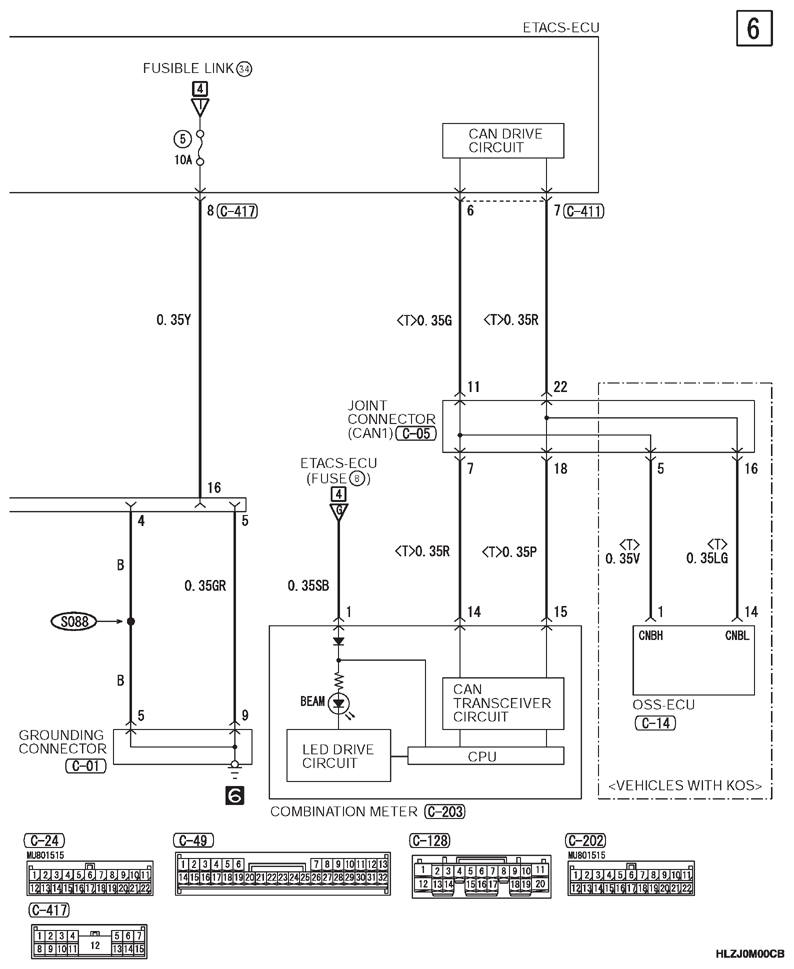

G13346158Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
