Headlight Leveling System

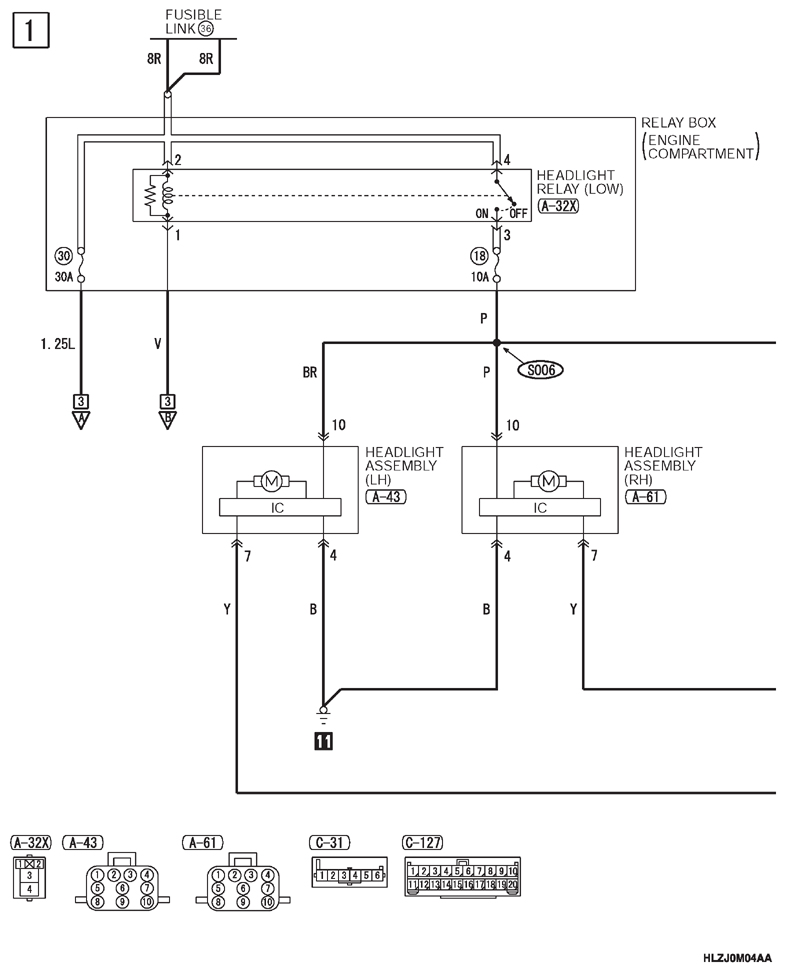

G13346175Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

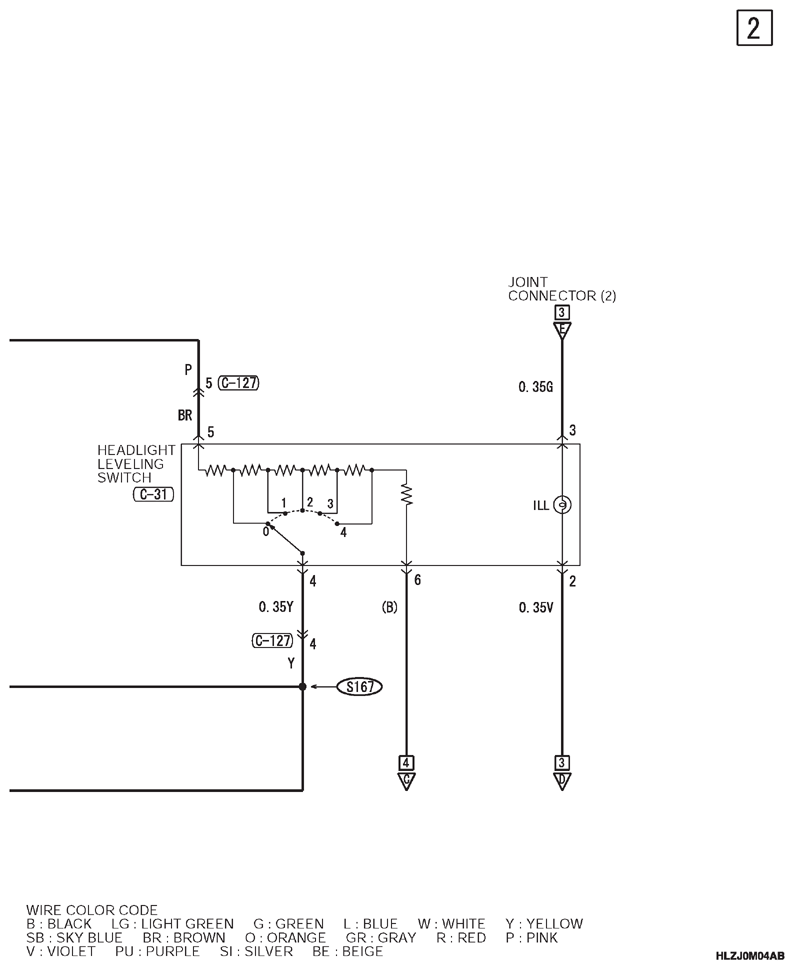

G13346176Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

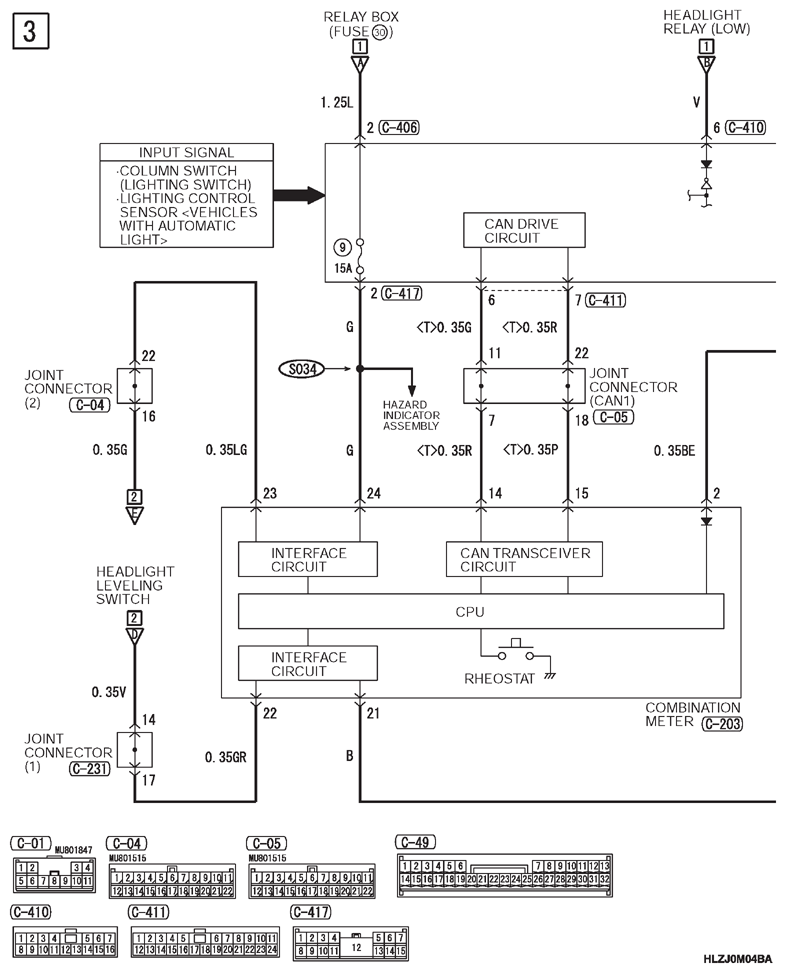

G13346177Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

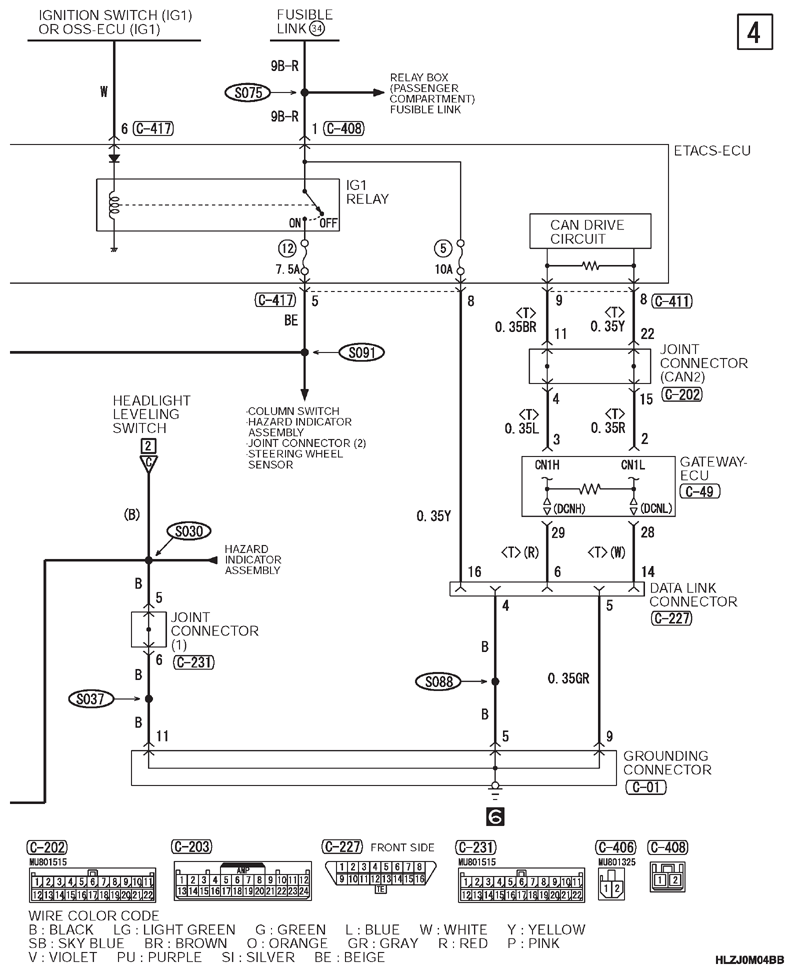

G13346178Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
