Cooling System

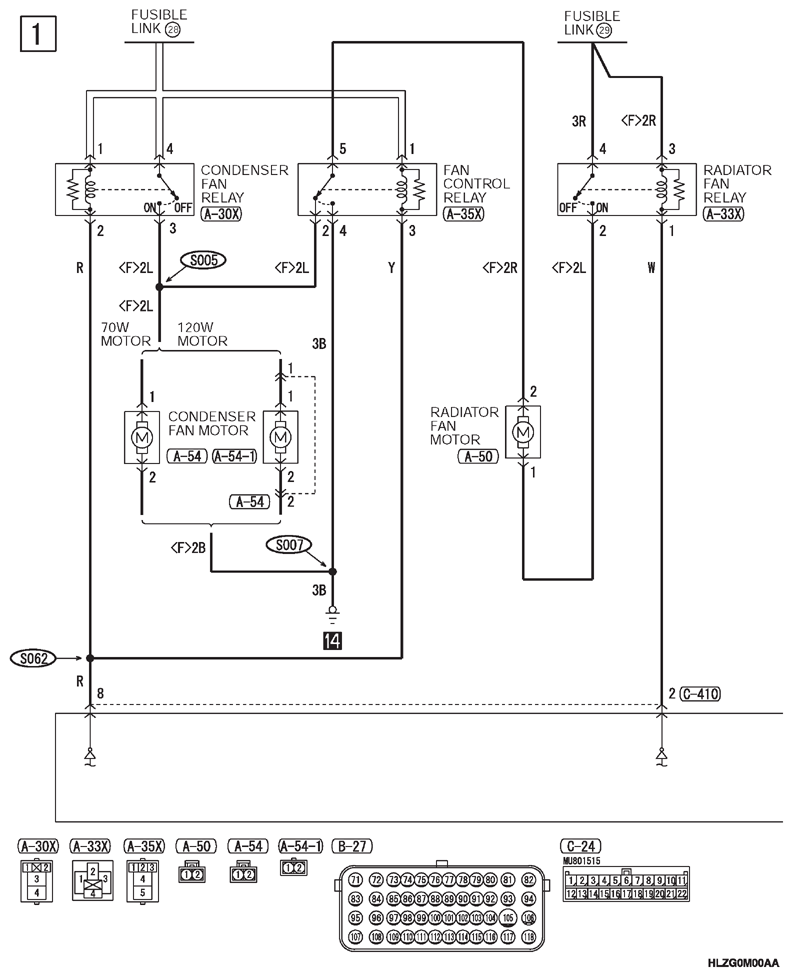

G13346138

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

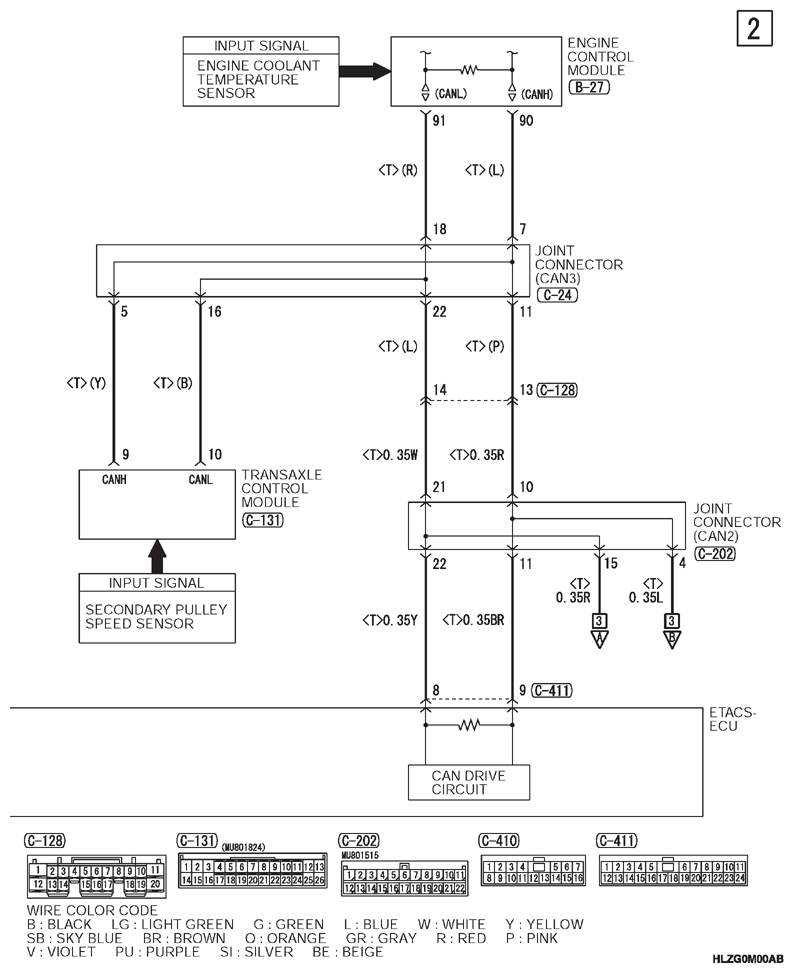

G13346139

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

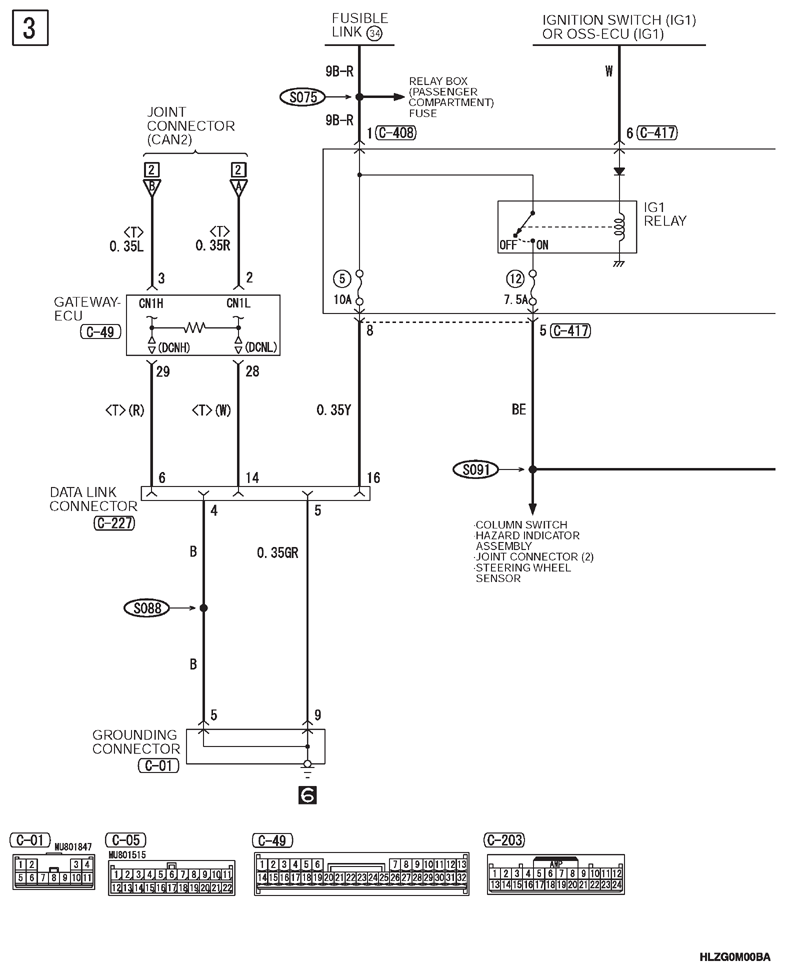

G13346140

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

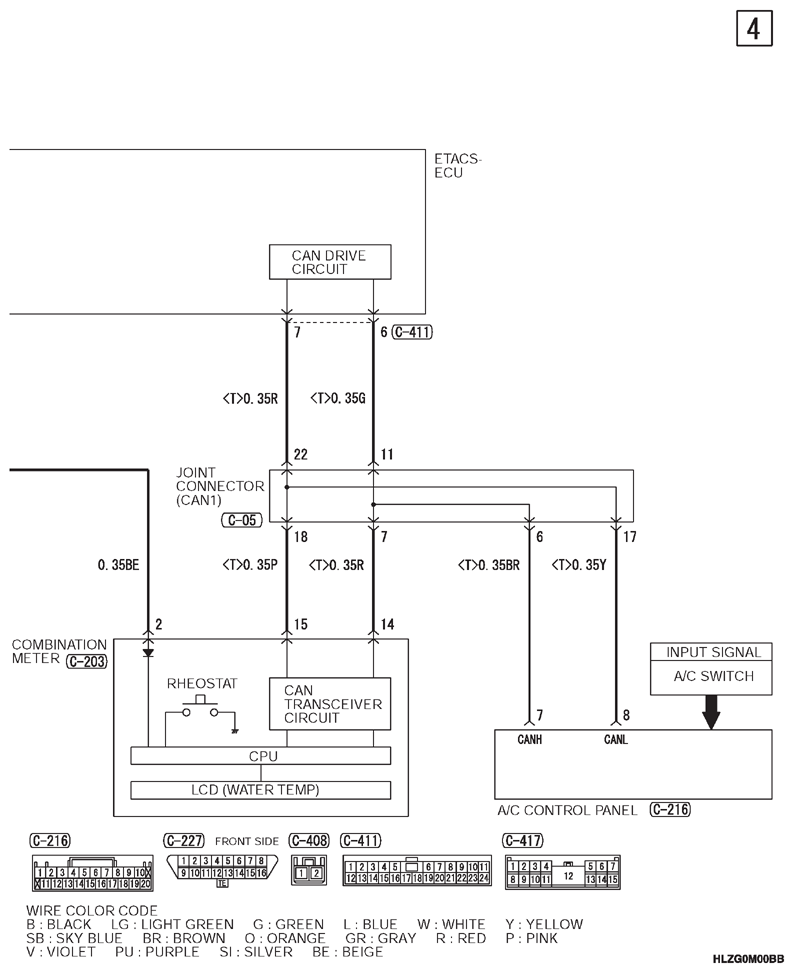

G13346141

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
