Controller Area Network (Can)

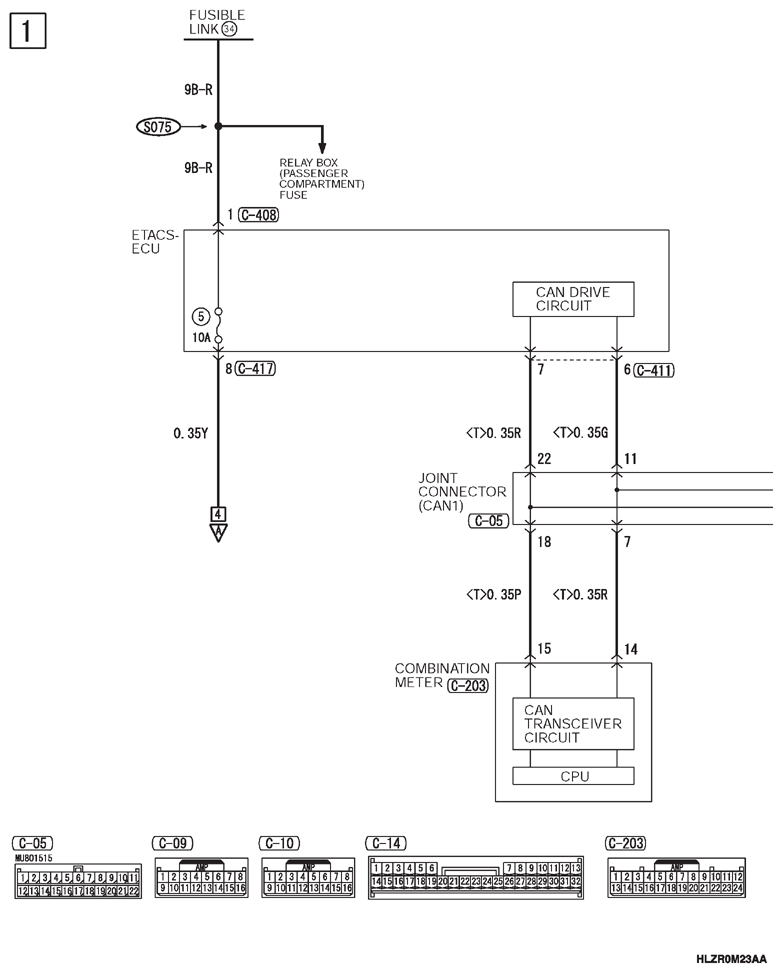

G13346411Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

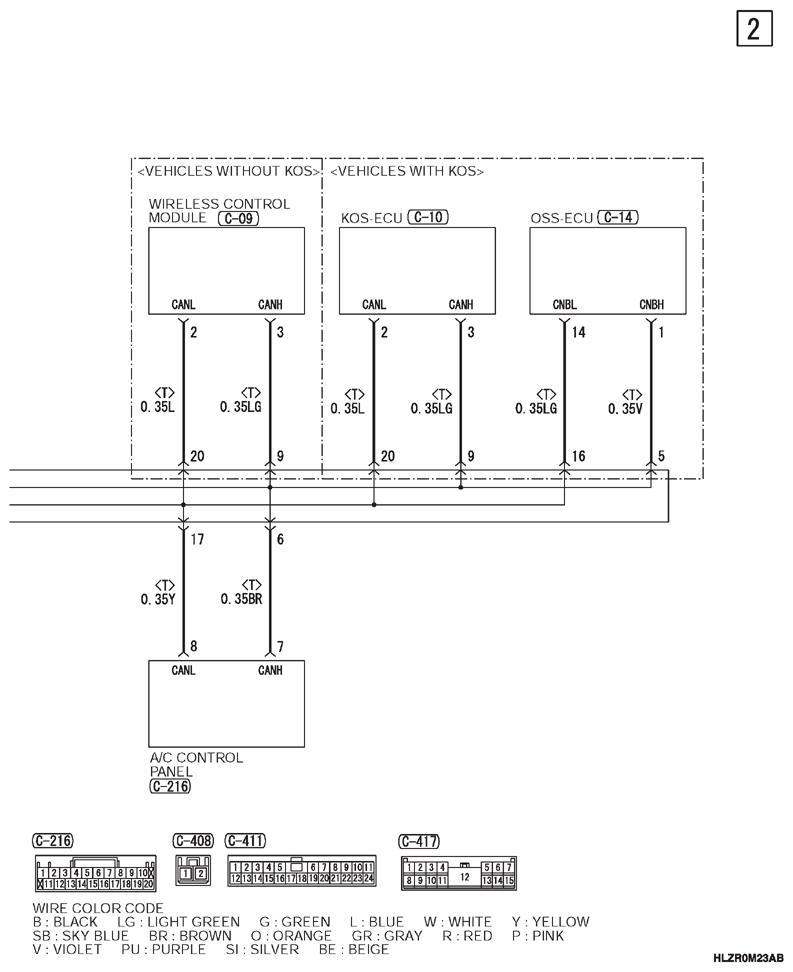

G13346412Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

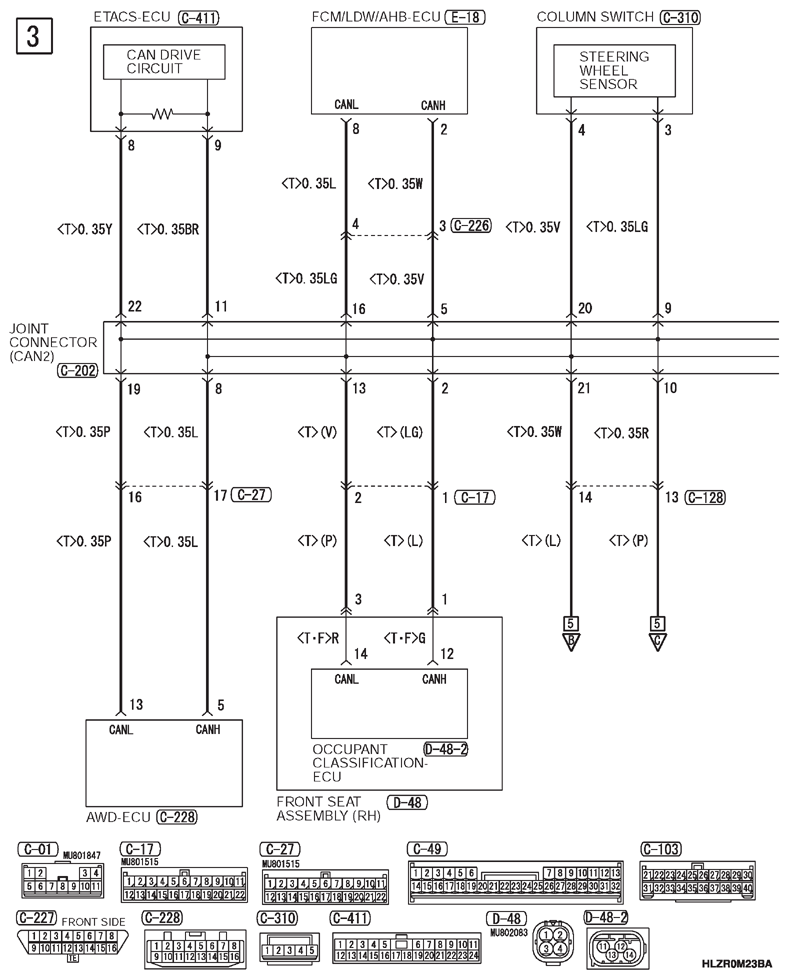

G13346413Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

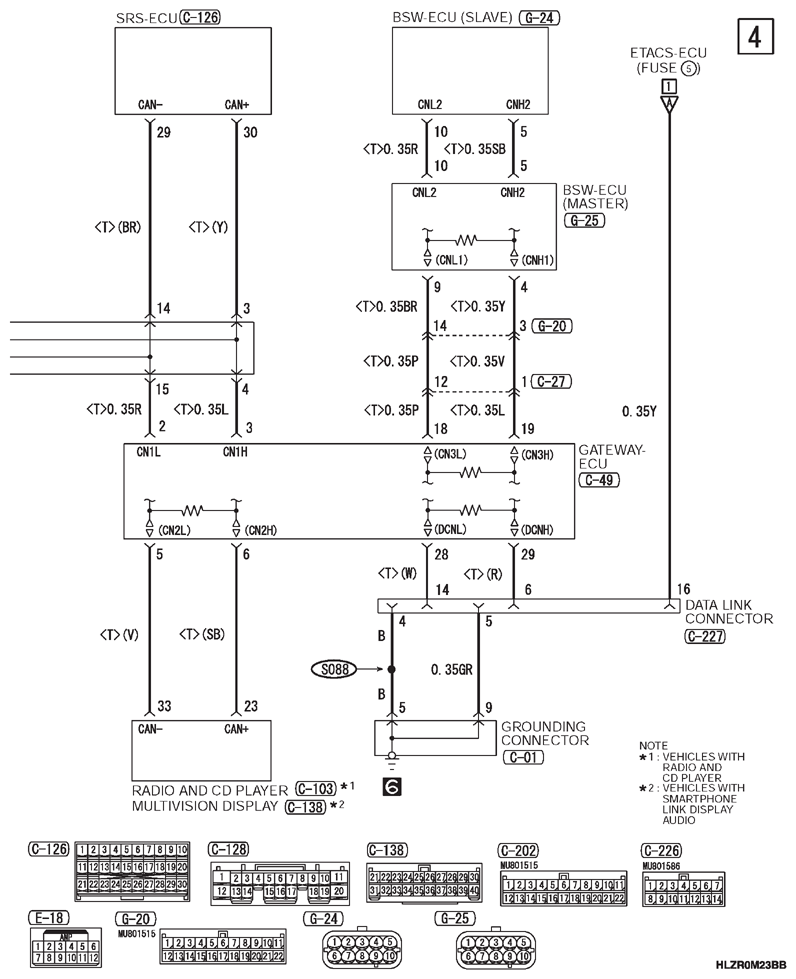

G13346414Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

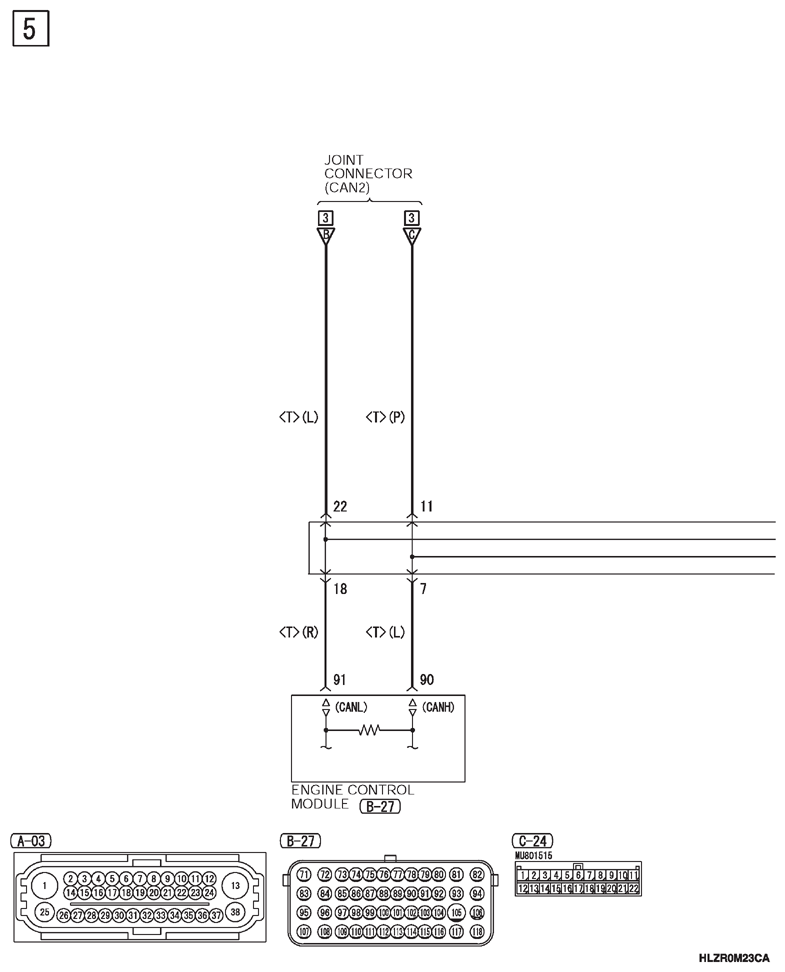

G13346415Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

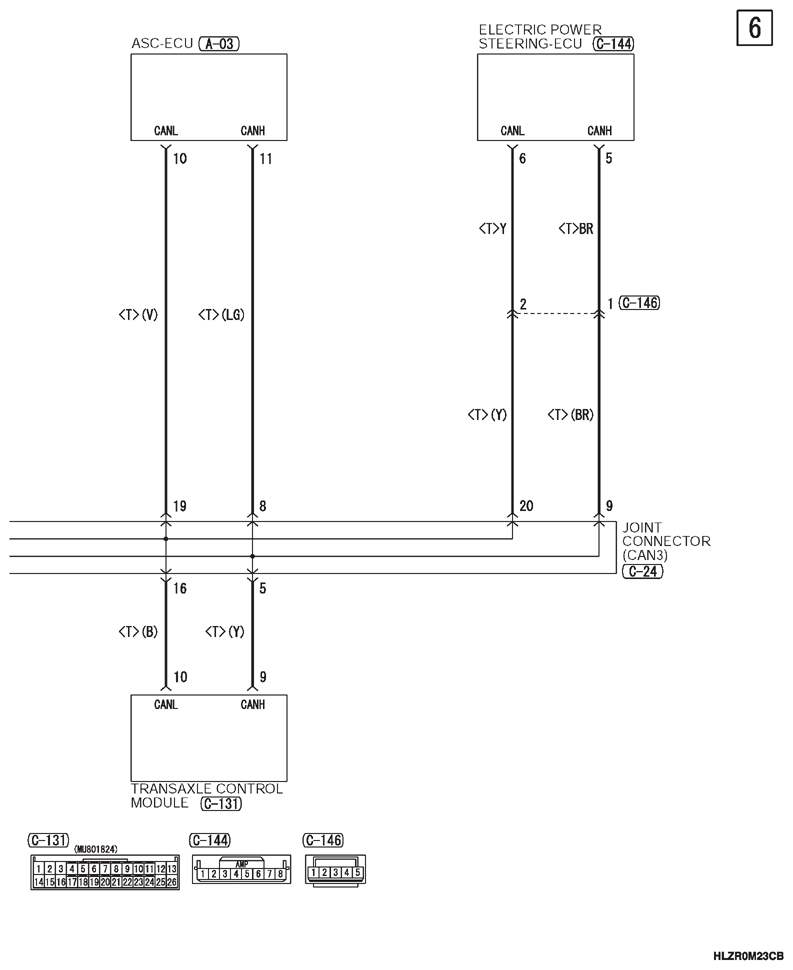

G13346416Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
