Home >> Mitsubishi >> 2021 >> RVR LE >> Repair and Diagnosis >> Engine Performance >> Wiring Diagrams >> Circuit Diagrams >> Backup Light

Backup Light

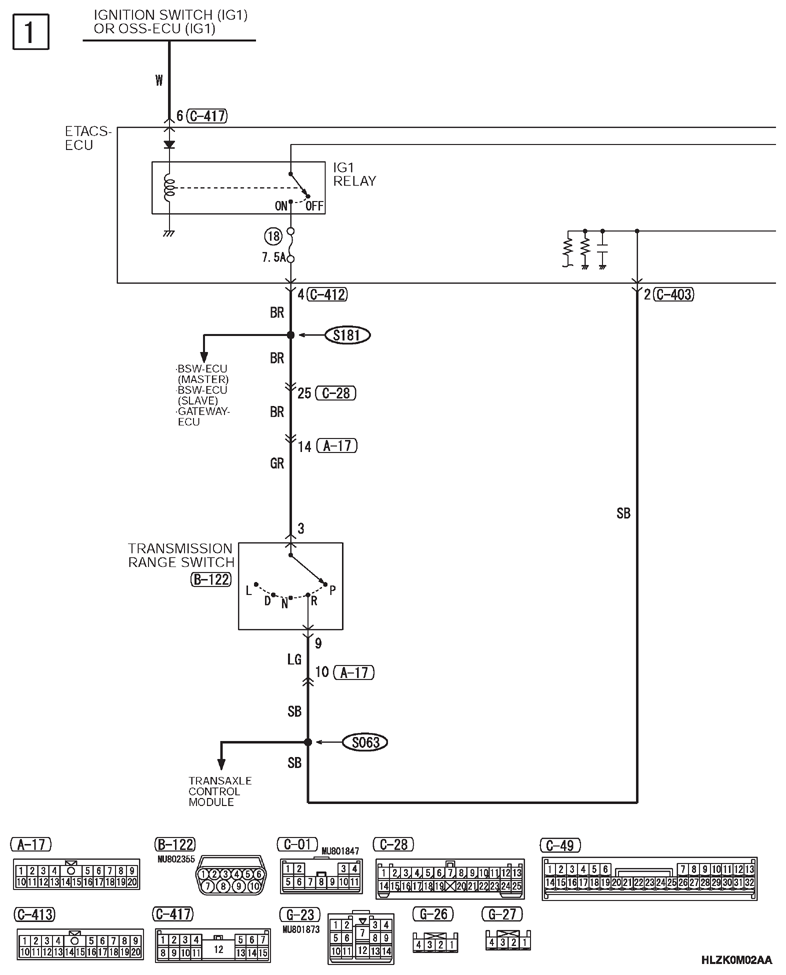

G13346206

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

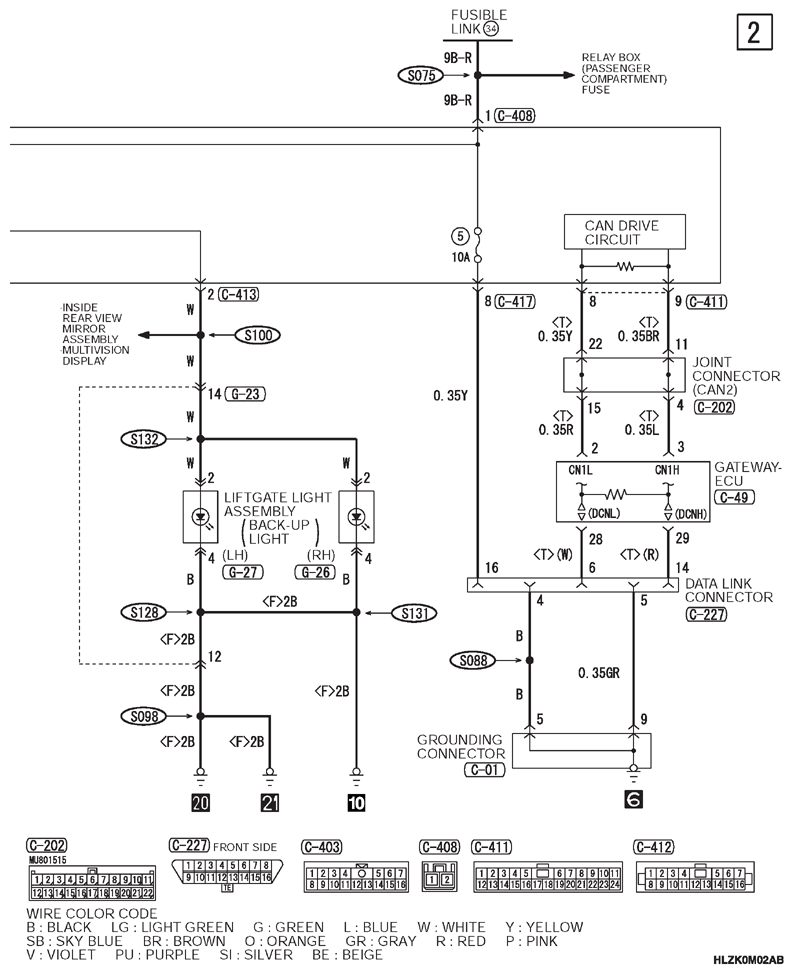

G13346207

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
