>>C<< Timing Chain Installation

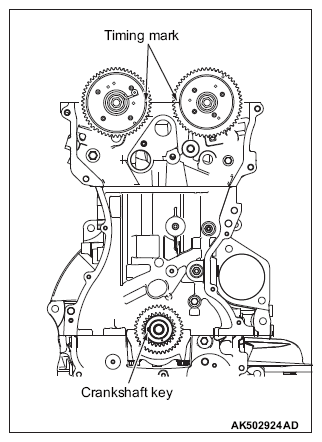

Align the timing mark of the V.V.T. sprocket.
Align the crankshaft sprocket keys with illustrated positions.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

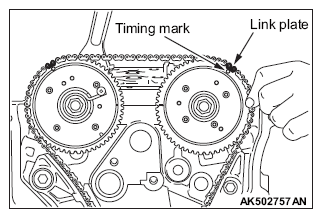

Align the link plate (blue) with the timing mark of the exhaust V.V.T. sprocket and loop the timing chain.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

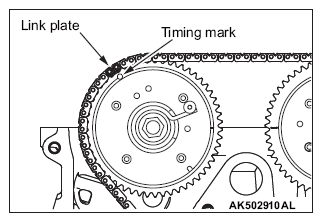

Align the link plate (blue) with the timing mark of the intake V.V.T. sprocket to loop the timing chain.
Rotate the intake V.V.T. sprocket by one or two teeth to align with the timing mark.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

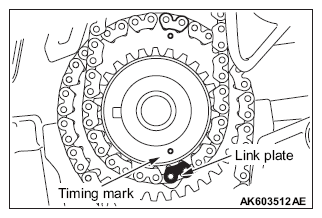

Align the timing mark of the crankshaft sprocket with the link plate (blue) to loop the timing chain. Because of timing chain slacks, hold it to prevent the timing mark from coming off the link plate.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

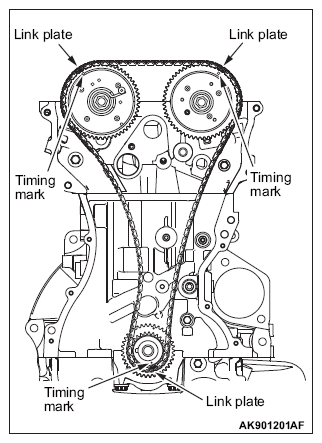

Make sure that the timing mark of each sprocket is aligned with the link plate (blue) of the timing chain at all of three locations.
Install the timing chain guide and tensioner lever.
