Removal And Installation: Notes

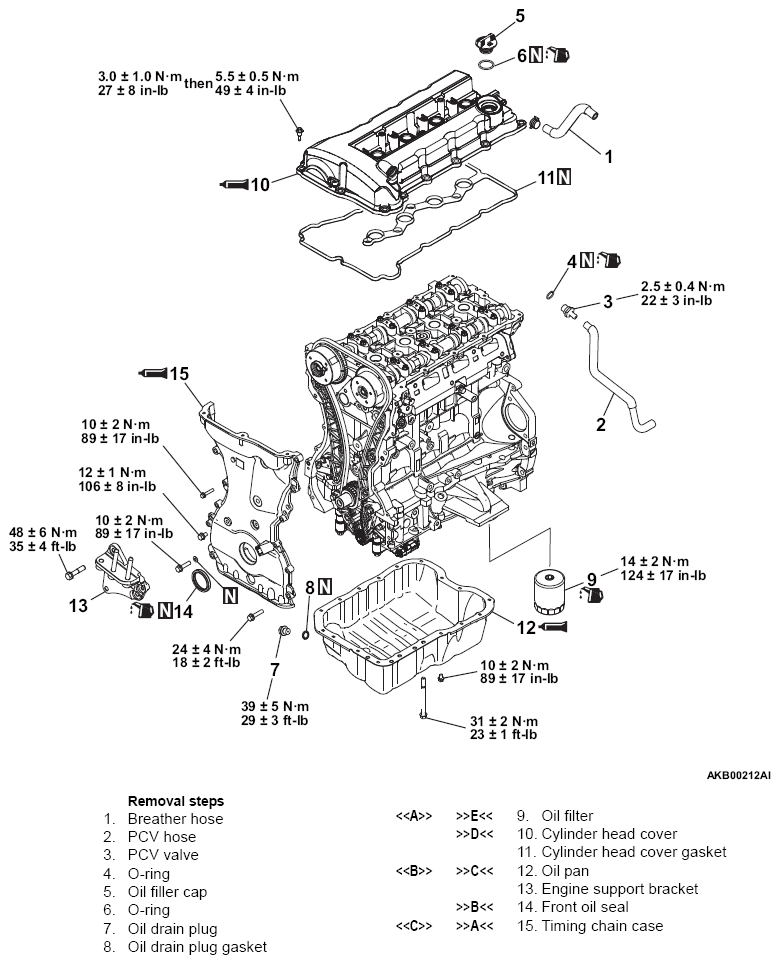

Fig 1: Removing/Installing Oil Pan And Timing Chain Case Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991396: Oil Filter Wrench
• MD998727: Oil Pan FIPG Cutter
• MB991448: Bushing remover and installer base
