Removal And Installation: Notes

Pre-removal and Post-installation operation

• Engine Room Under Cover Front A, B and Engine Room Side Cover (LH) Removal and Installation (Refer to UNDER COVER ).
• Battery and Battery Tray Removal and Installation (Refer to REMOVAL AND INSTALLATION ).
• Relay Box Mounting Bolts Removal and Installation.
• Air Cleaner Assembly Removal and Installation (Refer to AIR CLEANER ).
• Engine Control Module (ECM) and Bracket Removal and Installation (Refer to ENGINE CONTROL MODULE (ECM) <2.0L Engine> or, ENGINE CONTROL MODULE (ECM) <2.4L Engine>).

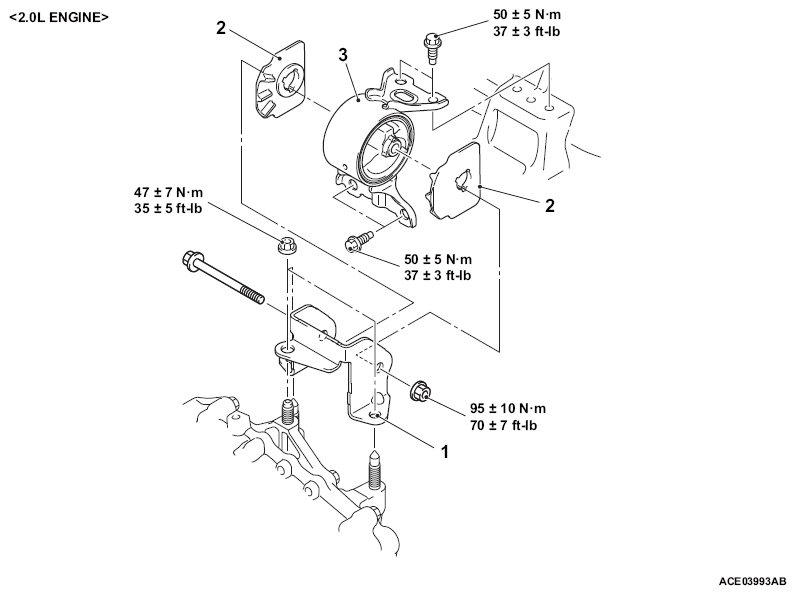

Fig 1: Removing/Installing Transaxle Mounting Components Location With Torque Specification - 2.0L Engine

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

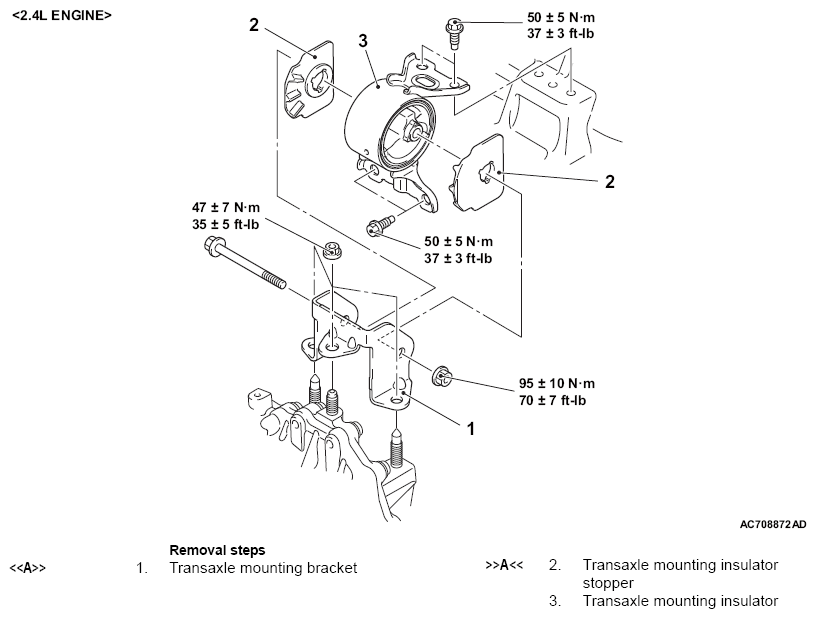

Fig 2: Removing/Installing Transaxle Mounting Components Location With Torque Specification - 2.4L Engine

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
