Notes
Removal And Installation: Notes
Pre-removal Operation
Engine Coolant Draining (Refer to
ENGINE COOLANT REPLACEMENT
).
Engine Upper Cover Removal (Refer to
CAMSHAFT
). <2.0L ENGINE>
Engine Upper Cover Removal (Refer to
CAMSHAFT
). <2.4L ENGINE>
Air Cleaner Assembly Removal (Refer to
AIR CLEANER
).
Post-installation Operation
Air Cleaner Assembly Installation (Refer to
AIR CLEANER
).
Engine Upper Cover Installation (Refer to
CAMSHAFT
). <2.0L ENGINE>
Engine Upper Cover Installation (Refer to
CAMSHAFT
). <2.4L ENGINE>
Engine Coolant Refilling (Refer to
ENGINE COOLANT REPLACEMENT
).

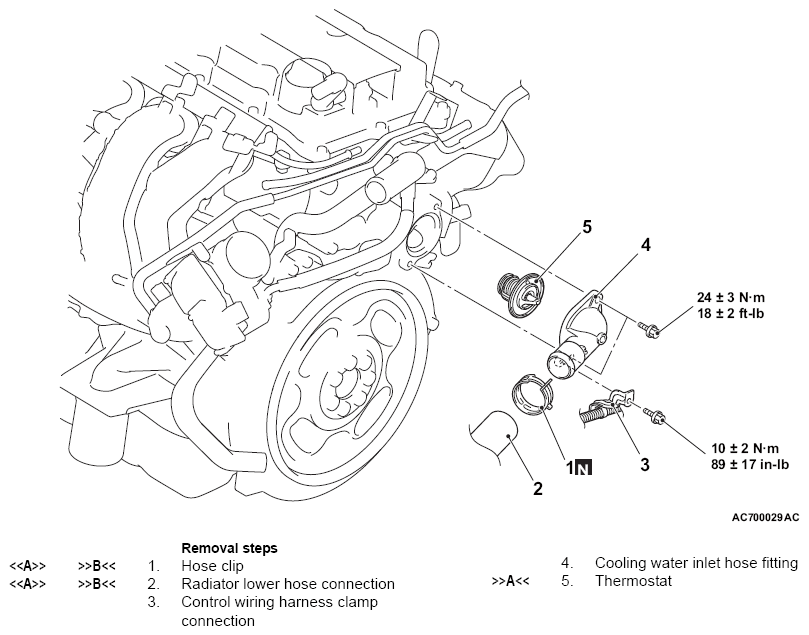

Fig 1: Removing/Installing Thermostat Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
