Notes
Removal And Installation: Notes
Pre-removal and Post-installation operation
Engine coolant Draining, Refilling and Check (Refer to
ENGINE COOLANT REPLACEMENT
).
Air Cleaner Assembly Removal and Installation (Refer to
AIR CLEANER
).

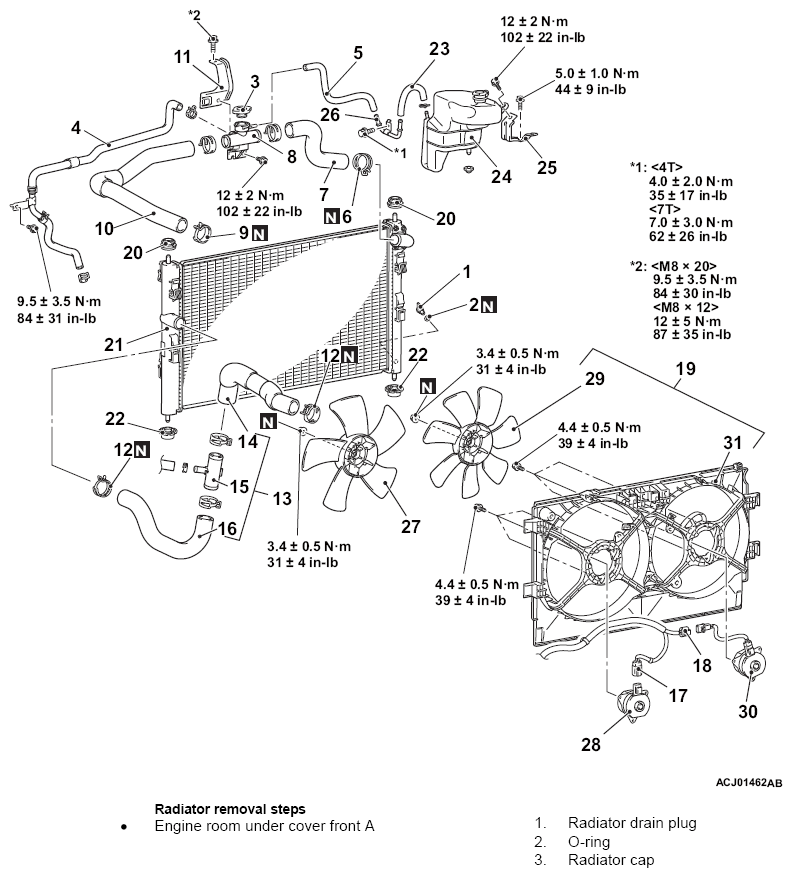

Fig 1: Removing/Installing Radiator Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
