Fan Control Relay Check

Battery voltage Terminal No. to be connected to tester Continuity test results
Not applied 2 - 5 Continuity (Less than 2 Ω)
4 - 5 Open circuit
Connect terminal No. 1 and battery (+) terminal. Connect terminal No. 3 and battery (-) terminal. 2 - 5 Open circuit
4 - 5 Continuity (Less than 2 Ω)

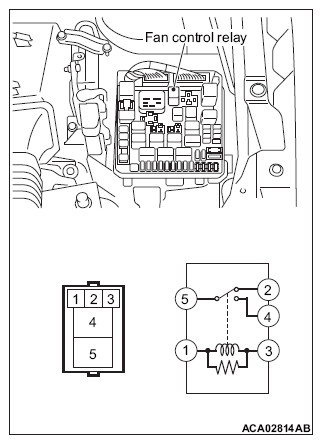

G14212728Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
