Home >> Mitsubishi >> 2021 >> RVR LE >> Repair and Diagnosis >> Electrical >> Body Electrical >> Configuration Diagrams >> Floor

Configuration Diagrams: Floor

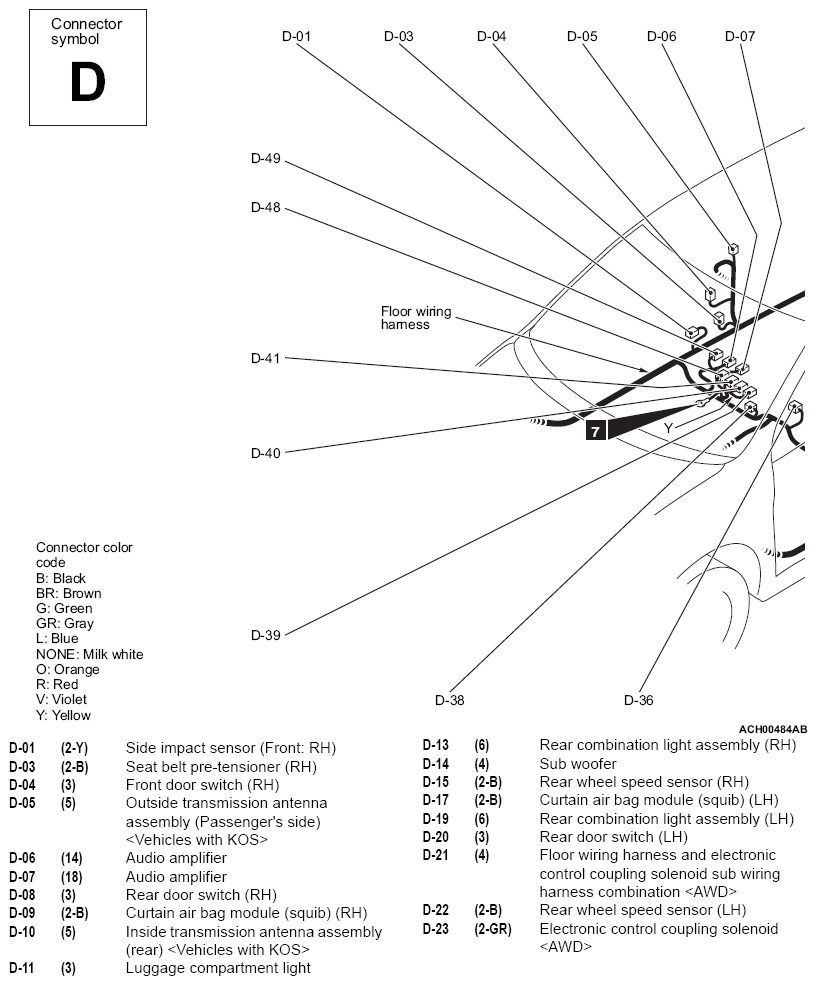

G14220091

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

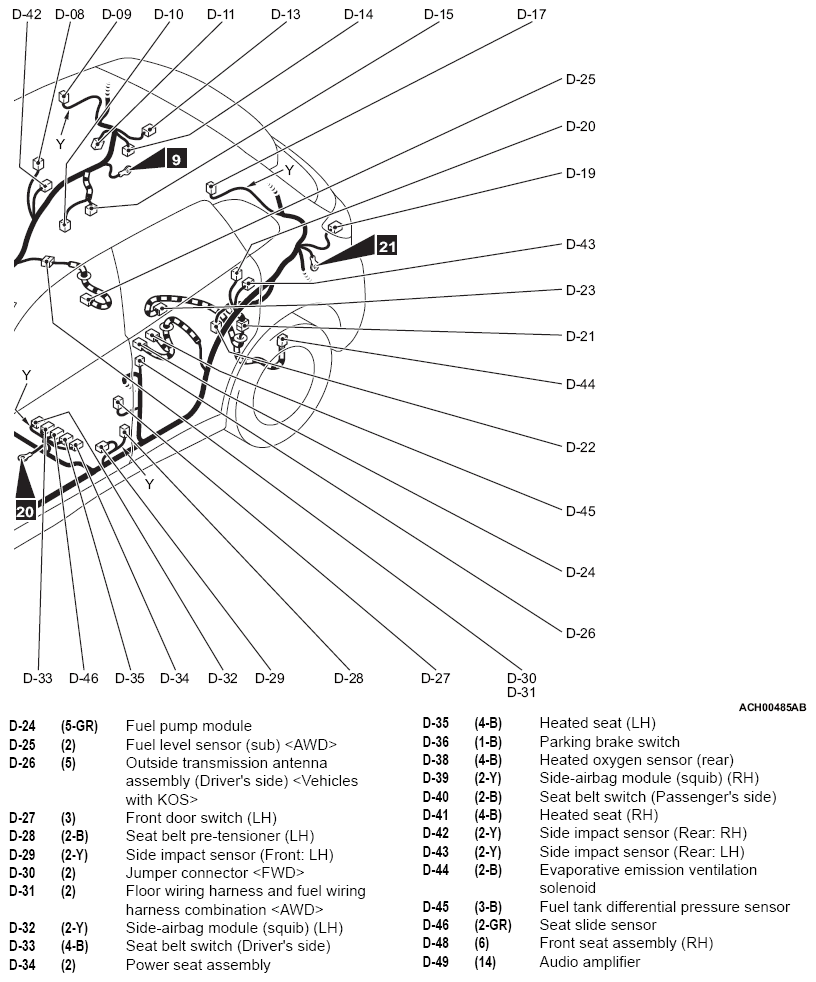

G14220092

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
