Engine And Transaxle

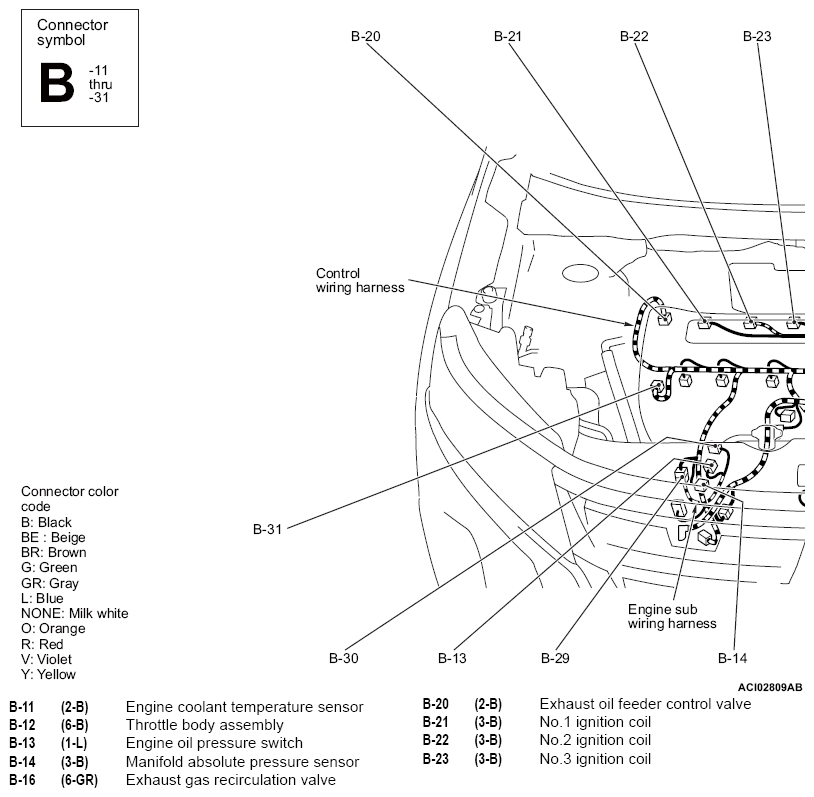

G14220079Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

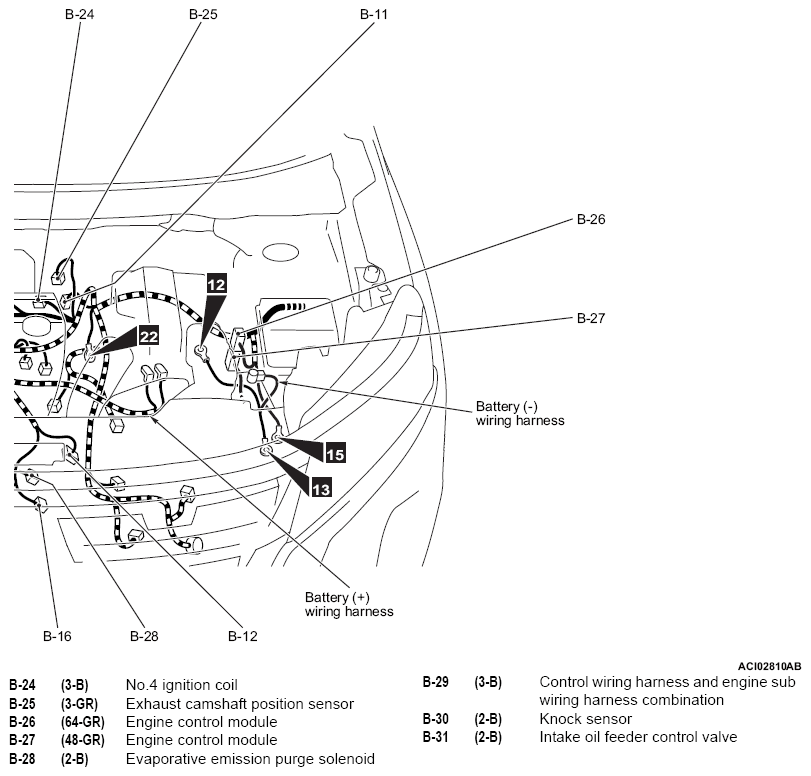

G14220080Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

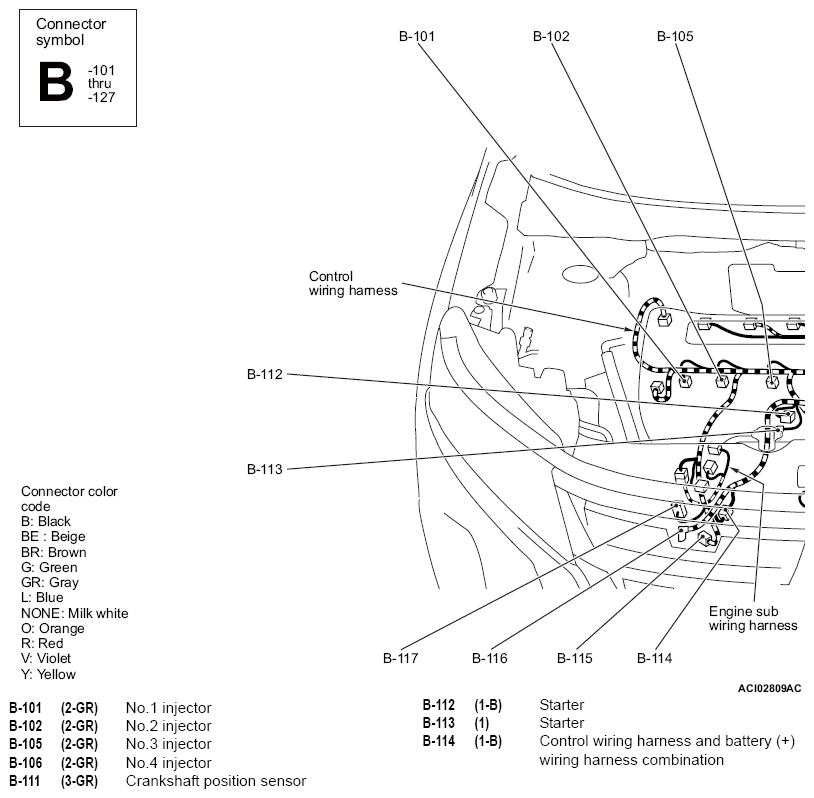

G14220081Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

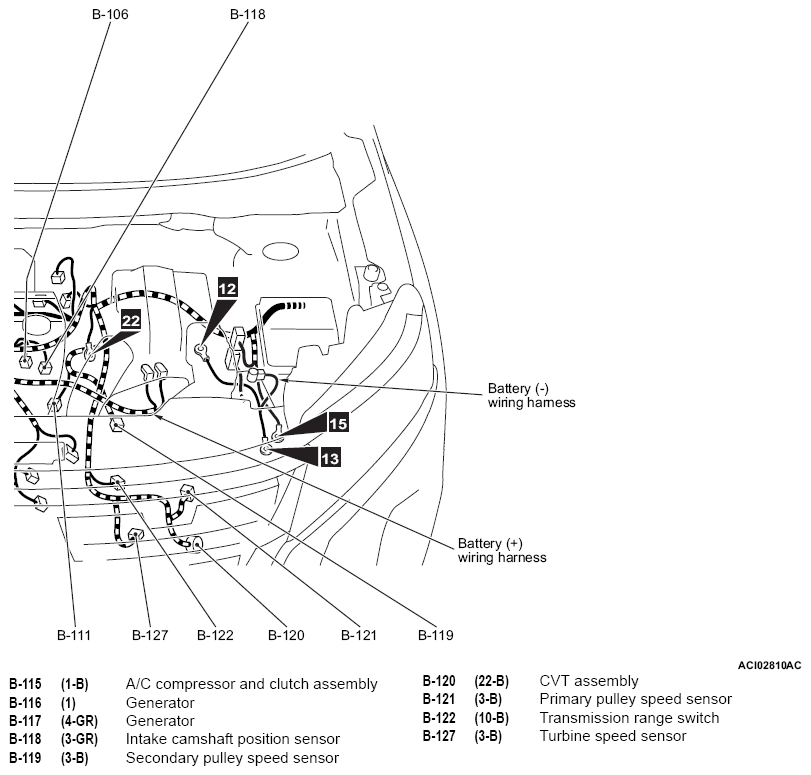

G14220082Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
