Removal And Installation: Notes

Pre-removal and post-installation operation

• Liftgate Upper Trim Removal and Installation (Refer to LIFTGATE TRIM .")
• Rear Washer Hose (Liftgate side) Connector Disconnection and Connection (Refer to REAR WIPER AND WASHER ").
• High-mount Stop Light Connector Connection

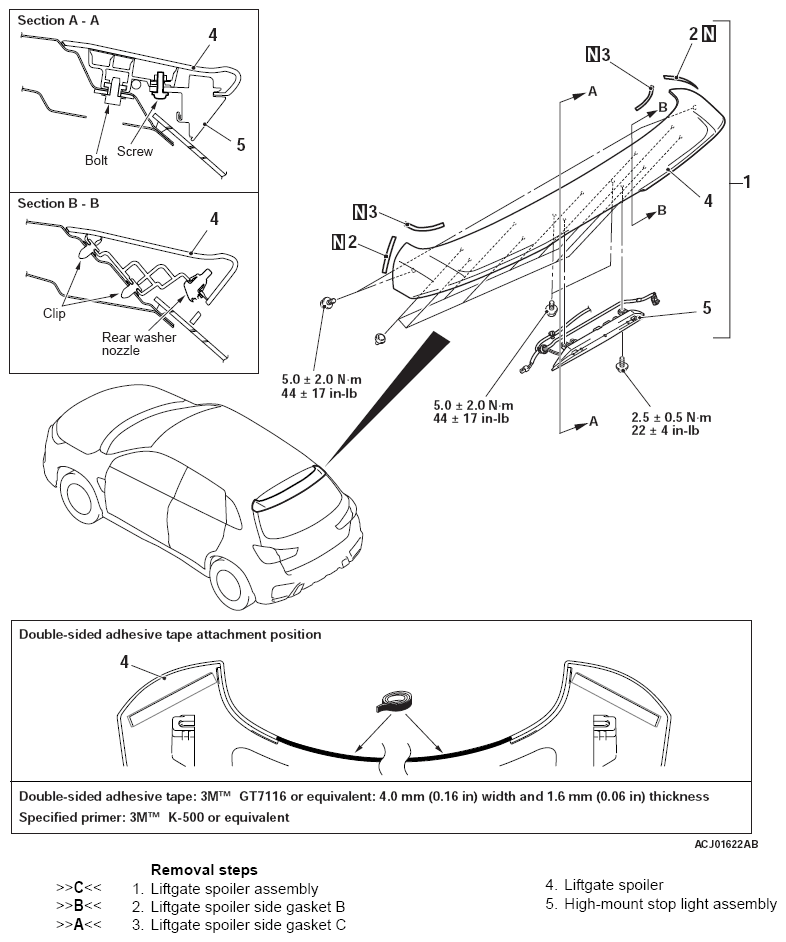

Fig 1: Removing/Installing Liftgate Spoiler Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
