Keyless Operation System (Kos)
>>
General Information
>>

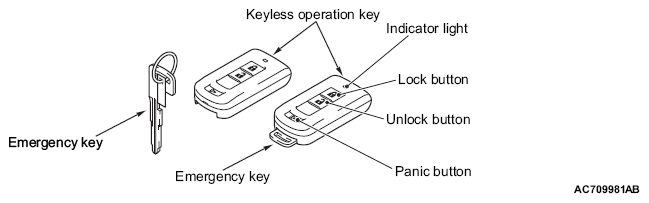

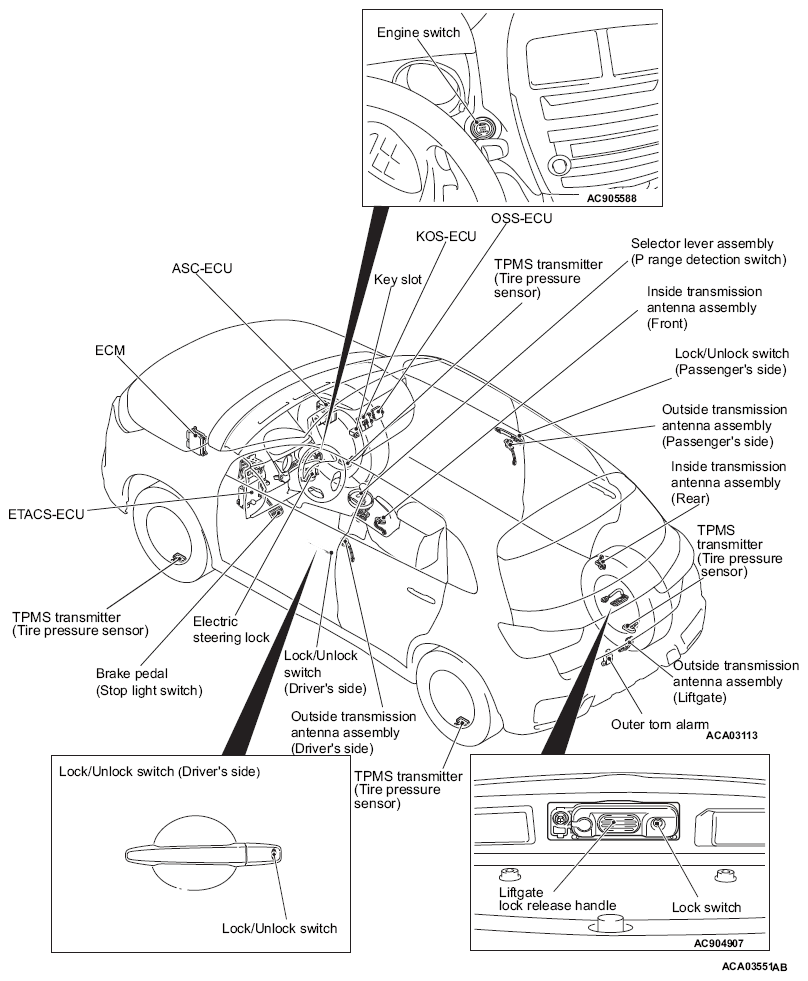

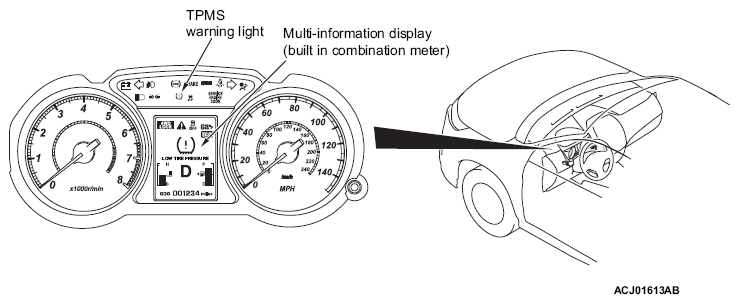

Construction Diagram
>>
Notes
Construction Diagram: Notes
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
