Engine Switch: Inspection

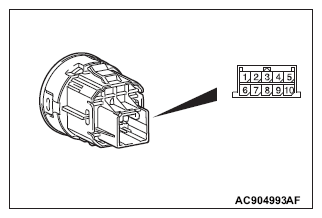

Switch operation Terminal number Normal conditions
Press 6 - 2 Continuity exists (2 ohms or less)
10 - 4
Release 6 - 2 No continuity
10 - 4
G14214034Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
