Special Tools

Tool	Tool number and name	Supersession	Application
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991618 Hub bolt remover	General service tool	Removal of the hub bolt
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB990767 Front hub and flange yoke holder	MB990767-01	Fixing of the hub
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992700 Lock nut chisel	General service tool	Raising up the swaged part driveshaft nut
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991897 or MB992011 Ball joint remover	MB991113-01, MB990635-01 or General service tool	Knuckle and tie rod end ball joint disconnection NOTE: Steering linkage puller (MB990635 or MB991113) is also used to disconnect knuckle and tie rod end ball joint.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB990241 Axle shaft puller A: MB990242 Puller shaft B: MB990244 Puller bar	MB990241-01 or General service tool	Removal of the hub knuckle assembly Removal of the driveshaft assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991354 Puller body	General service tool
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991056 or MB991355 Knuckle arm bridge	MB991056-01	Removal of the hub
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992250 Knuckle arm bridge attachment	-	Removal of the hub NOTE: Replace this attachment with a guide of MB991355 and use them.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	A: MB991017 B: MB990998 C: MB991000 A, B: Front hub remover and installer C: Spacer	MB990998-01	Removal of the hub Provisional holding of the wheel bearing Measurement of hub starting torque Measurement of wheel bearing end play NOTE: MB991000, which belongs to MB990998, should be used as a spacer. Removal of the wheel bearing inner race (outside) (Use MB991000 with MD998801.)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MD998801 Remover	-	Removal of the wheel bearing inner race (outside)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992150 Oil seal installer	-	Installation of the wheel bearing inner race (outside)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MD998812 Installer cap	-
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MD998813 Installer	-
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB990925 Bearing and oil seal installer set	MB990925-01 or General service tool	Removal of the wheel bearing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB990890 Rear suspension bushing base	MB990890-01	Installation of the wheel bearing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MD999528 Adapter	-
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991388 Bush remover base	-	Installation of the dust shield
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991576 Base	-
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991099 Oil seal installer guide	-	Measurement of hub starting torque
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB990326 Preload socket	General service tool
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991561 Boot band crimping tool	MB991561	Boot band installation

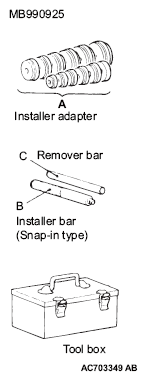

MB990925 BEARING AND OIL SEAL INSTALLER SET

Tool	Type	Tool number	O D mm (in)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	A	MB990926	39.0 (1.54)
		MB990927	45.0 (1.77)
		MB990928	49.5 (1.95)
		MB990929	51.0 (2.00)
		MB990930	54.0 (2.13)
		MB990931	57.0 (2.24)
		MB990932	61.0 (2.40)
		MB990933	63.5 (2.50)
		MB990934	67.5 (2.66)
		MB990935	71.5 (2.81)
		MB990936	75.5 (2.97)
		MB990937	79.0 (3.11)
	B	MB990938	-
	C	MB990939	-
