Hub Bolt Replacement

Required Special Tools:

• MB991618: Hub Bolt Remover
• MB990767: Front Hub and Flange Yoke Holder

1. Remove the front caliper assembly and front brake disc, and retain the front caliper assembly with a wire and the like to prevent from falling (Refer to FRONT AXLE HUB ASSEMBLY  ).

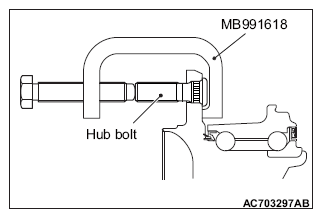

2. Use special tool MB991618 to remove the hub bolts.

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

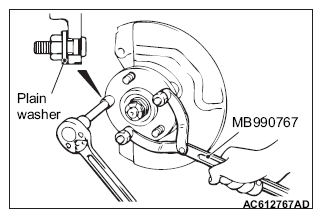

3. Install the plain washer to the new hub bolt, and install the bolt with a nut while holding the hub with special tool MB990767.
4. Install the front brake disc and the front caliper assembly (Refer to FRONT AXLE HUB ASSEMBLY  ).

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
