«B» Strut Removal
CAUTION:
Wear the protective glasses. Although the gas is harmless, drilling chips may be blown out by the gas.

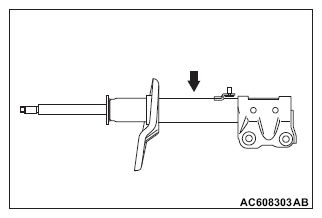

Before disposal of the strut, place the strut on the level surface with the piston rod extended, and make a hole of approximately 3 mm in diameter at the point shown in illustration, discharge the gas.
