Removal And Installation: Notes

CAUTION:

Before removing the steering wheel and driver's air bag module assembly, refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING .
After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point. (Refer to G AND YAW RATE SENSOR CALIBRATION ).

Pre-removal Operation

Steering Wheel Straight-ahead Position Check Post-installation Operation

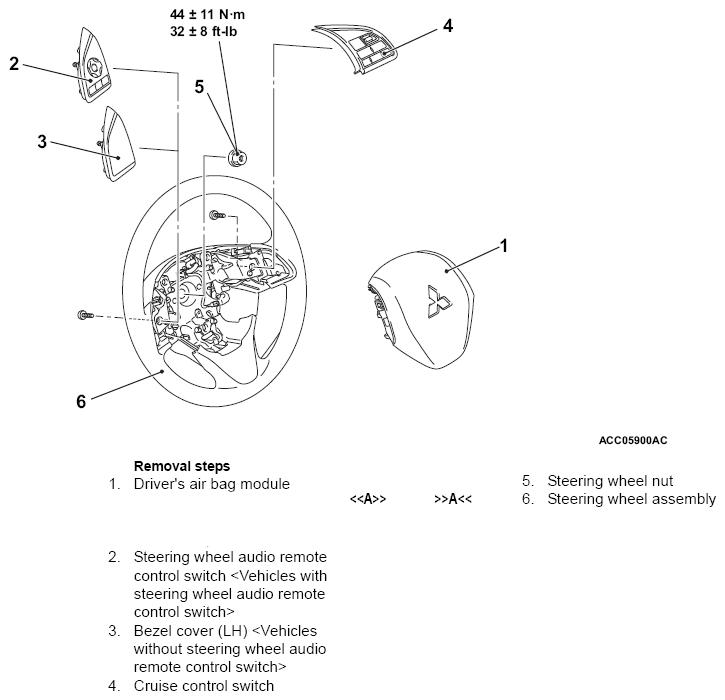

Fig 1: Removing/Installing Steering Wheel Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
