Home >> Mitsubishi >> 2021 >> RVR ES, FWD >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Sunshade Assembly >> Symptom Procedures >> Inspection Procedure 2: The sunshade does not open >> Notes

Inspection Procedure 2: The sunshade does not open: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

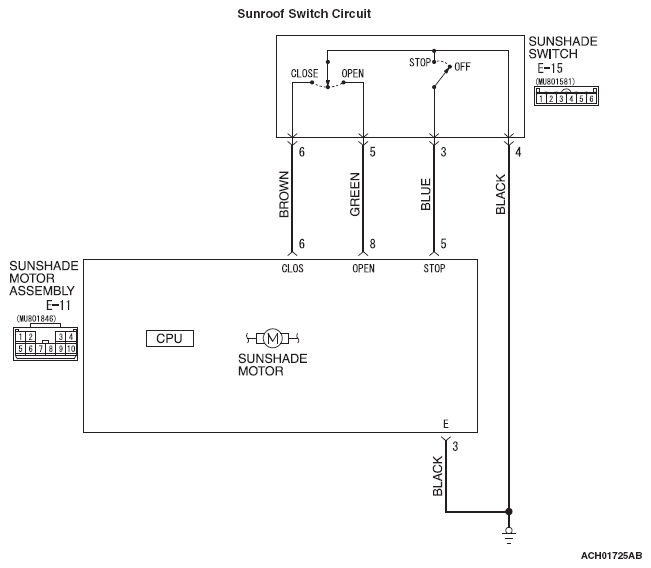

G12678243Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
G12491025Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
