Rectangular Waterproof Connector

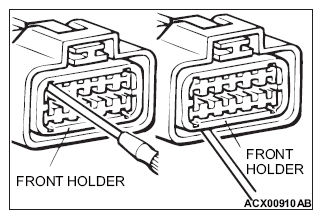

- Disengage the front holder with a screwdriver and remove it.

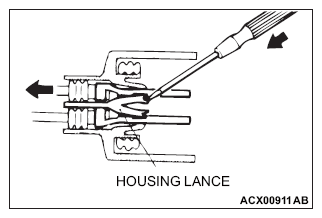

- Insert the tip of a screwdriver [0.8 mm (0.03 inch) width] into the connector as shown in illustration, push it lightly to raise the housing lance, and pull out the terminal.

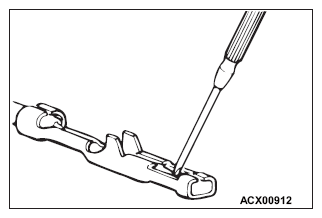

- Press the contact point to the male terminal down by holding a screwdriver [1.4 mm (0.06 inch) width] as shown in illustration. Lightly squeeze the outer edge so the flats are parallel with the bottom.
