Tire Pressure Monitoring System (TPMS)

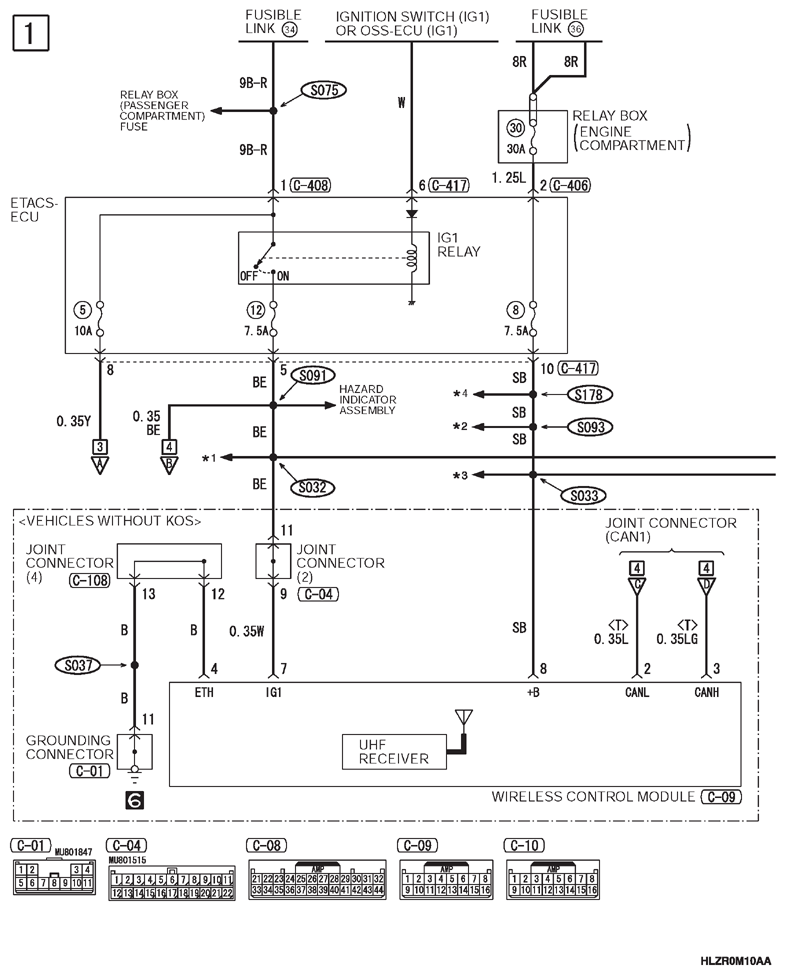

G13346367Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

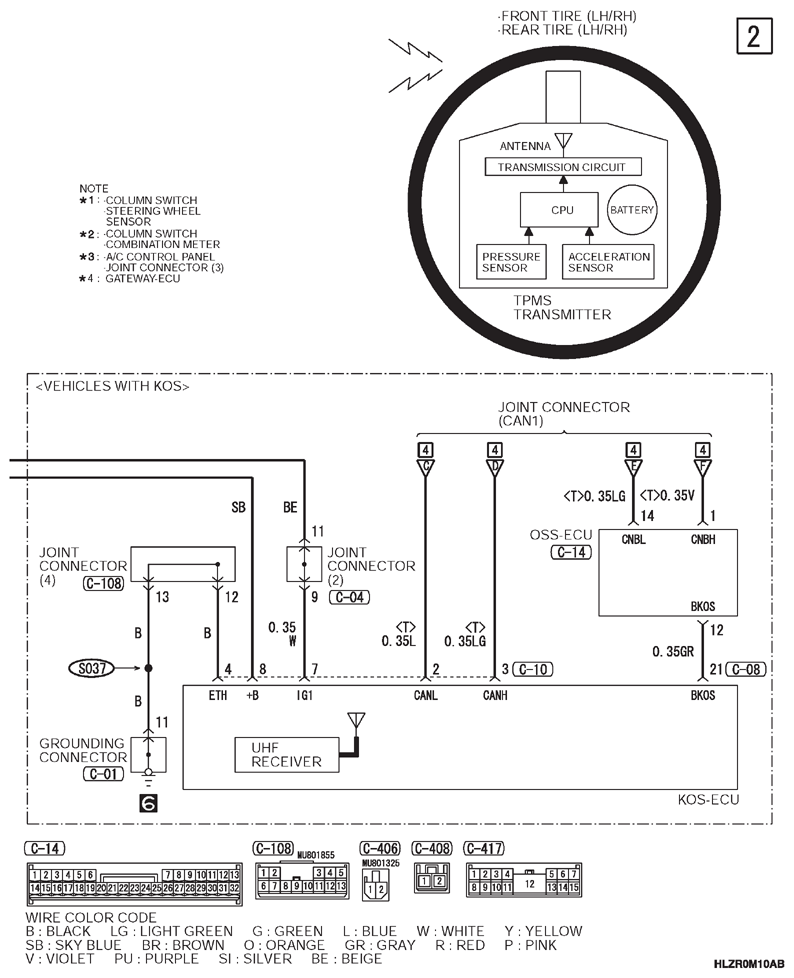

G13346368Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

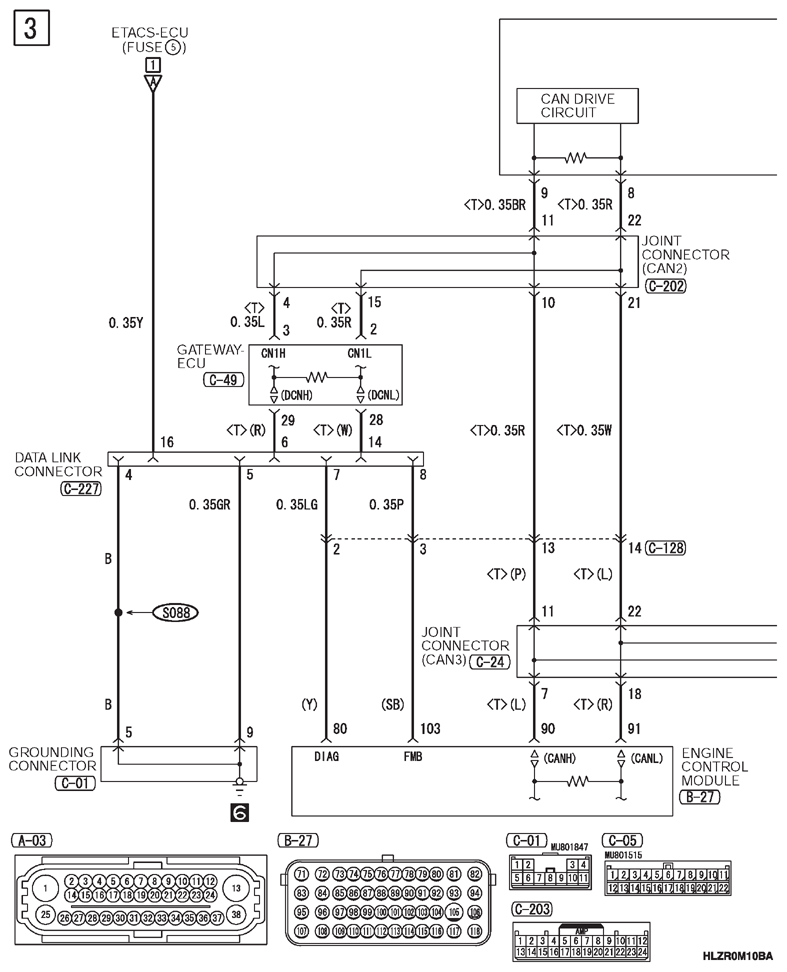

G13346369Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

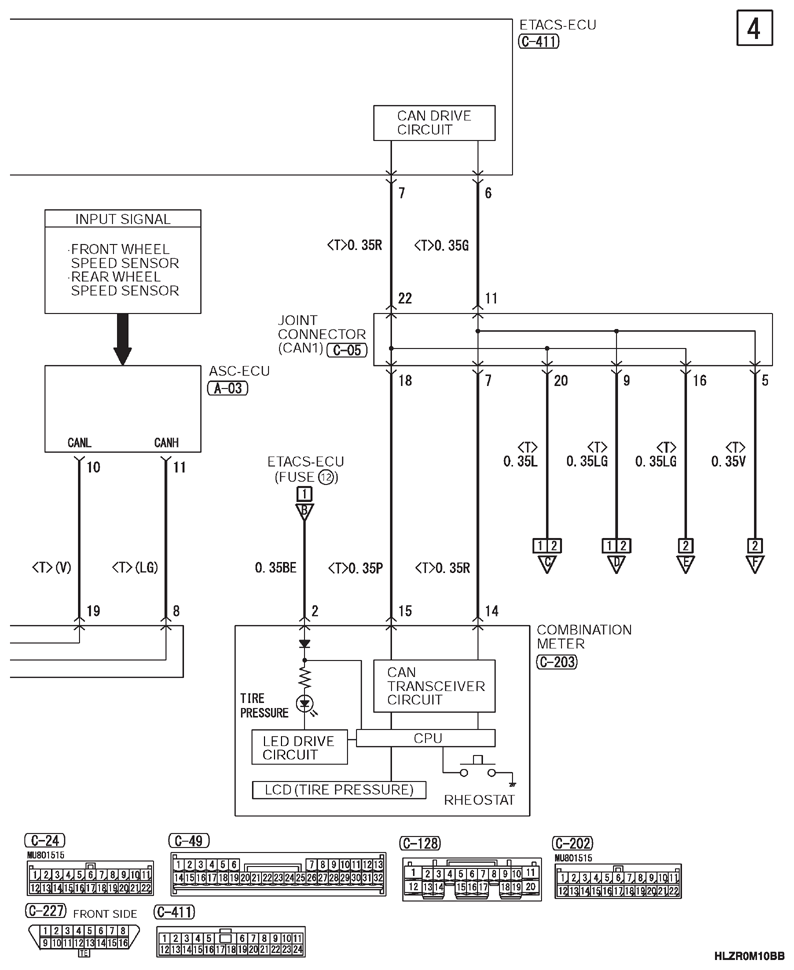

G13346370Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
