Joint Connector

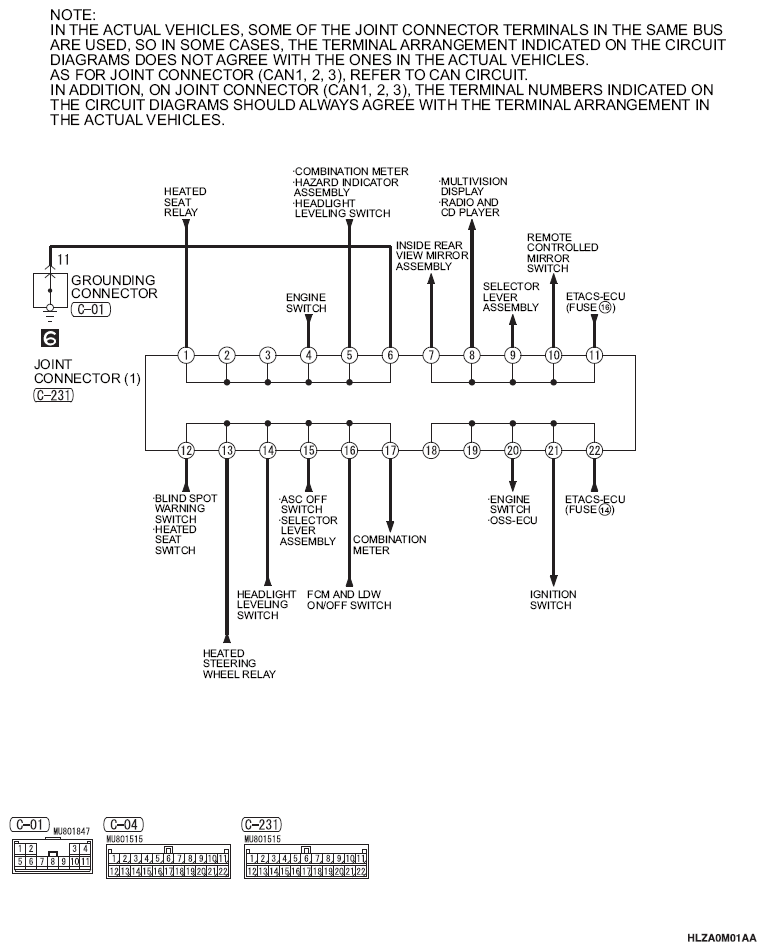

G14220142Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

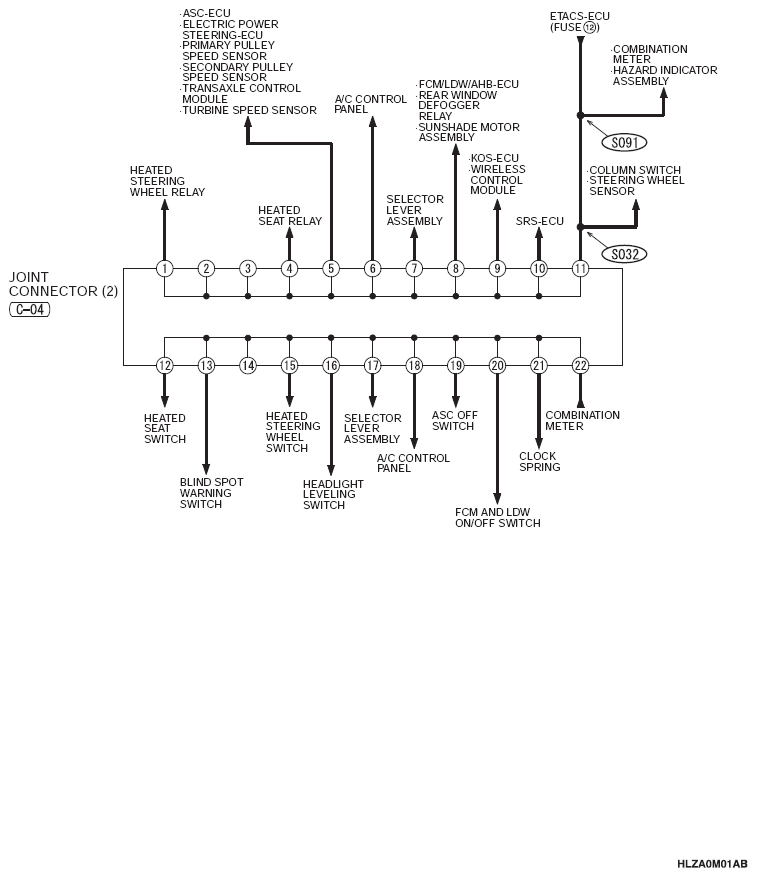

G13346096Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

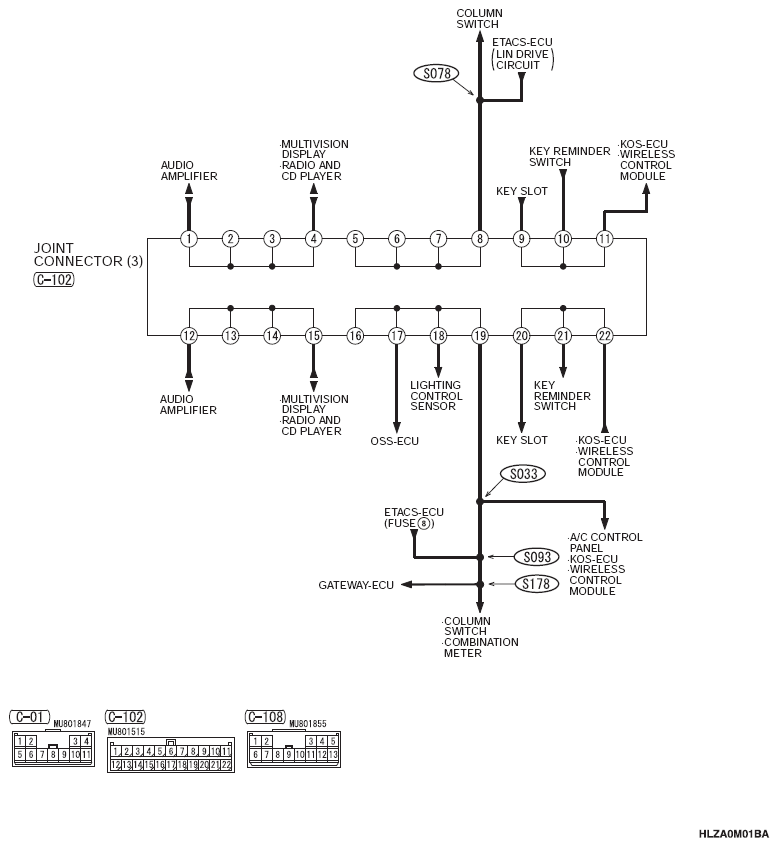

G13346097Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

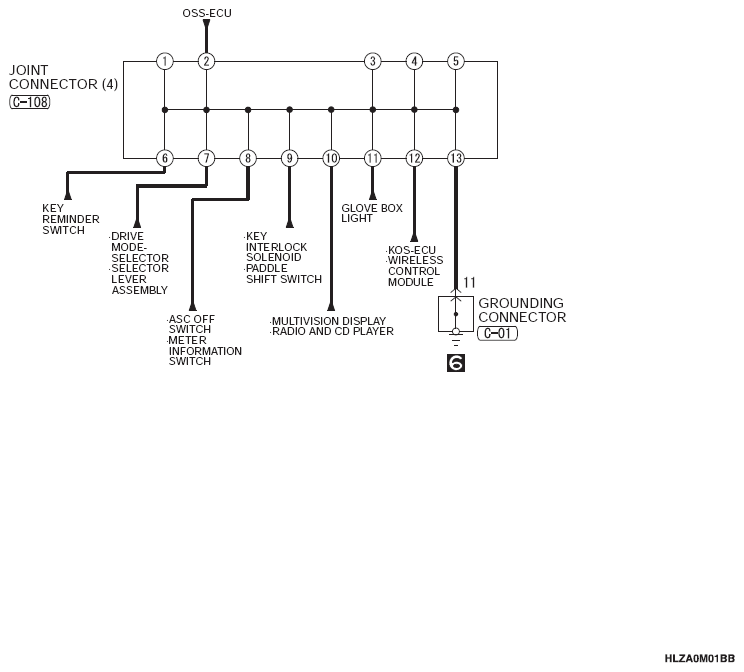

G13346098Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

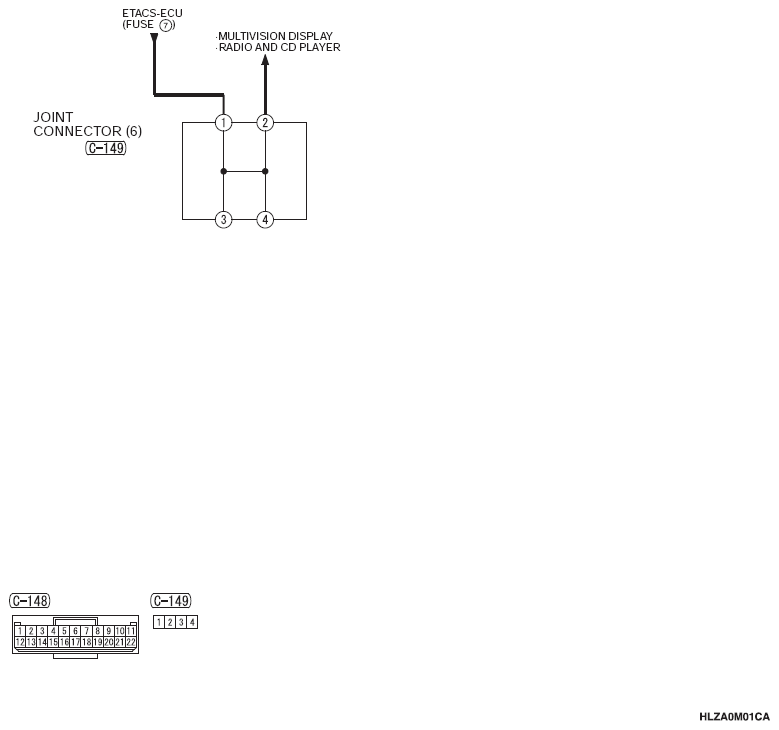

G13346099Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

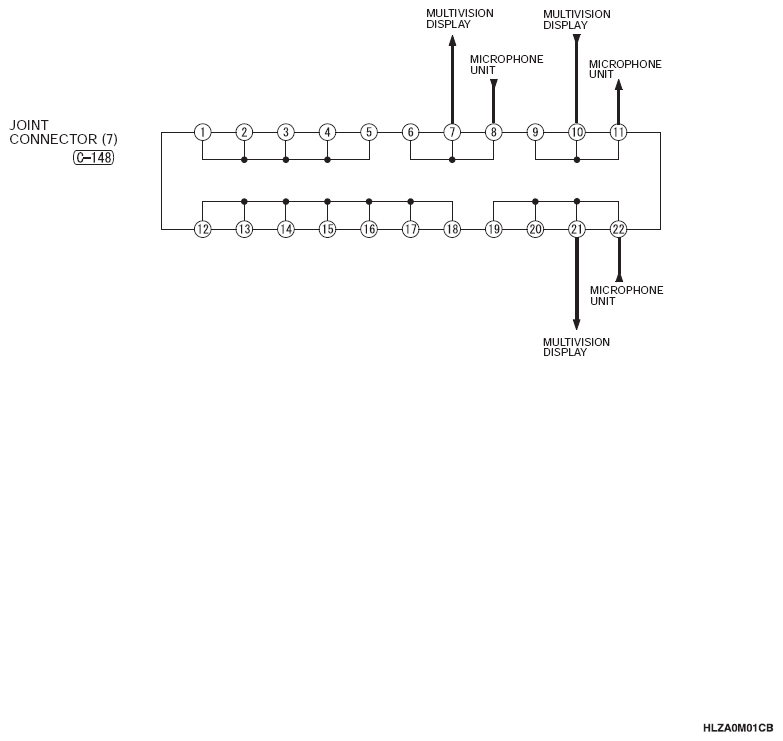

G13346100Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
