Fog Light

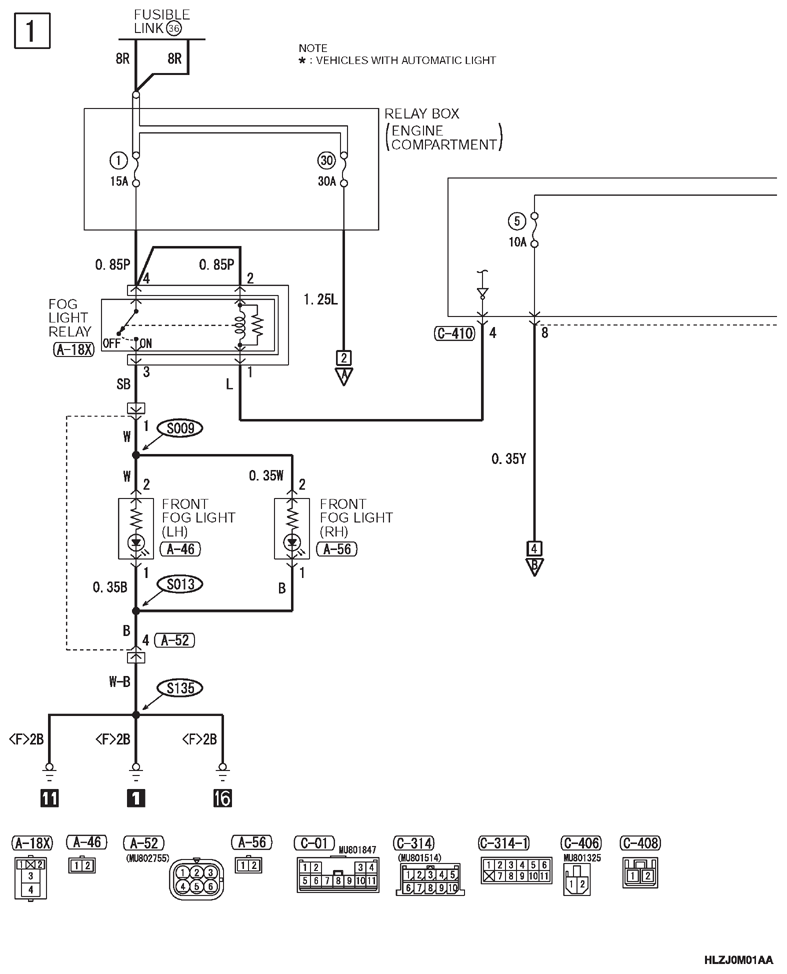

G13346159

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

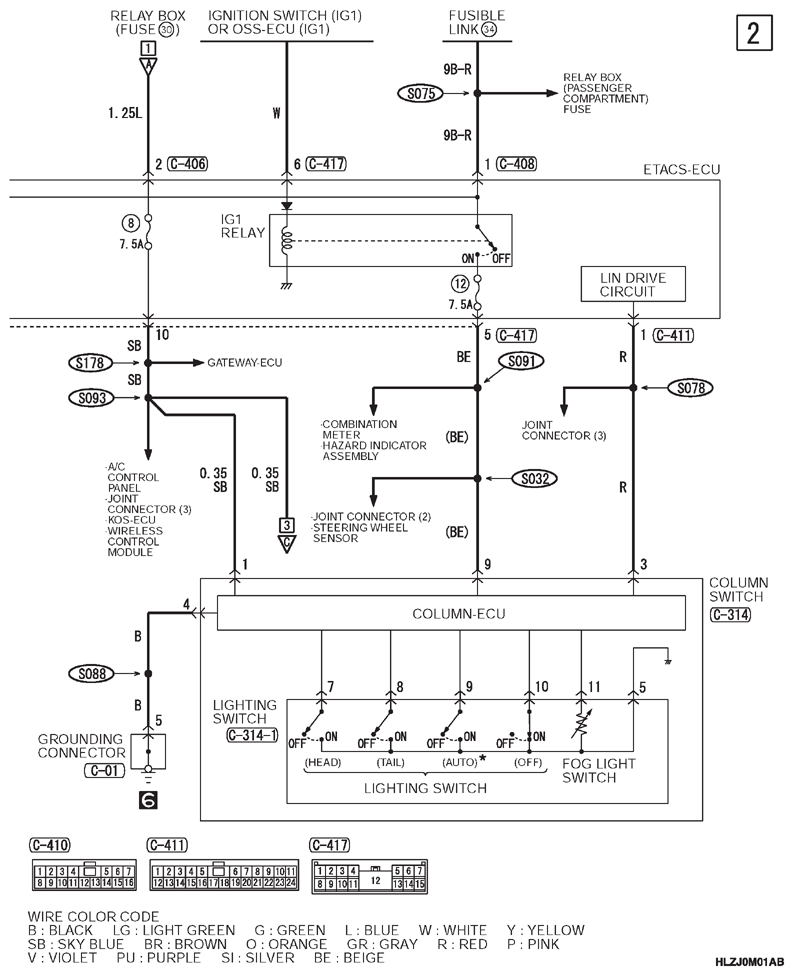

G13346160

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

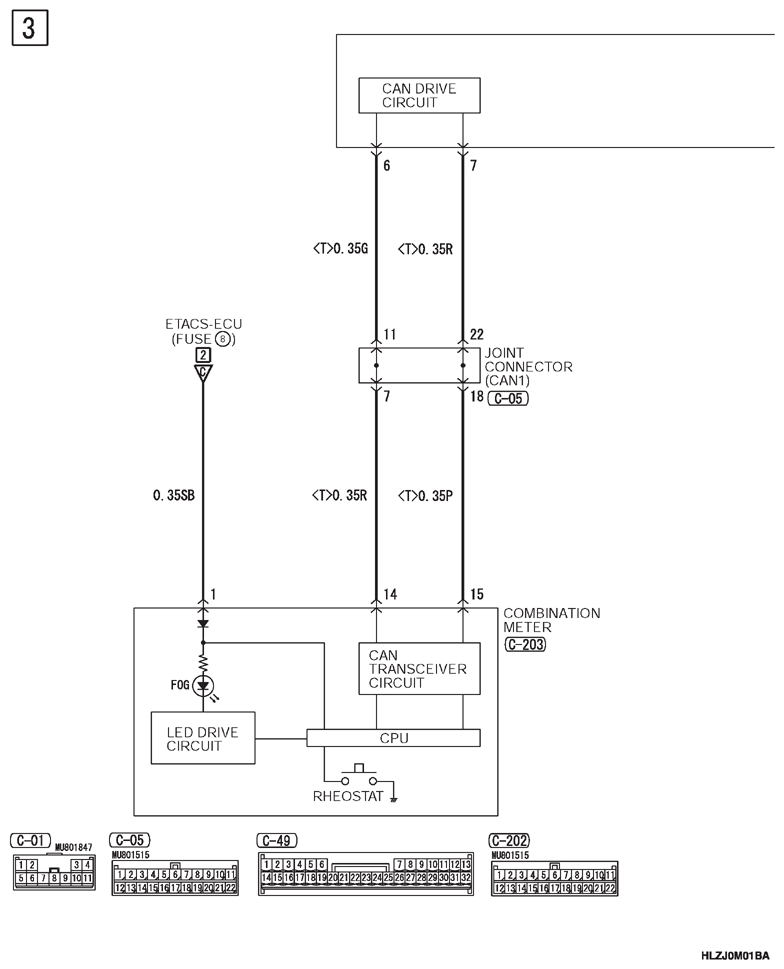

G13346161

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

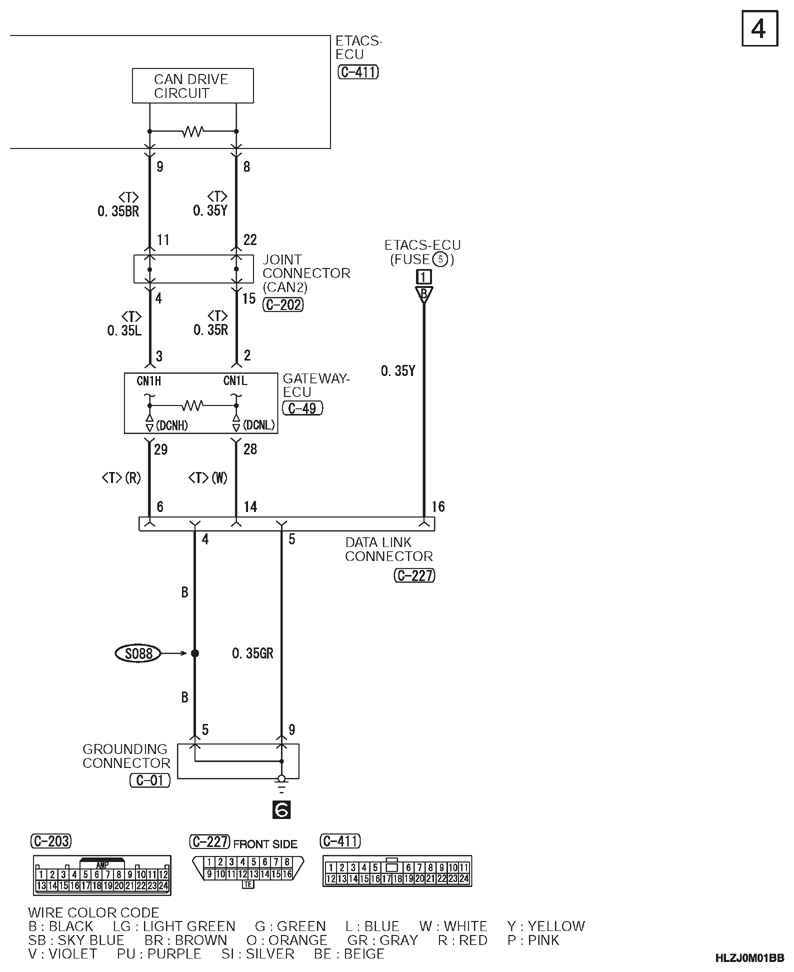

G13346162

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
