Electronic Controlled AWD

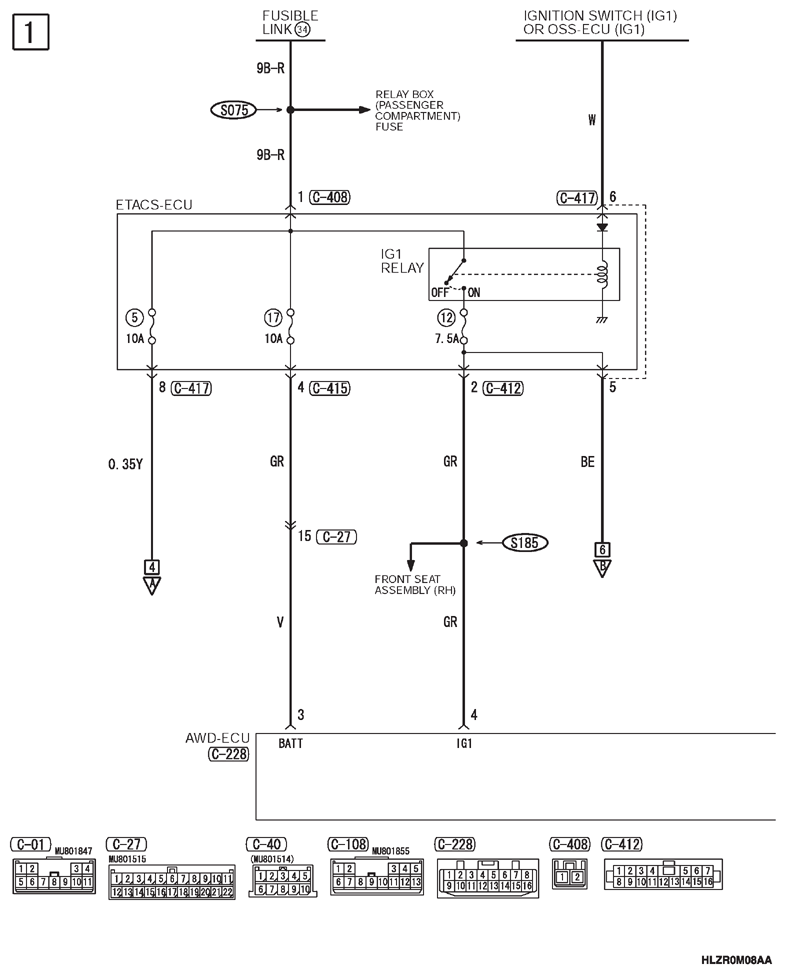

G13346353Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

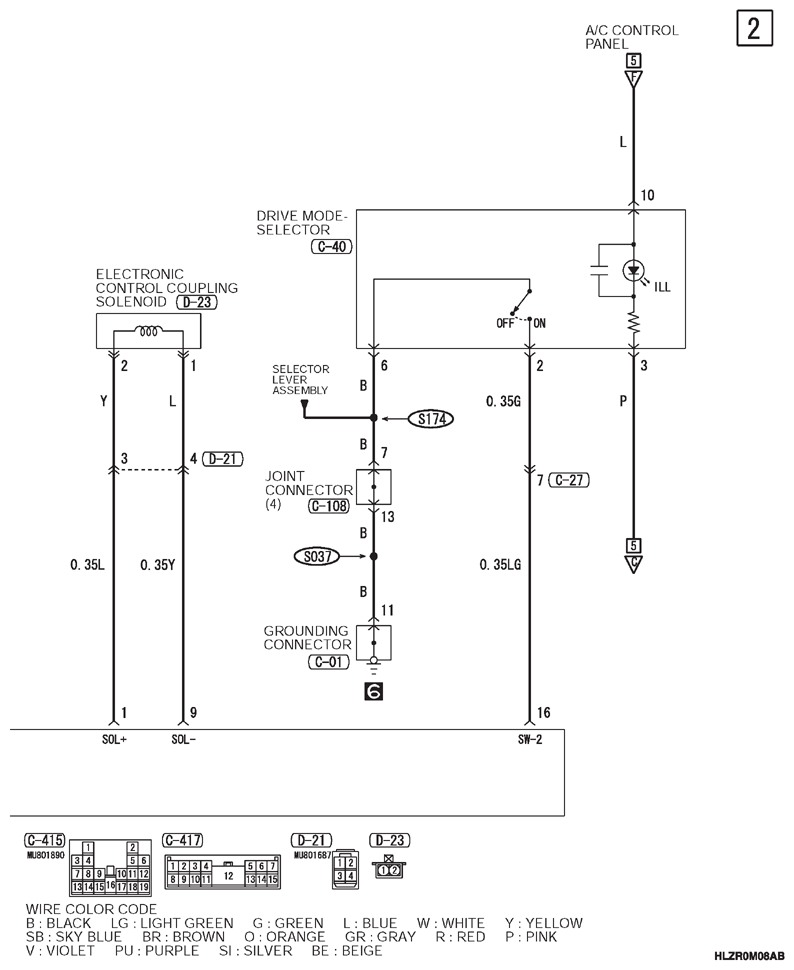

G13346354Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

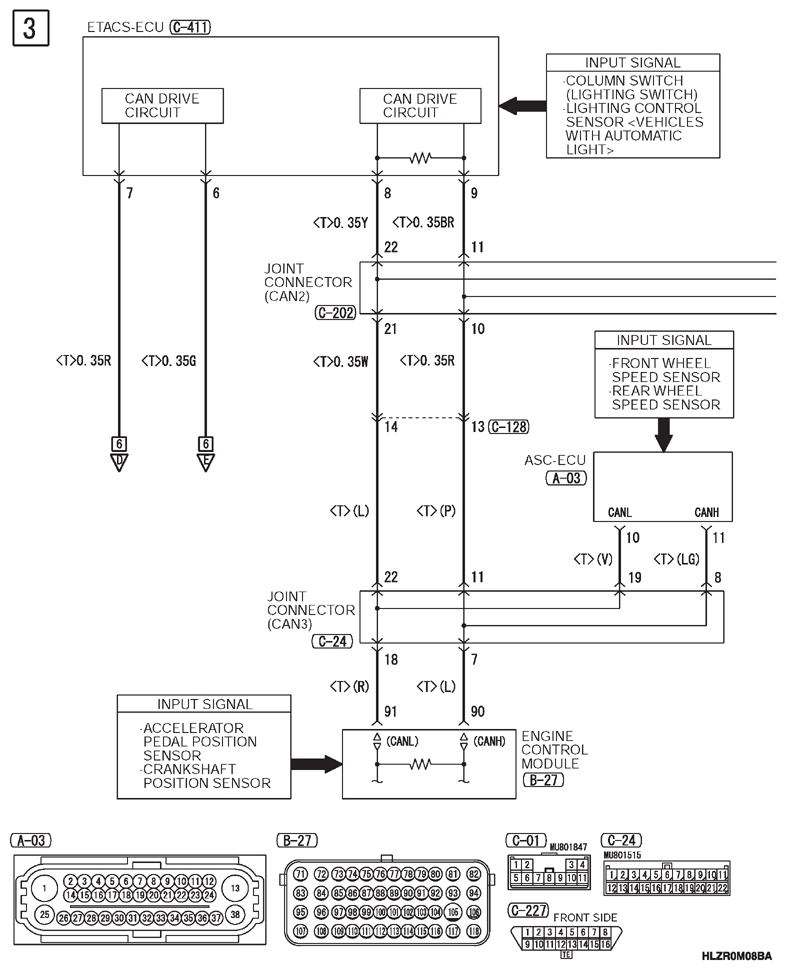

G13346355Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

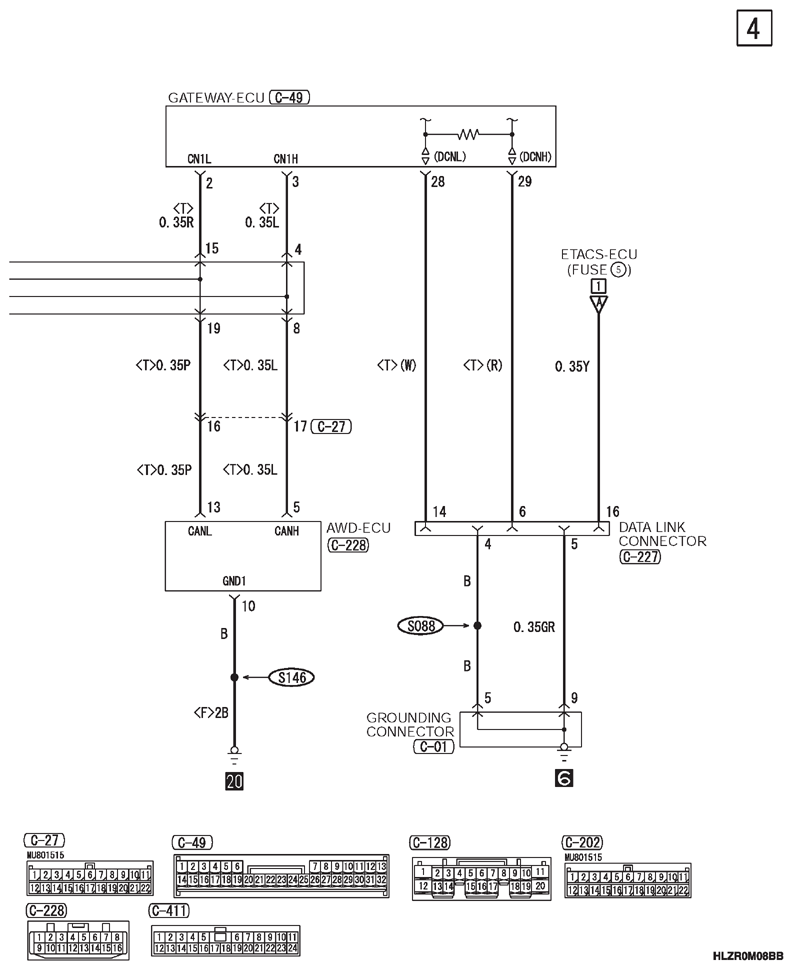

G13346356Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

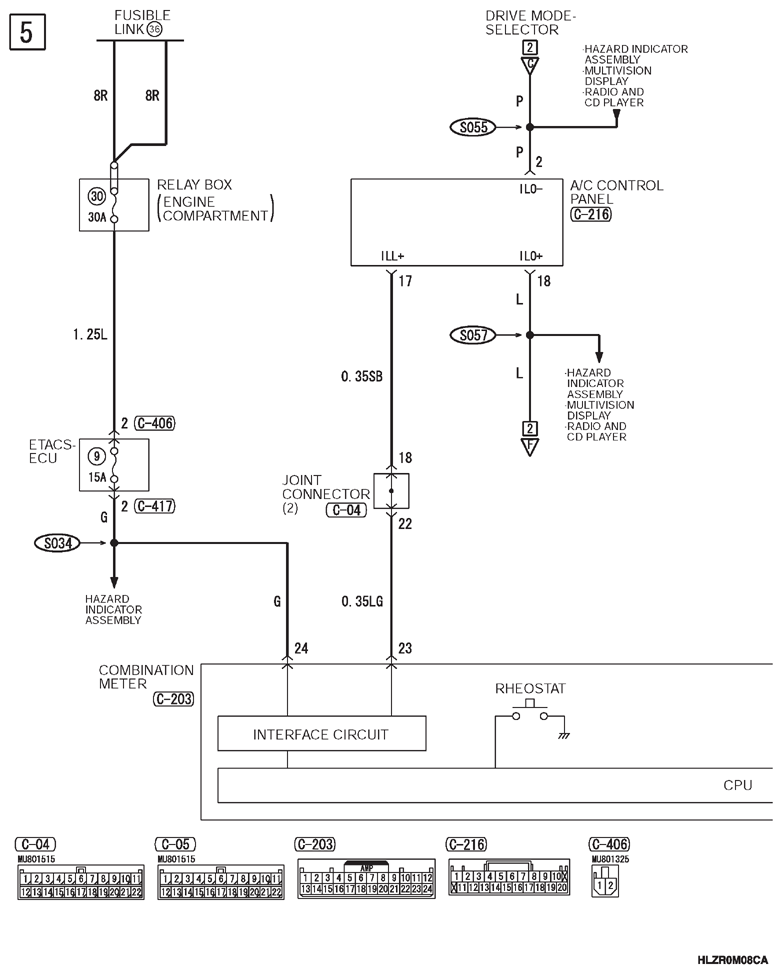

G13346357Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

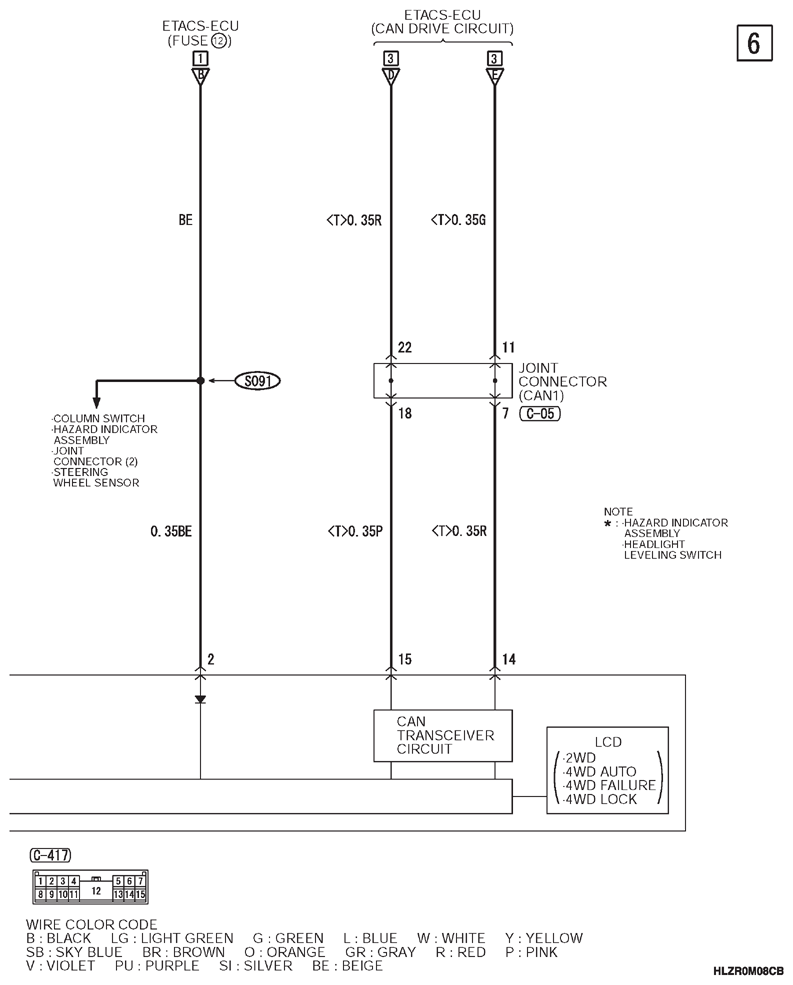

G13346358Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
