Electric Power Steering System

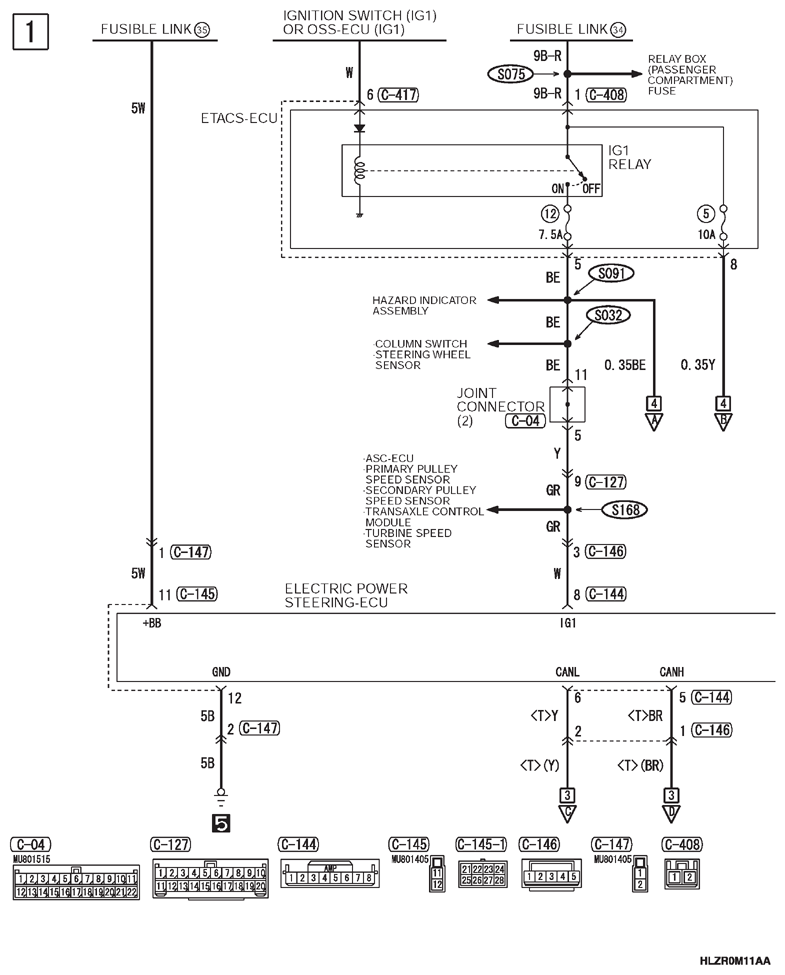

G13346371Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

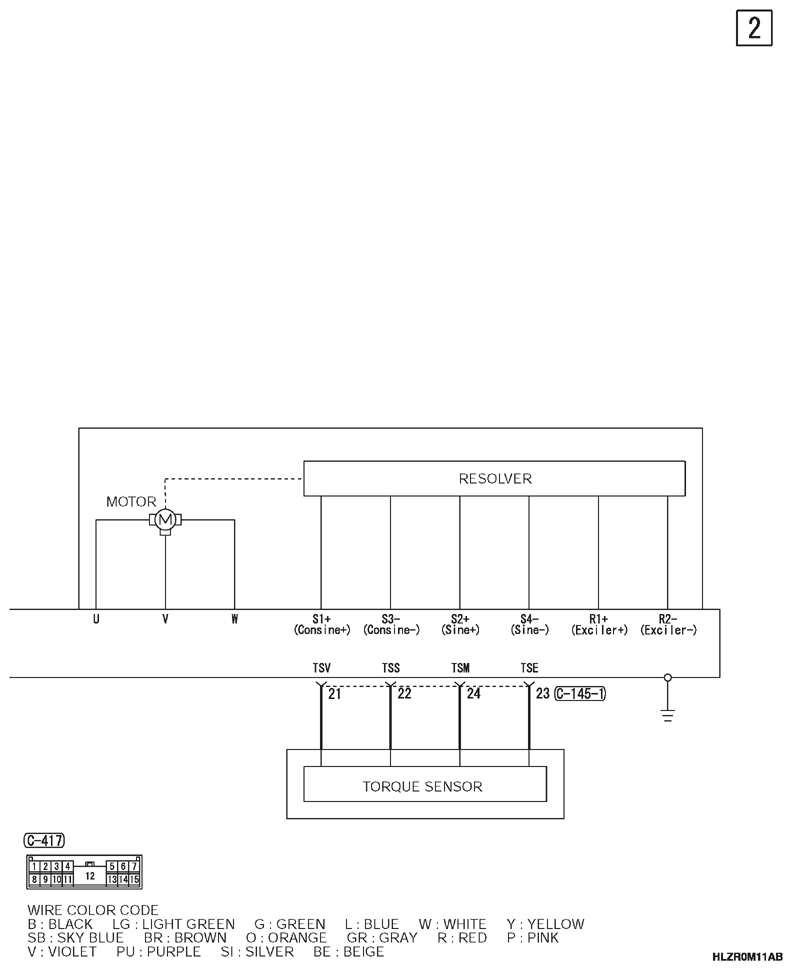

G13346372Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

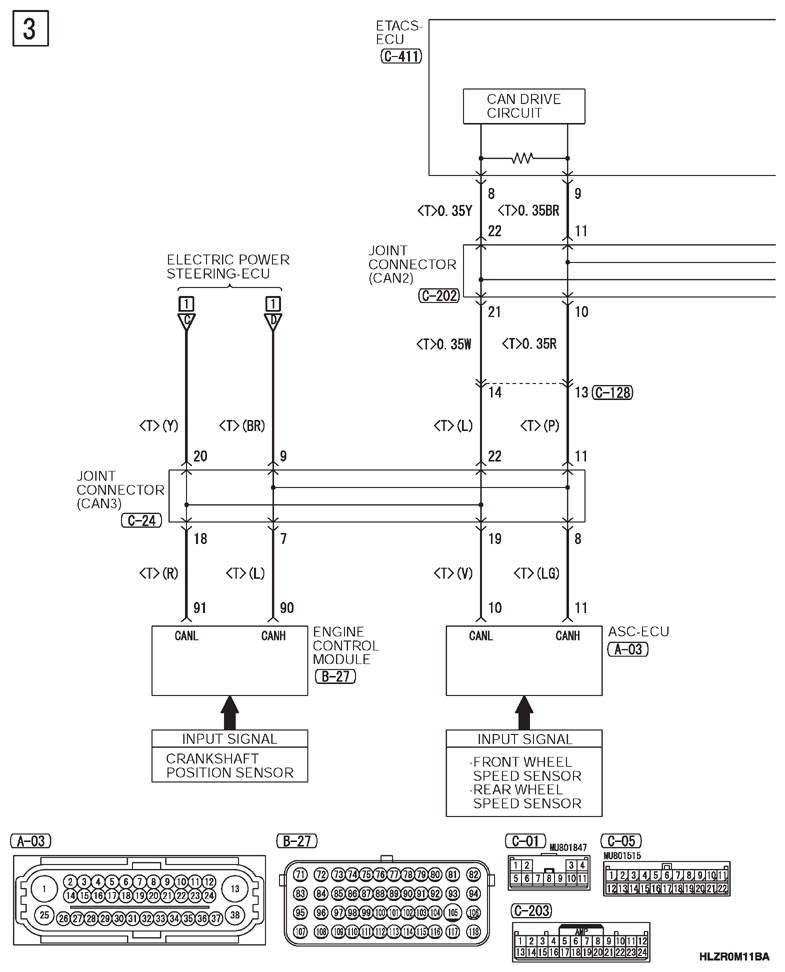

G13346373Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

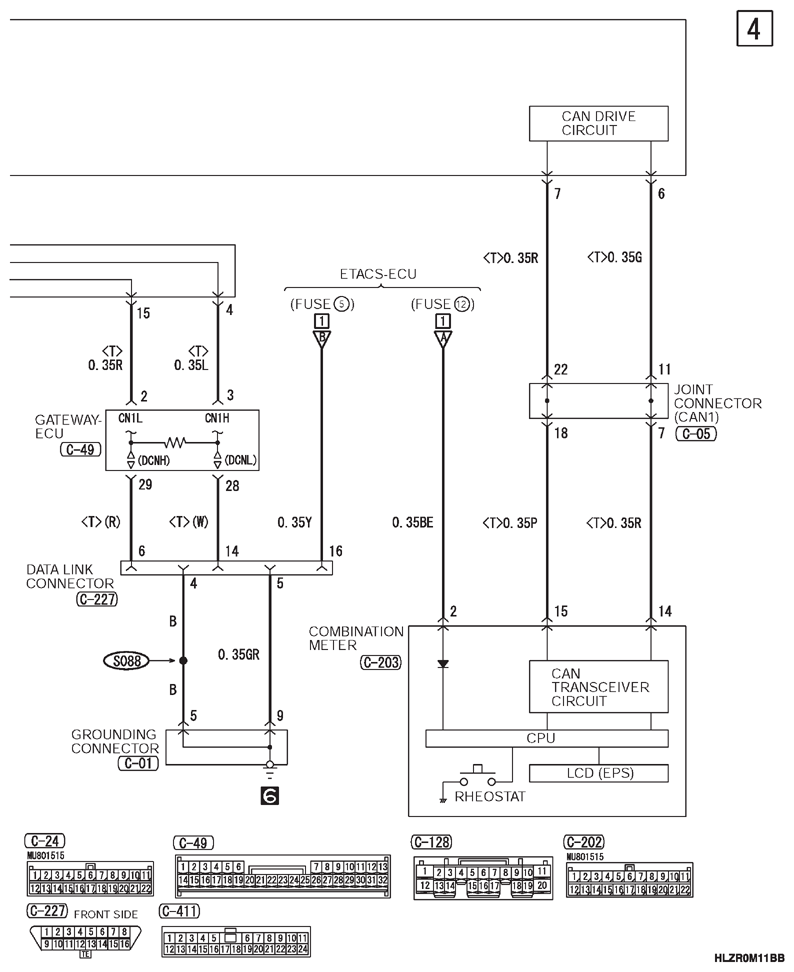

G13346374Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
