Notes
Removal And Installation: Notes
Pre-removal Operation
Engine Coolant Draining (Refer to
ENGINE COOLANT REPLACEMENT
).
Battery and Battery Tray Removal (Refer to
REMOVAL AND INSTALLATION
).
Air Cleaner Assembly Removal (Refer to
AIR CLEANER
).
Oil Filler Tube Assembly Removal (Refer to
TRANSAXLE ASSEMBLY
).
Post-installation Operation
Oil Filler Tube Assembly Installation (Refer to
TRANSAXLE ASSEMBLY
).
Air Cleaner Assembly Installation (Refer to
AIR CLEANER
).
Battery and Battery Tray Installation (Refer to
REMOVAL AND INSTALLATION
).
Engine Coolant Refilling (Refer to
ENGINE COOLANT REPLACEMENT
).

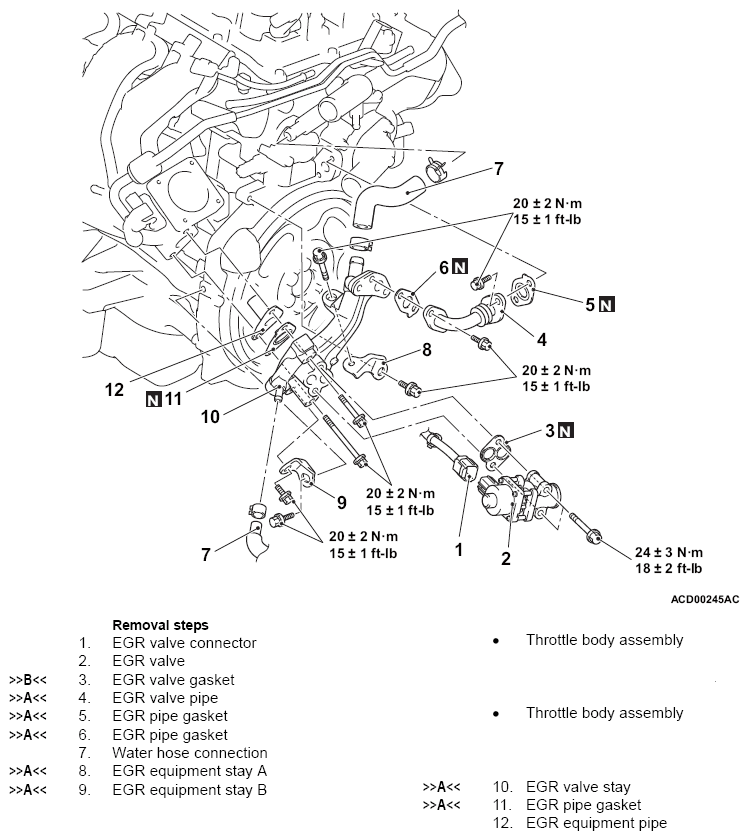

Fig 1: Removing/Installing Exhaust Gas Recirculation System Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
