Removal And Installation
CAUTION:
Whenever you removal the windshield, calibrate its sensor (Refer to
CHECK AT ECU TERMINAL
). <Vehicles with FCM/LDW/AHB>
Pre-removal and post-installation operation
- Front deck garnish removal and installation (Refer to WINDSHIELD WIPER .)
- Front pillar trim removal and installation (Refer to TRIMS .)
- Inside rear view mirror removal and installation (Refer to INSIDE REAR VIEW MIRROR )
- Lighting control sensor removal and installation <Vehicles with lighting control sensor> (Refer to HEADLIGHT LEVELING SWITCH REMOVAL AND INSTALLATION .)
- FCM/LDW/AHB-ECU Removal and Installation (Refer to FCM/LDW/AHB-ECU .) <Vehicles with FCM/LDW/AHB>
NOTE:

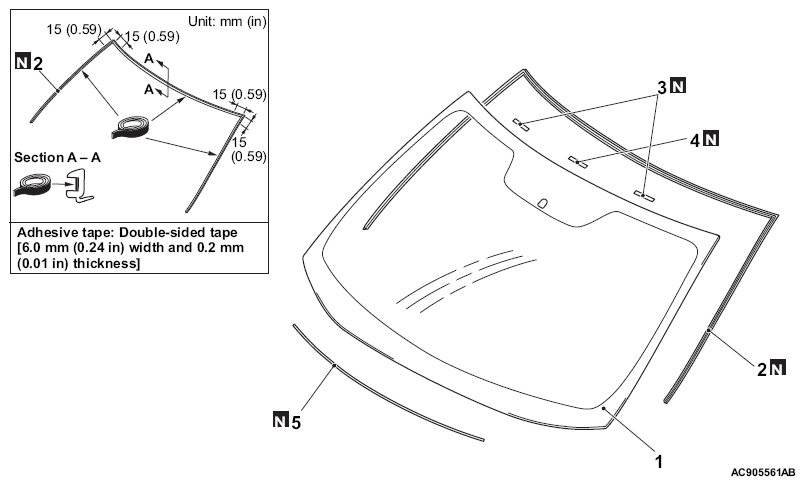

Do not apply double-sided tapes at the upper corner ends of part 2 [15 mm (0.59 in)].
