Removal And Installation: Notes

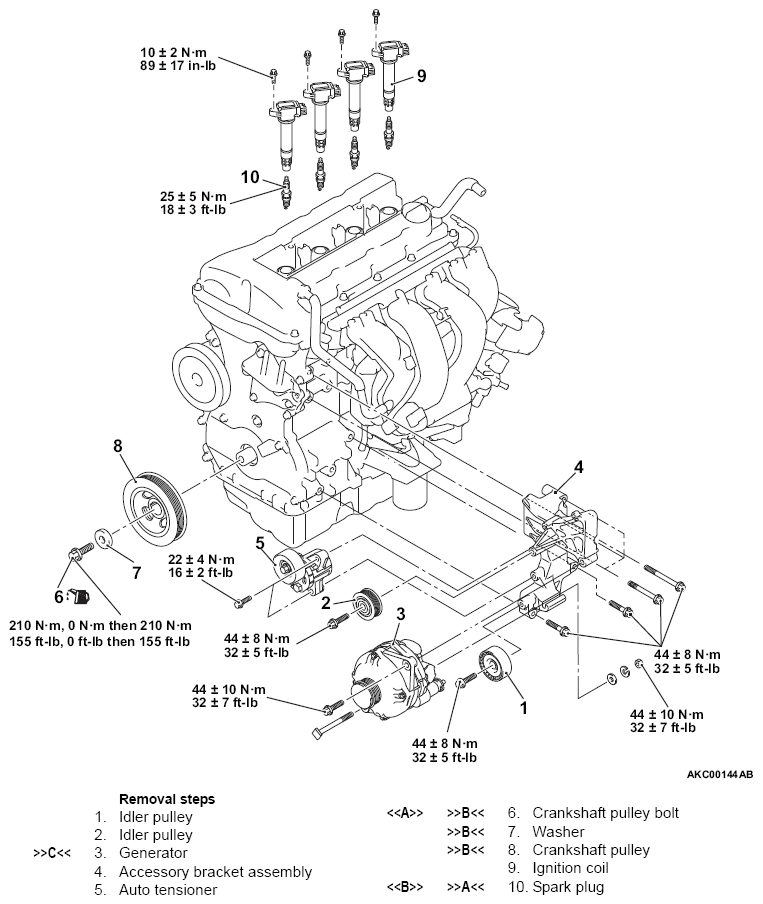

Fig 1: Removing/Installing Generator And Ignition System Components Location With Torque Specification
G14220768Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
