Removal And Installation

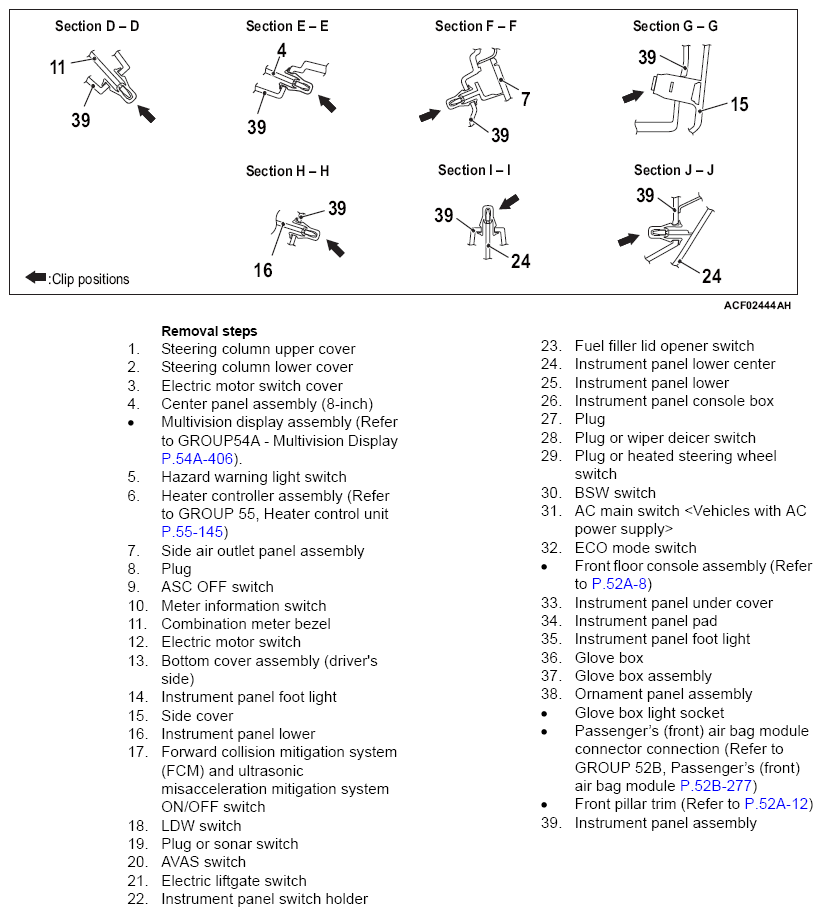

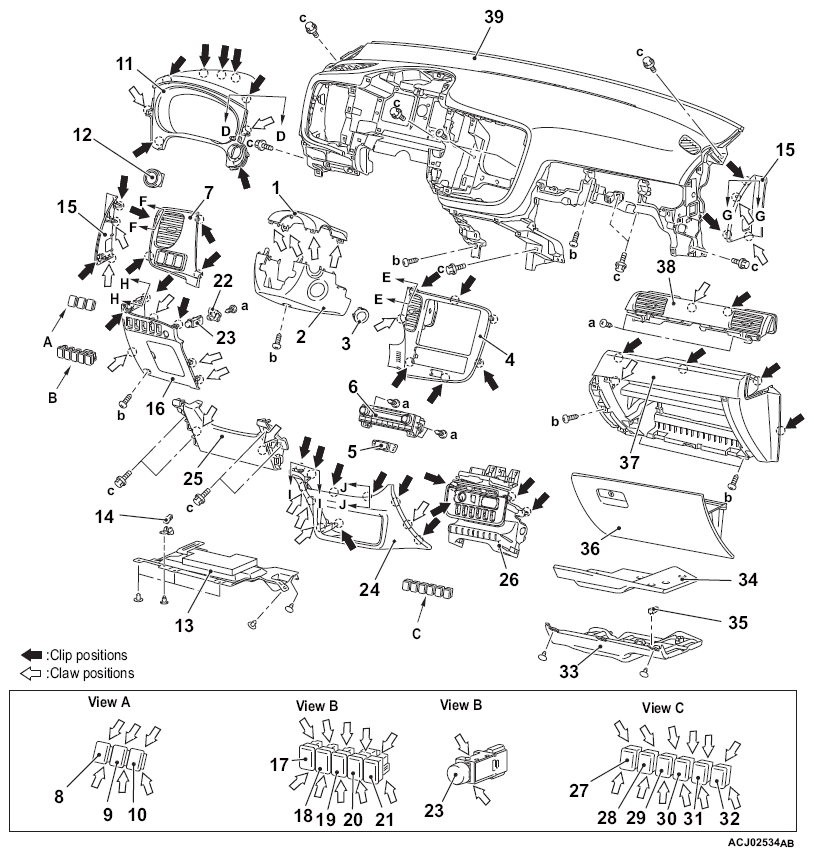

The following bolts and screws are used for installing the instrument panel: The bolts and screws are indicated by symbols in the illustrations in sections "REMOVAL AND INSTALLATION " and "DISASSEMBLY AND ASSEMBLY "

Name	Symbol	Size (D x L) mm	Color	Shape
Tapping screw	a	5 x 14	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Tapping screw	b	5 x 16	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Bolt with washer	c	6 x 16	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

For the removal of the front passenger's air bag module, refer to SERVICE PRECAUTIONS and DRIVER'S AND FRONT PASSENGER'S AIR BAG MODULE, AND CLOCK SPRING before operation.
Do not subject SRS-ECU to any shocks when removing or installing the instrument panel.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
