Steering Wheel Camera Switch Check: Notes

WARNING: This page is about a different car, the 2020 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

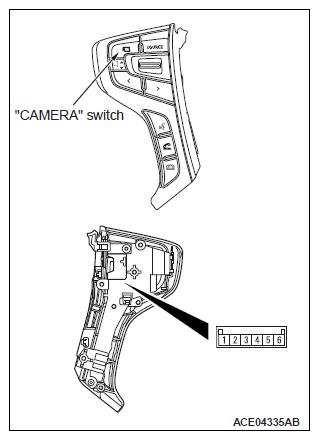

Switch Position Tester Connection Resistance
"CAMERA" switch pushed 1 - 2 Approximately 13.0 KΩ
G12375713Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
