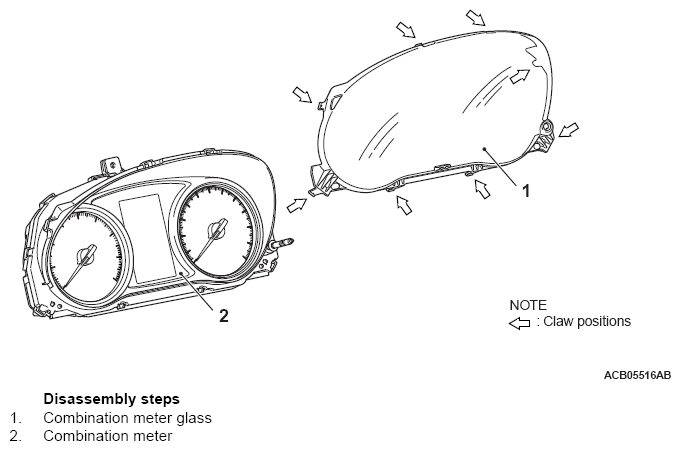

Disassembly And Assembly

WARNING: This page is about a different car, the 2020 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.
G13502916Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
