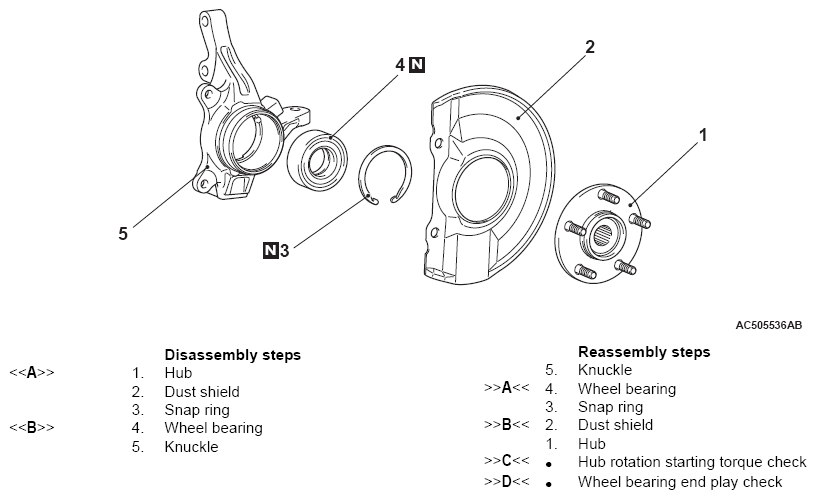

Disassembly And Reassembly: Notes
WARNING: This page is about a different car, the 2020 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.
Required Special Tools:
- MB990326: Preload Socket
- MB990890: Rear Suspension Bushing Base
- MB990935: Installer Adapter
- MB990938: Installer Bar
- MB991000: Spacer
- MB991017: Front Hub Remover and Installer
- MB991099: Oil Seal Installer Guide
- MB991355: Knuckle Arm Bridge
- MB991388: Bush Remover Base
- MB991576: Base
- MB992150: Oil Seal Installer
- MB992250: Knuckle Arm Bridge Attachment
- MD999528: Adapter
- MD998801: Remover
- MD998812: Installer Cap
- MD998813: Installer
