Transaxle Fluid Check

  1. Remove the rear differential support weight B.
    G12372025Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

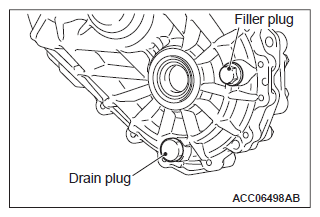

  2. Remove the filler plug and gasket.
    G12372026Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Check that the fluid level is just below the lower edge of the filler plug hole.
  4. Check that the fluid is not excessively foul and has moderate viscosity.
  5. If the level is below the filler plug hole, add the specified fluid up to the end of the filler plug hole.

    Brand name:

    MITSUBISHI MOTORS GENUINE ATF SP III

    G12372024Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  6. Install the filler plug and new gasket, and tighten to the specified torque.

    Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)

  7. Install the rear differential support weight B.
    Fig 1: Rear Differential Support Weight B Bolts With Torque Specification
    G12372028Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
