Transaxle Fluid Change

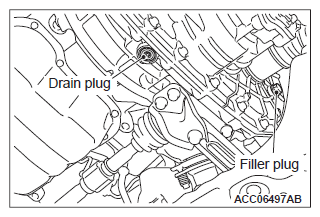

  1. Remove the drain plug and gasket, to drain the fluid.
  2. Install the drain plug and new gasket, and tighten to the specified torque.

    Tightening torque: 35 ± 4 N.m (26 ± 2 ft-lb)

    G12372023Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Remove the filler plug and gasket, and fill the fluid up to the lower edge of the filler plug hole.

    Brand name:

    MITSUBISHI MOTORS GENUINE ATF SP III

    Quantity: Approximately 3.1 dm 3  (3.28 qt)

    G12372024Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    NOTE:
    1. If the front transaxle assembly or the valve body assembly is replaced, refill the fluid and then install the filler plug with the gasket.

      Quantity: Approximately 3.1 dm3 (3.28 qt)

    2. Drive the vehicle at 40 km/h for at least five minutes, and then refill the fluid up to the lower edge of the filler plug hole.

      Quantity: Addition of approximately 0.4 dm3 (0.42 qt)

  4. Install the filler plug and new gasket, and tighten to the specified torque.

    Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)
