Proportional Valve Check

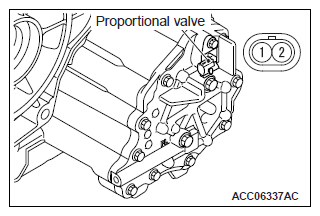

  1. Measure the resistance between proportional valve connector terminals 1 and 2.

    Standard value: Approximately 5.3 Ω

  2. If not within the standard value, replace the valve body assembly.
    G12376450Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
