Removal And Installation: Notes

CAUTION:
  • This operation can be carried out only at a "Rebuild program" authorized workshop.
  • It is not permitted to disassemble at the EV charger cable (quick charging) at the other workshops.

If you replace an inlet cap component at the other workshops, you must replace the EV charger cable (quick charging) as an assembly.

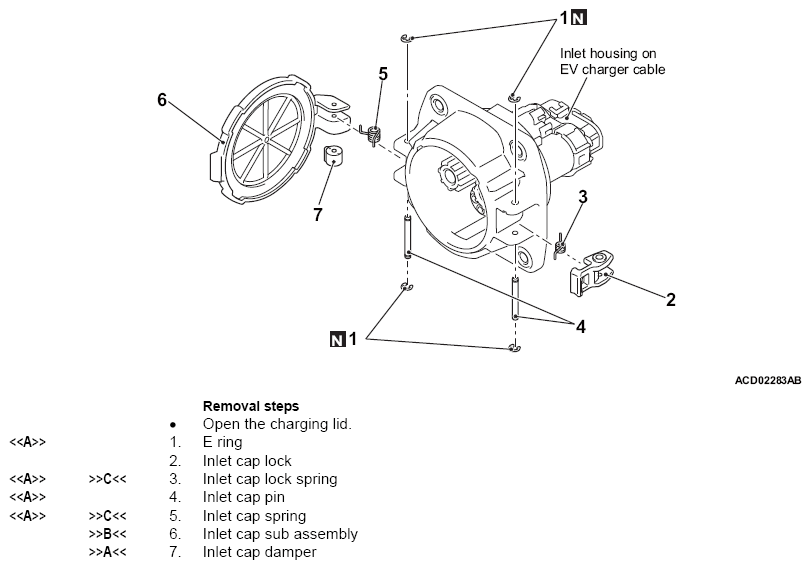

G13784946Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
