Home >> Mitsubishi >> 2021 >> Mirage SE >> Repair and Diagnosis >> Steering >> Electric Power Steering (EPS) >> Steering Wheel >> Removal And Installation >> Notes

Removal And Installation: Notes

CAUTION: Before removing the steering wheel and driver's air bag module assembly, refer to SERVICE PRECAUTIONS and REMOVAL AND INSTALLATION .
Pre-removal Operation
Steering Wheel Straight-ahead Position Check		 Post-installation Operation
  • Steering Wheel Straight-ahead Position Check
  • Steering Wheel Shake Check

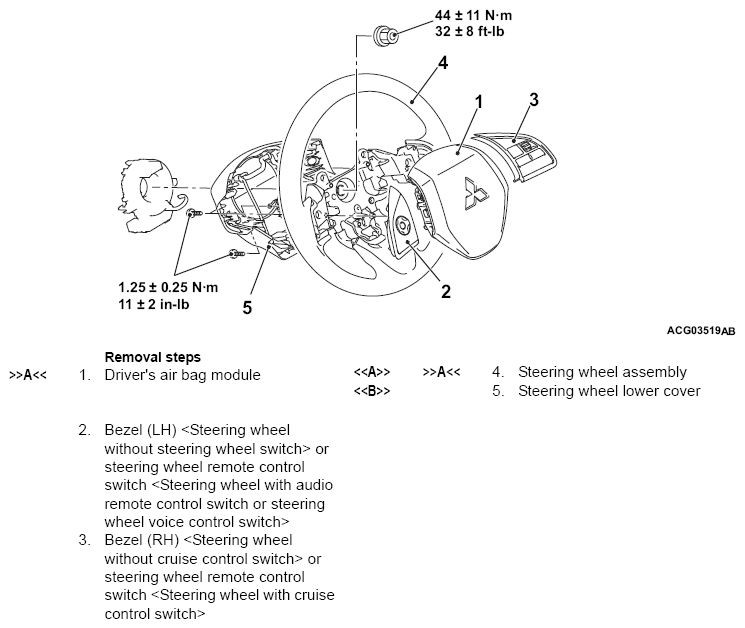

Fig 1: Removing/Installing Steering Wheel Components With Torque Specifications
G13734997Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
