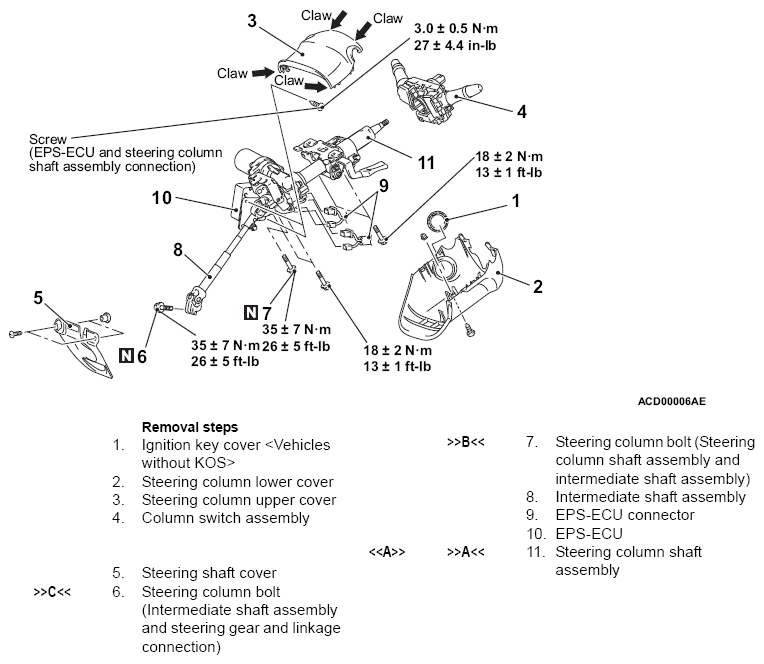

Removal And Installation: Notes
CAUTION:
- Before removing the steering wheel and driver's air bag module assembly, refer to SERVICE PRECAUTIONSREMOVAL AND INSTALLATION .
- Do not reuse the part that has been dropped because its internal components may be faulty even if it has no apparent damage.
- Always keep the steering column shaft assembly away from the matter that generates magnetic force.
- For the steering column shaft assembly, parts cannot be disassembled.
- Be careful when removing and installing the steering column shaft assembly, because it is heavy.
Pre-removal Operation
|
Post-installation Operation
|
