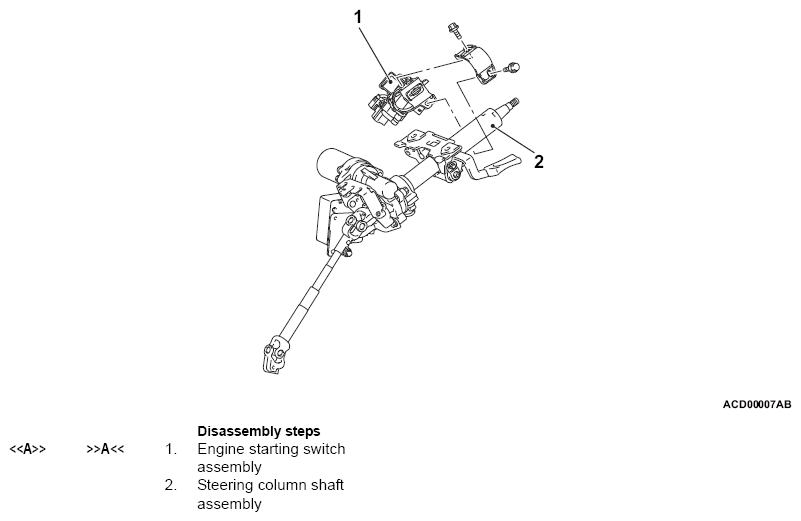

Disassembly And Assembly: Notes

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE:

When the engine starting switch assembly is supplied, the steering lock bracket is assembled to the engine starting switch assembly and the steering lock bolt head (upper) is broken off.
For removal and installation of key reminder switch/key ring antenna and ignition switch, Refer to REMOVAL AND INSTALLATION .
