Home >> Mitsubishi >> 2021 >> Mirage SE >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> Circuit Diagrams W/ Connector End Views >> Stoplight

Circuit Diagrams W/ Connector End Views: Stoplight

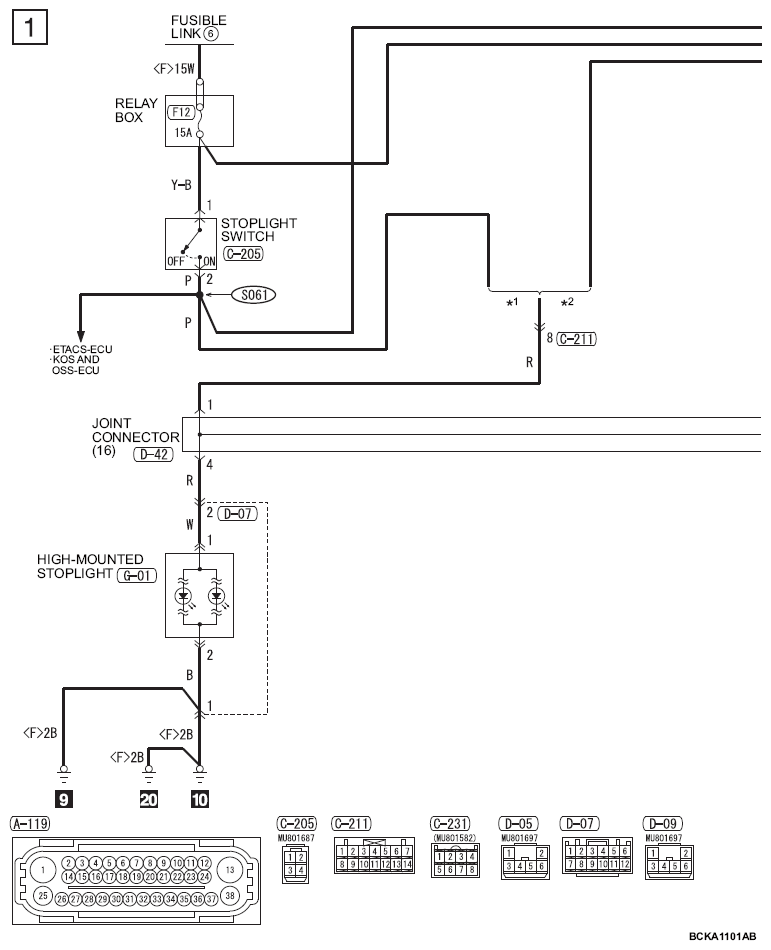

G13751947Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

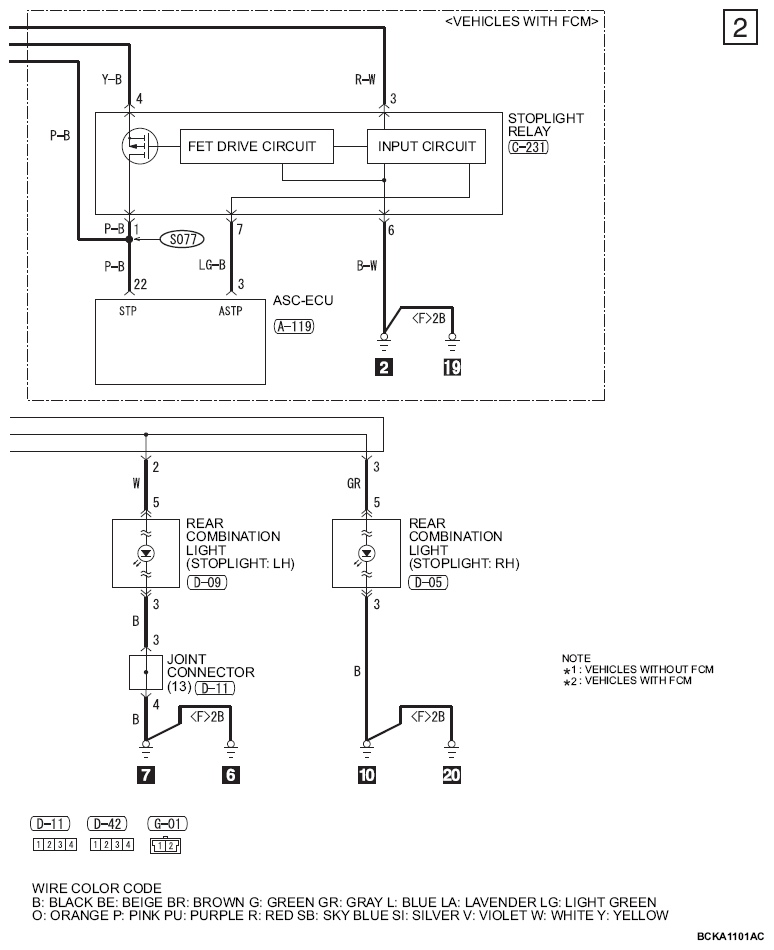

G13751948Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
