Home >> Mitsubishi >> 2021 >> Mirage SE >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> Circuit Diagrams W/ Connector End Views >> Smartphone Link Display Audio System

Smartphone Link Display Audio System

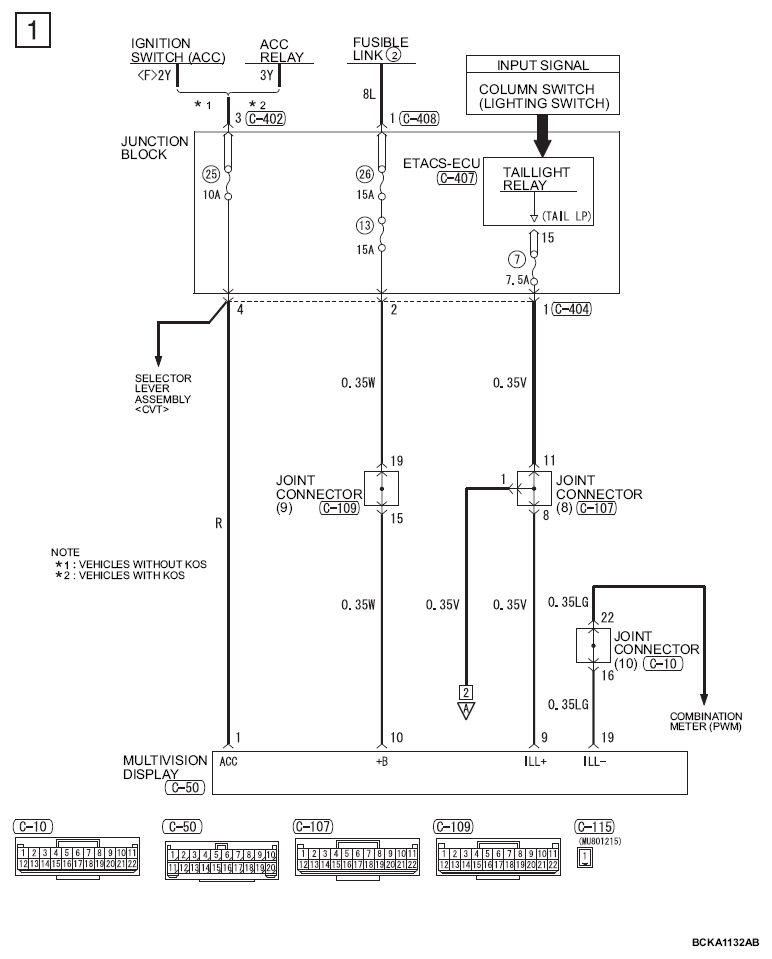

G13117161Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

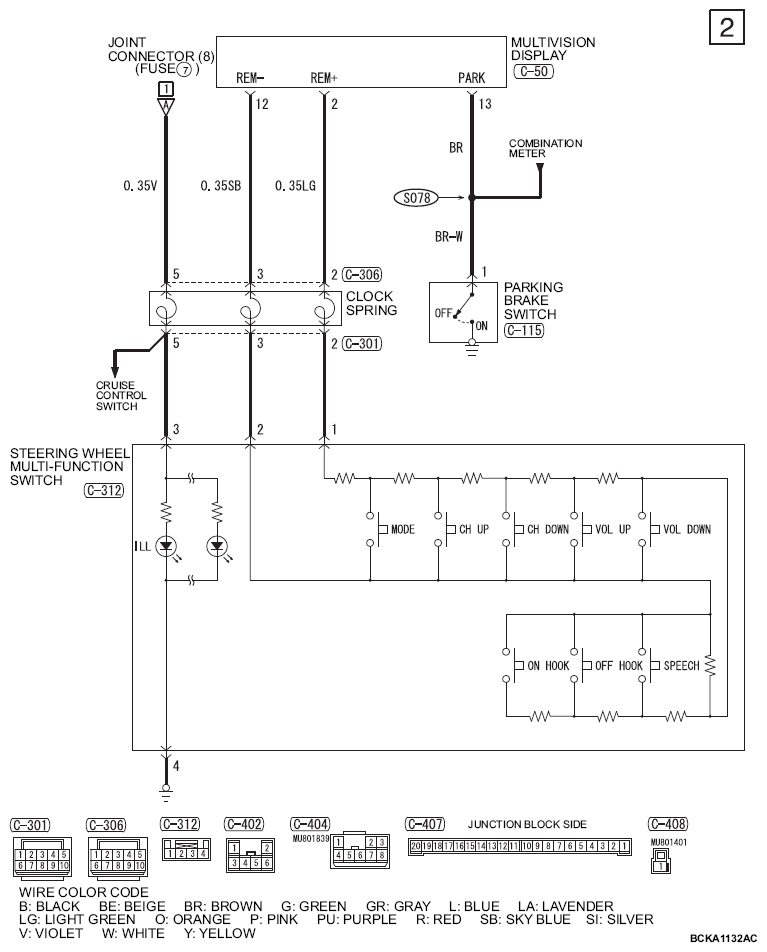

G13117162Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

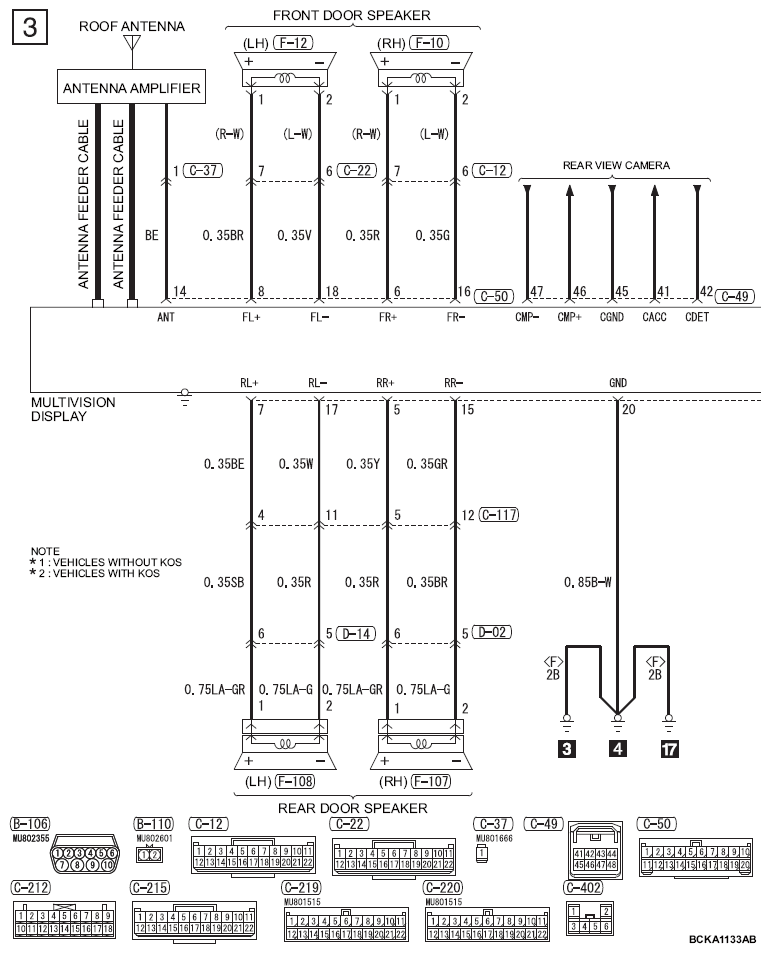

G13117163Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

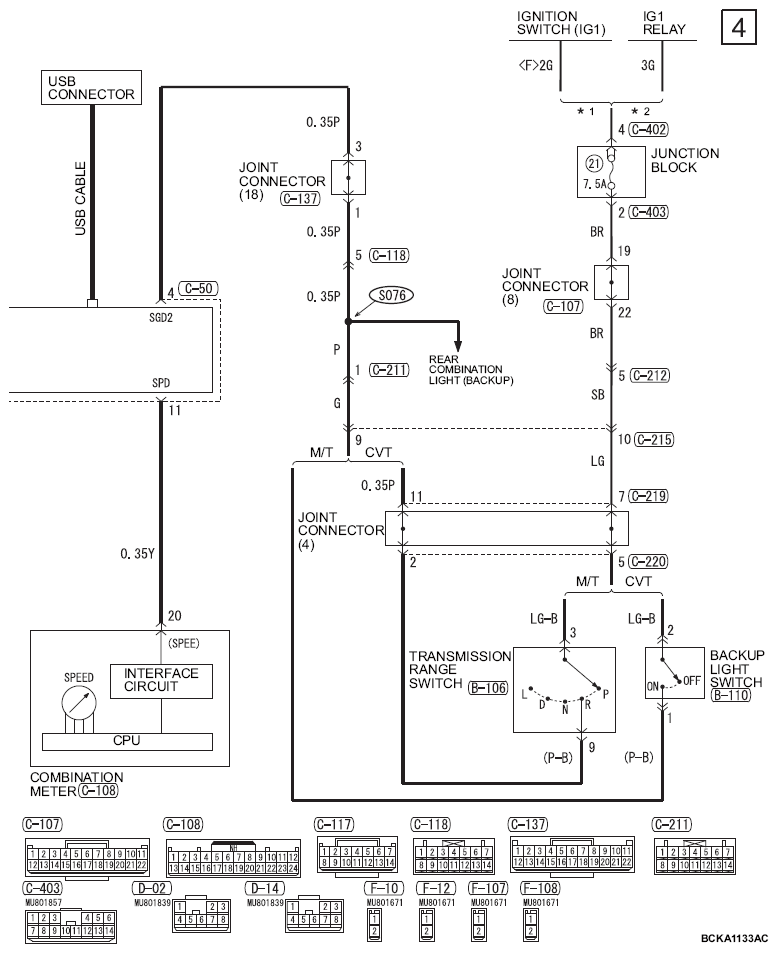

G13117164Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

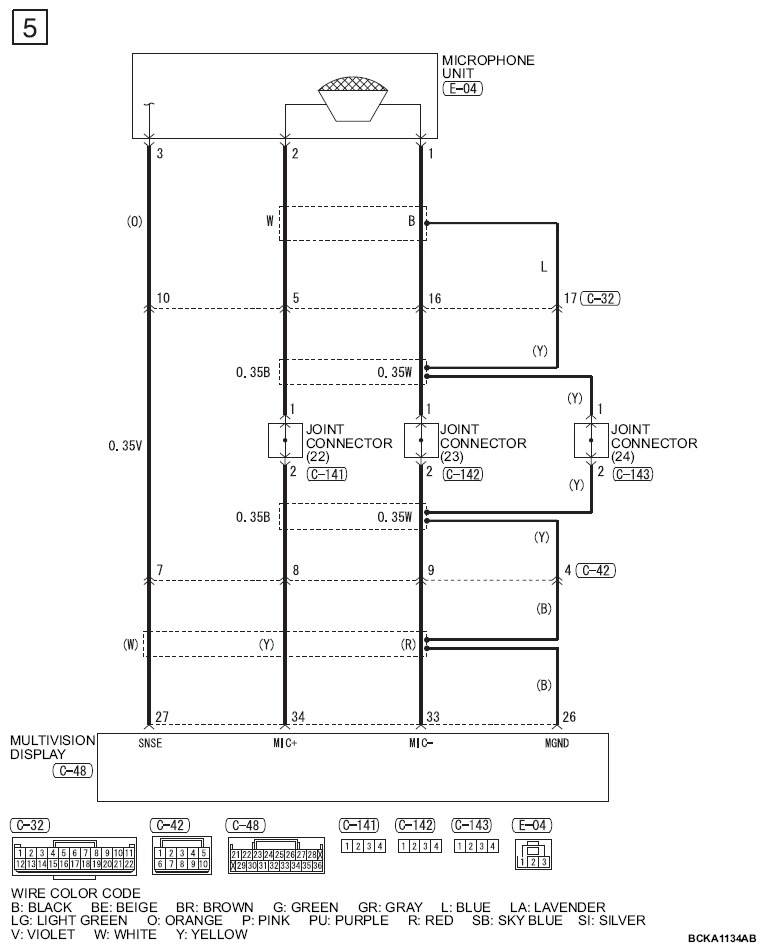

G13752002Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
