Circuit Diagrams W/ Connector End Views: Headlight

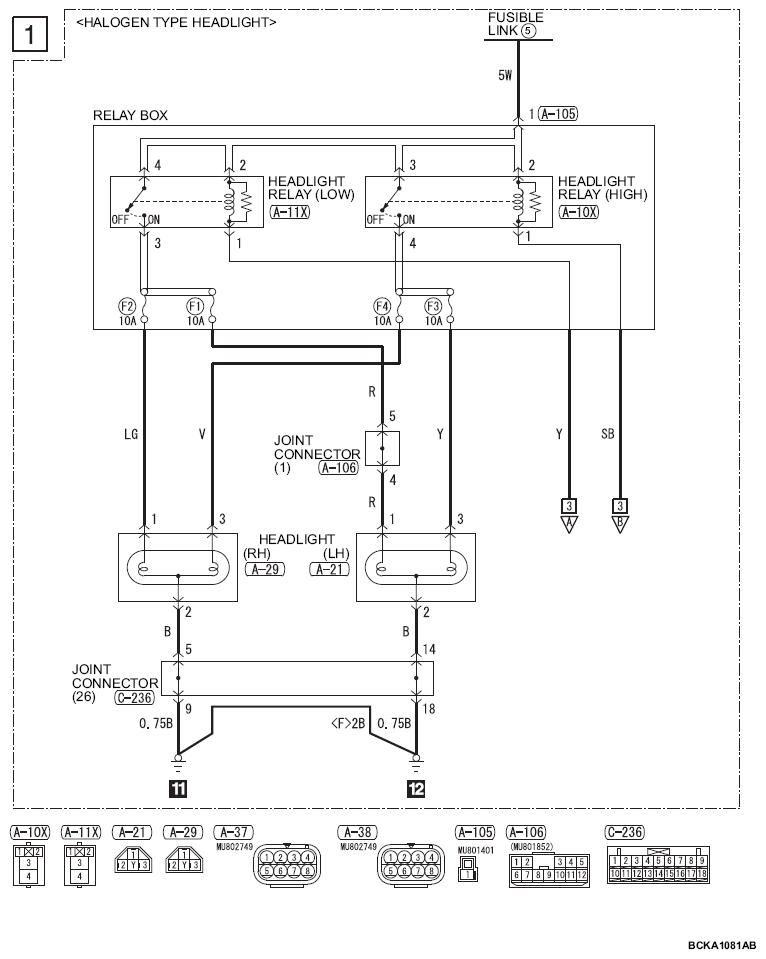

G13751911Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

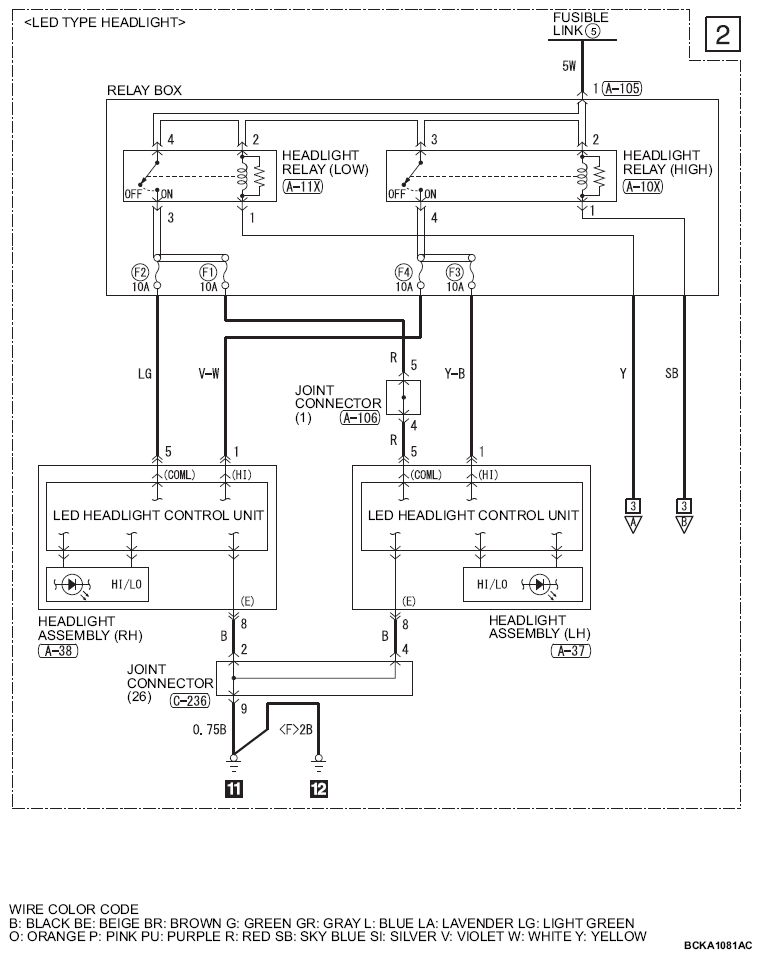

G13751912Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

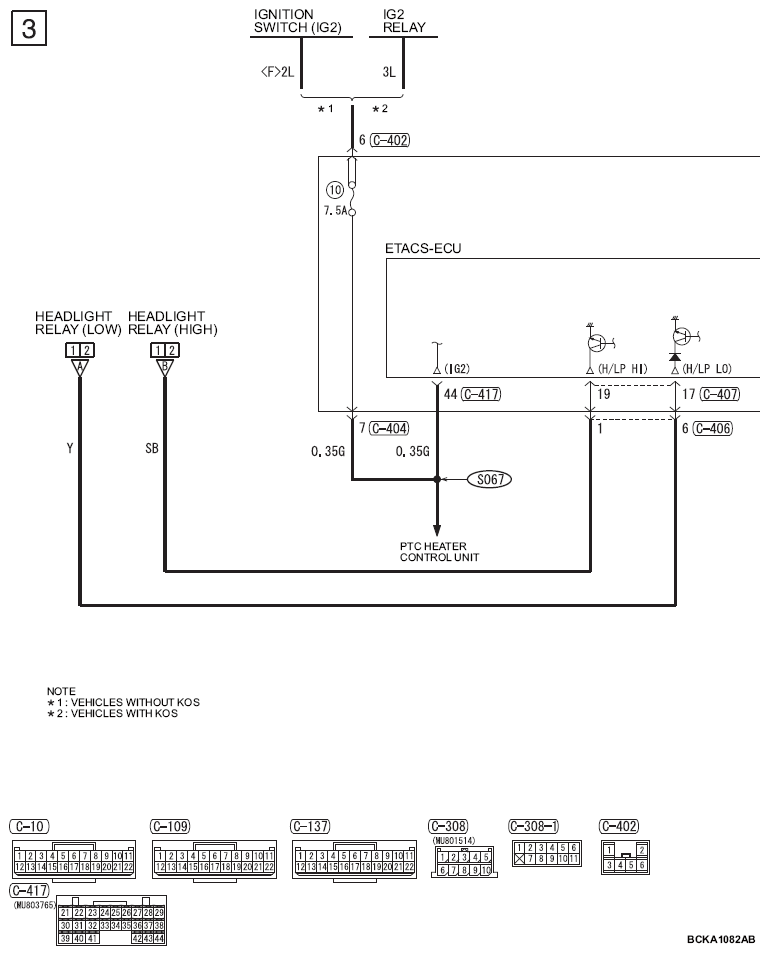

G13751913Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

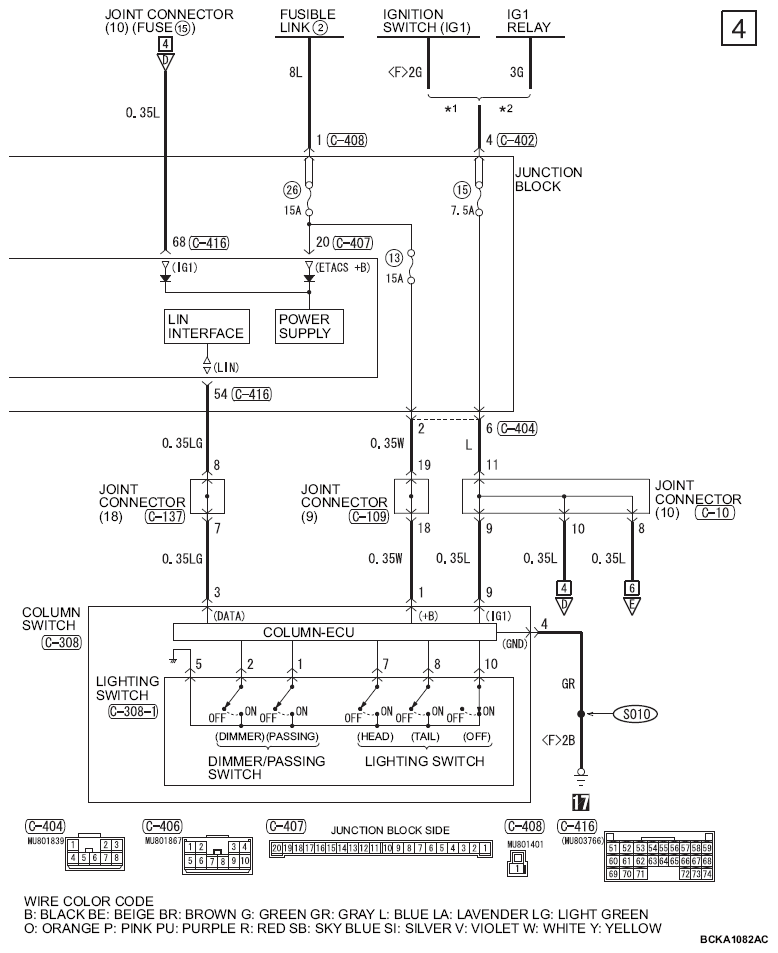

G13751914Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

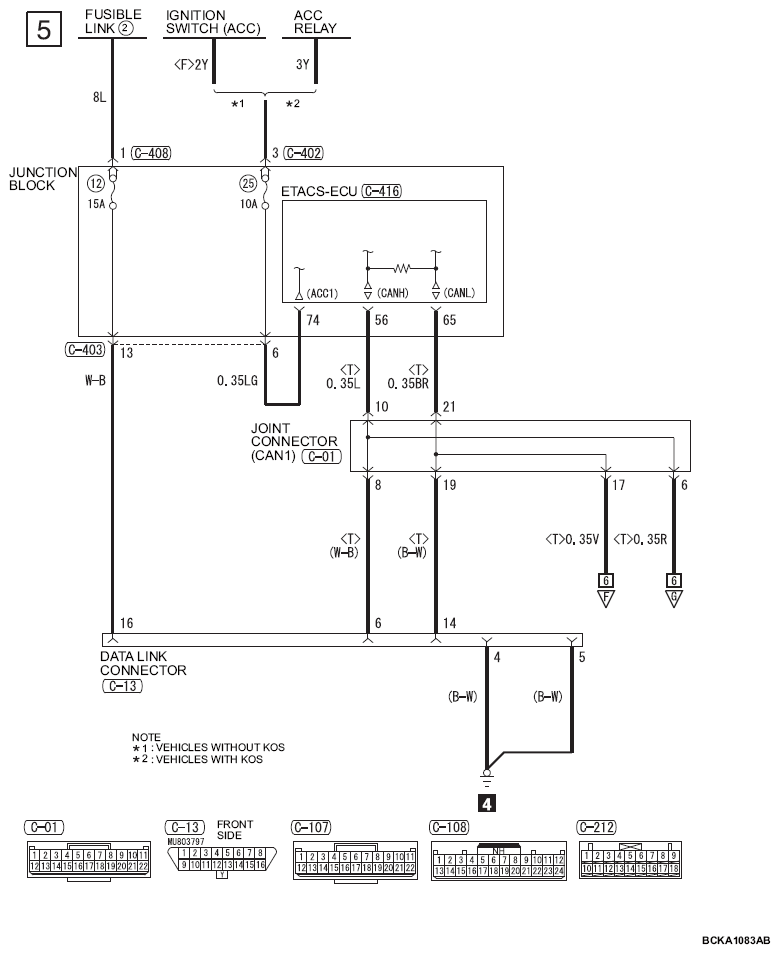

G13751915Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

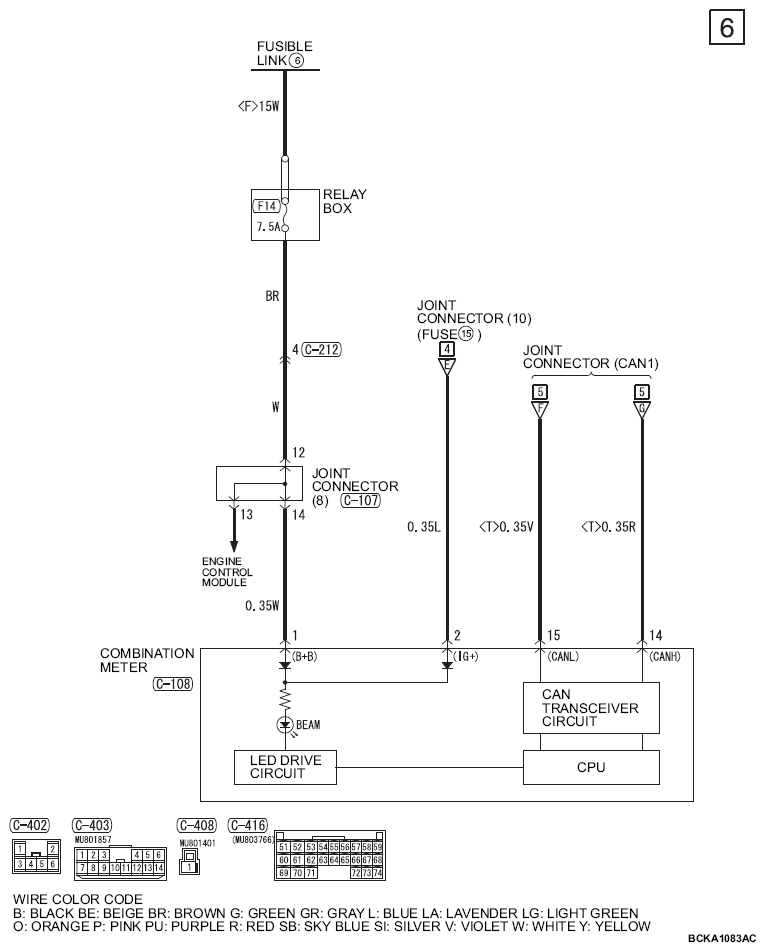

G13751916Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
