Cruise Control System

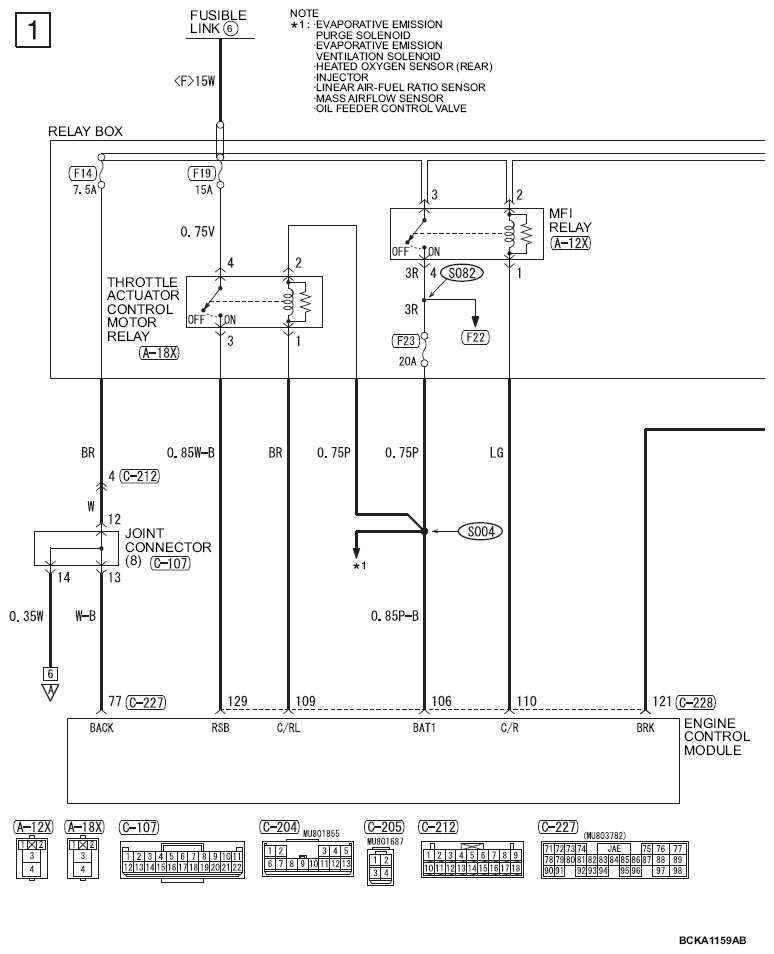

G13752044Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

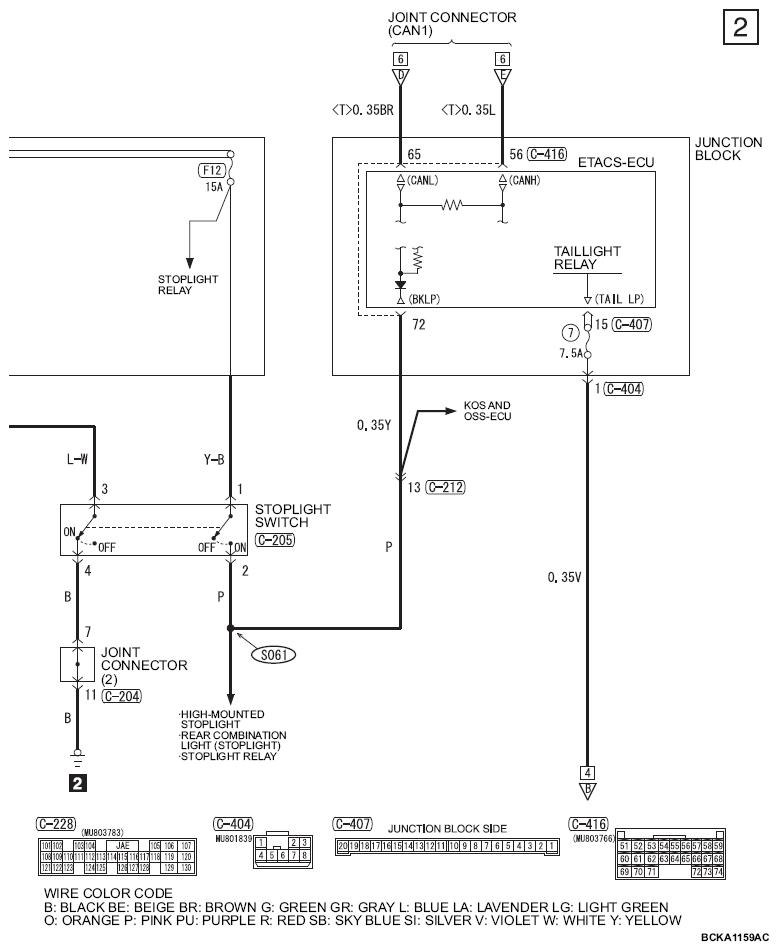

G13752045Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

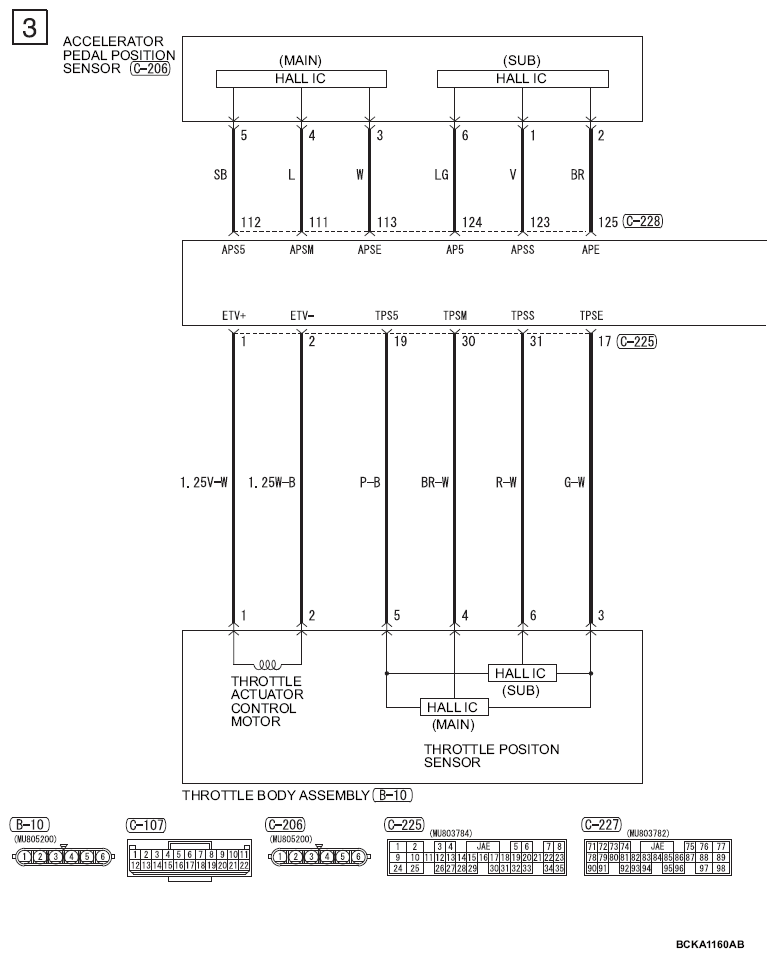

G13752046Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

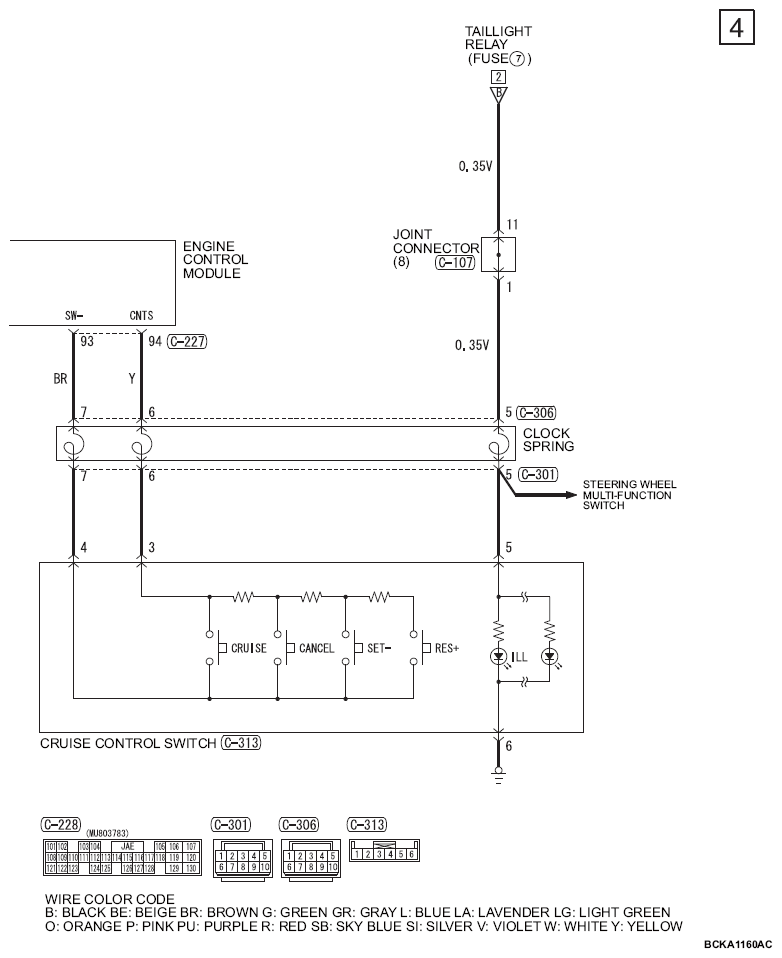

G13752047Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

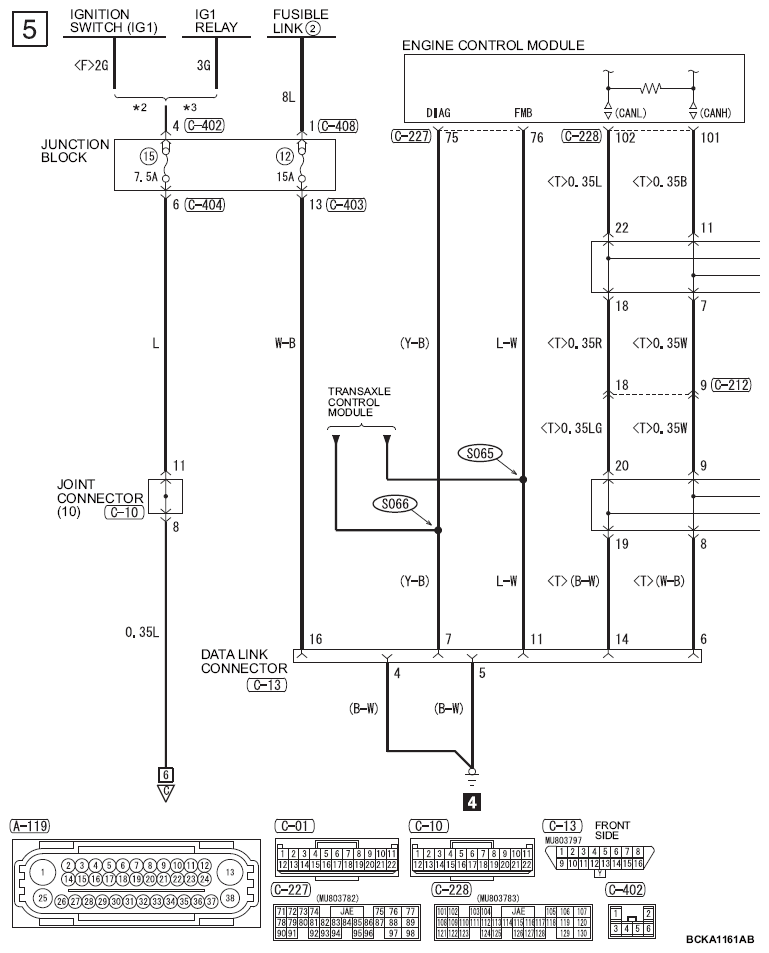

G13752048Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

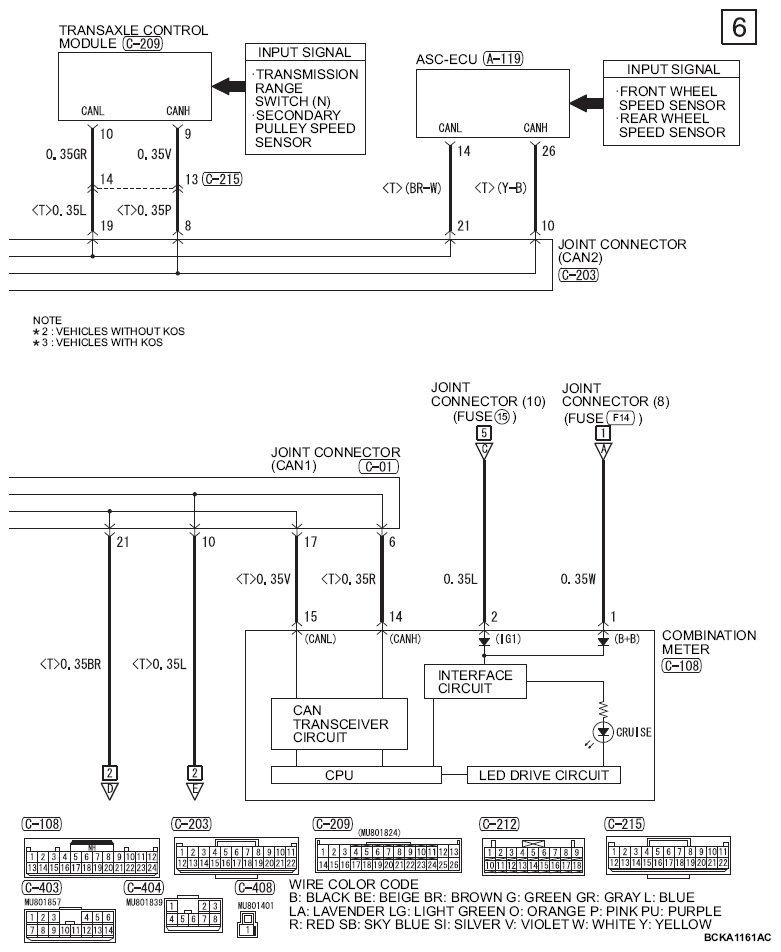

G13752049Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
