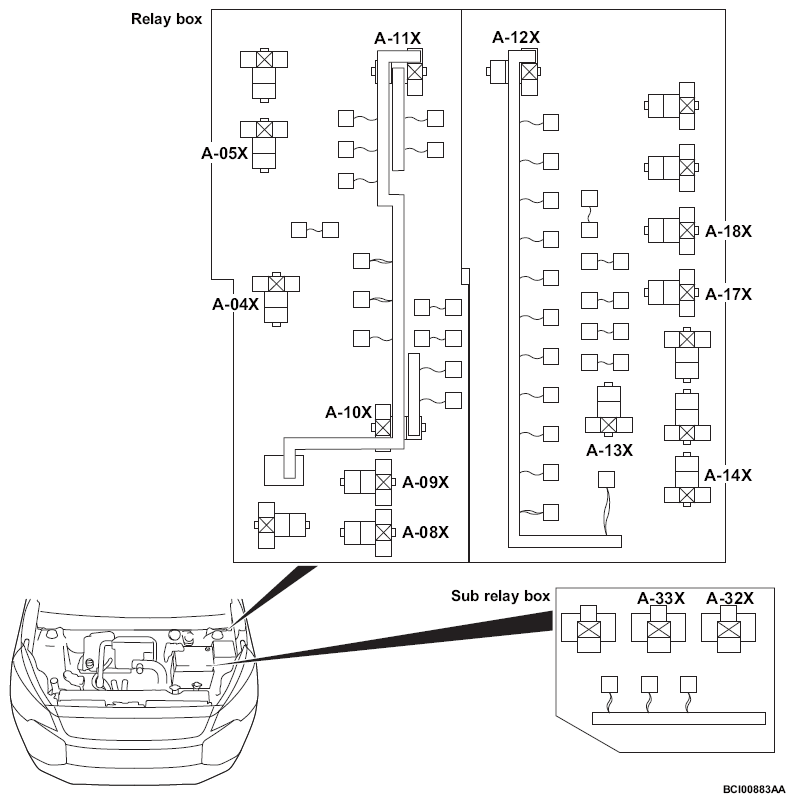

Centralized Relay
| Connector No. | Name | Connector No. | Name |
|---|---|---|---|
| A-04X | Horn relay | A-13X | Power window relay |
| A-05X | Cooling fan control relay | A-14X | Starter relay |
| A-08X | Fog light relay | A-17X | A/C compressor relay |
| A-09X | Daytime running light relay | A-18X | Throttle actuator control motor relay |
| A-10X | Headlight relay (High) | A-32X | PTC heater relay 1 |
| A-11X | Headlight relay (Low) | A-33X | PTC heater relay 2 |
| A-12X | MFI relay |
